Elmo 16-CL Optical User Manual

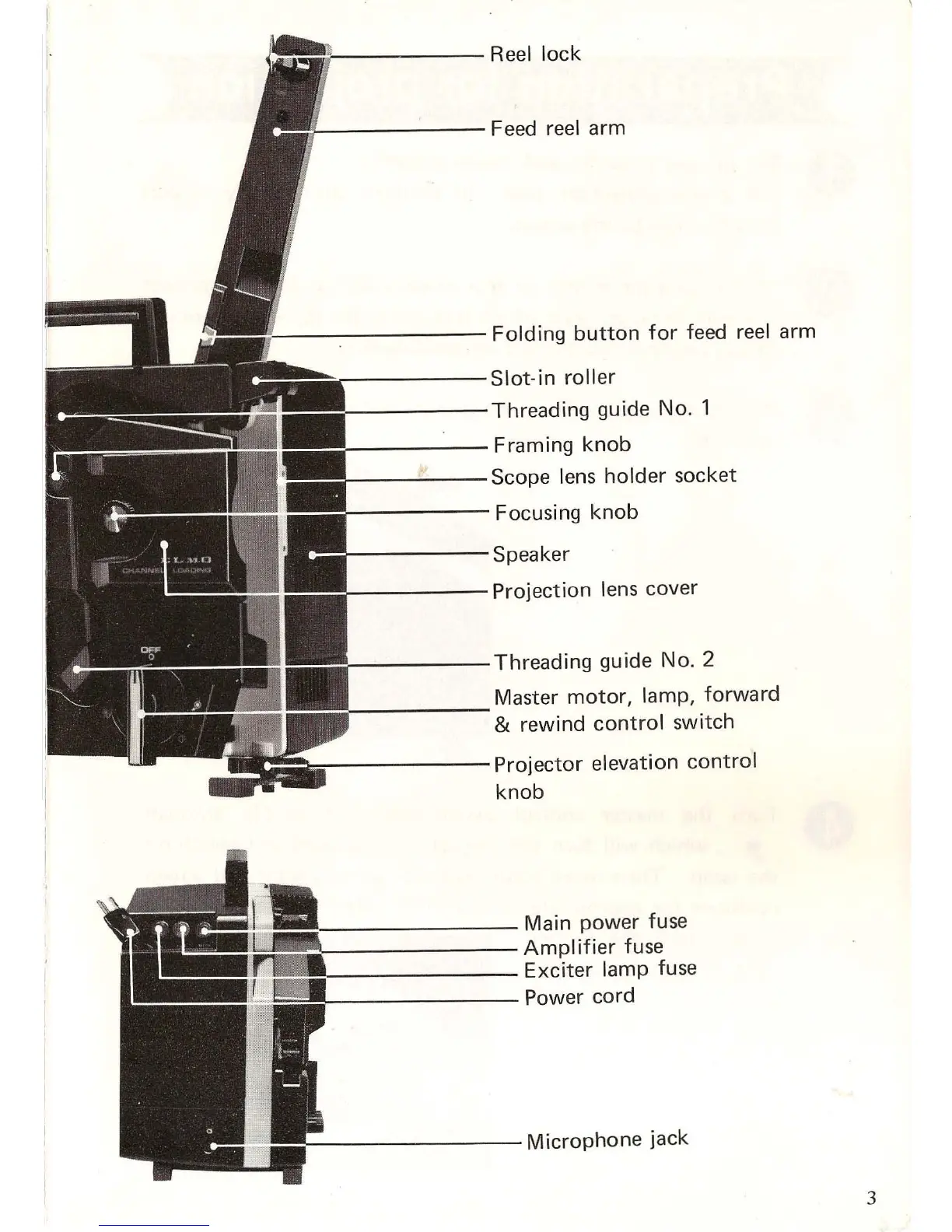

~~!!! ~ ----- Reel lock
'1- ------ Feed reel arm
: --------- Folding button for feed reel arm
,.-------Slot-in roller
------ Threading guide No . 1
------ Framing knob
------Scope lens holder socket
f------- Focusing knob
------ Speaker
------ Projection lens cover
,- ____ Threading guide No.2
f------- Master motor, lamp, forward
& rewind control switch
::------- Projector elevation control
knob
!
1!. Q!i! --------- Main power fuse
,.-- _______ Amplifier fuse
= ~~ _______ Exciter lamp fuse
=~ ________ Power cord
r---------Microphone jack
3

Elmo 16-CL Optical Specifications

General

Brand	Elmo
Model	16-CL Optical
Category	Projector
Language	English
