ELNA 664 - Adjustment of Cutting Width

32

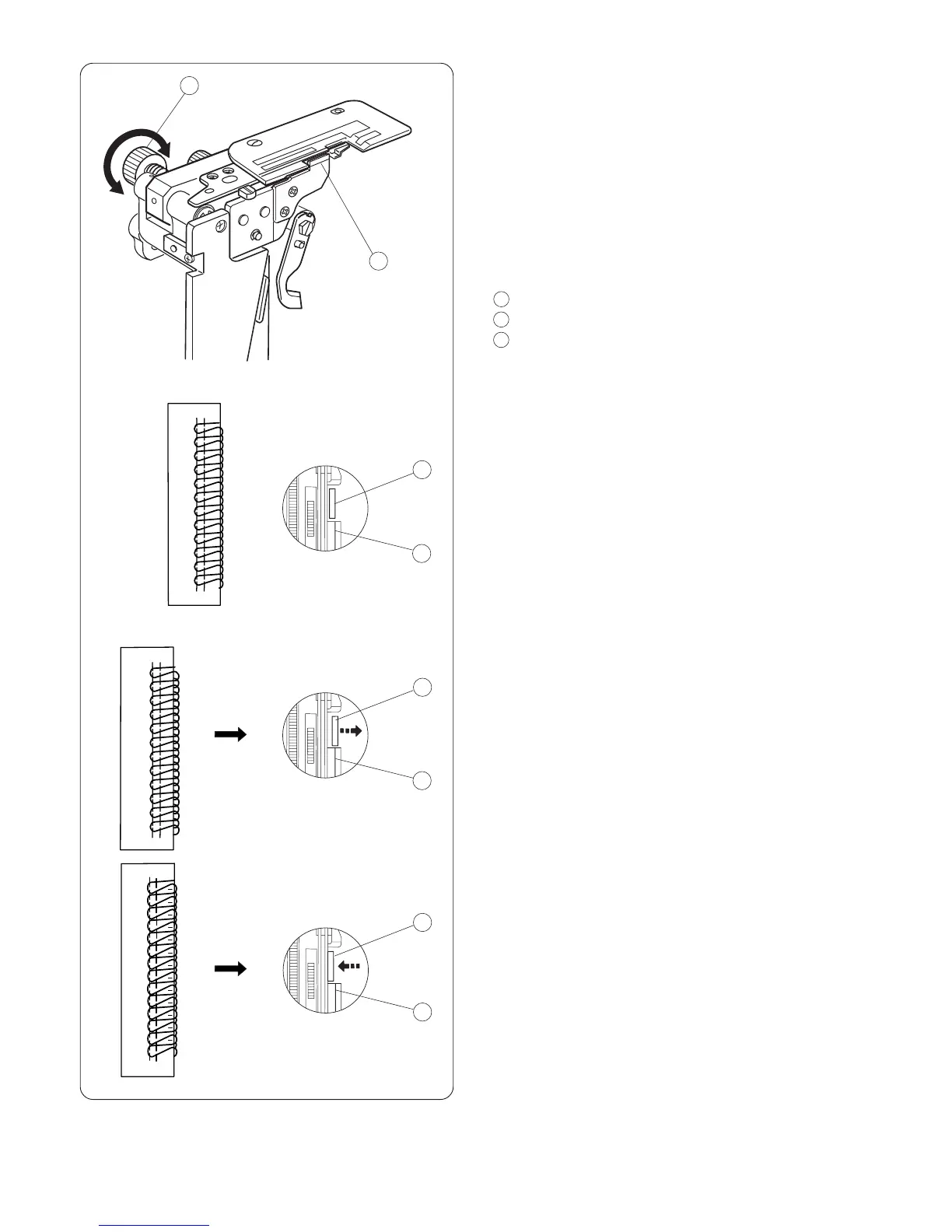

Adjustment of Cutting Width
When cutting width is too narrow or too wide against
seam width, adjust it as follows.
Open the side cover and deactivste the upper knife.
Turn the cutting width adjusting dial to move the
lower knife to the desired position.
* The lower knife position can be set at 3–5 mm
from the right needle position.
Cutting width adjusting dial
Lower knife
Guide line on the needle plate
(A) When cutting width is too narrow.
Turn the cutting width adjusting dial clockwise.
Lower knife will move to right.
(B) When cutting width is too wide.
Turn the cutting width adjusting dial
counterclockwise.
Lower knife will move to left.
Test stitch to check the cutting width.
1
2
2
3
2
3
2
3
1
2
3
(B)
(A)
