ELNA Supermatic - Opening the Front Cover

5


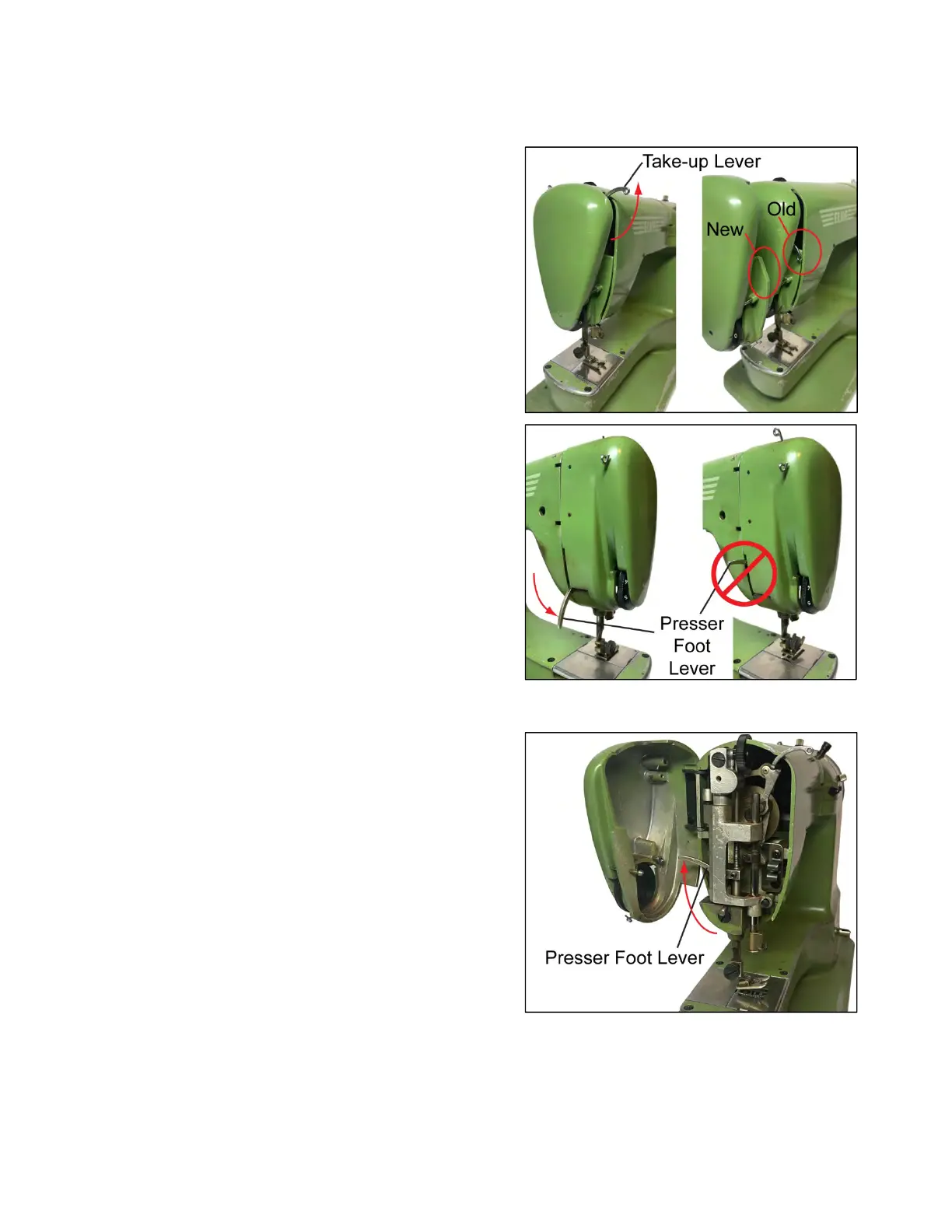

OpeningtheFrontCover
Caution!CaremustbetakenwhenopeningtheFrontCovertoavoiddamagetothemachine.
TurntheFlywheeltowardyouuntiltheTake‐upLeverisin
theraisedposition.
TheTake‐upLeverwillinterferewiththefrontcoveronolder
models.Thecoverwasmodifiedtoremovetheinterference
onlatermodels.
AccordingtotheElnaPartsCatalog,thischangeoccurredon
machineSerialNo.527,626.However,Ifoundanexampleof
anewermachinewithoutthischange.

ThePresserFootLevermustbeinthedownpositionbefore
openingtheFrontCovertoavoidinterference.

ThePresserFootLevermayberaisedaftertheFrontCoveris
openedifnecessary.
RemembertolowerthePresserFootLeveragainbefore
closingtheFrontCover.
Note!Forsomeserviceprocedures,removingtheFront
Covercanprovidebetteraccessandavoiddamagingthe
FrontCoverorhinge.



