ELNA Supermatic - 2. Centering of Needle Bar for Transforma

7

2. Centering of Needle Bar for Transforma
Whentheneedlebariscorrectlycentered,theNeedleGaugeNo.607801orastraightneedlesize90or100
(whenlookedatfromfront)mustbeexactlyinthecenterofthestitchholeintheneedleplate.Ifthis
requirementisnotmet,proceedasfollows:
Removeneedleandpresserfoot.
InsertandfastenaNeedleGaugeNo.607801orastraightneedlesize90or100.

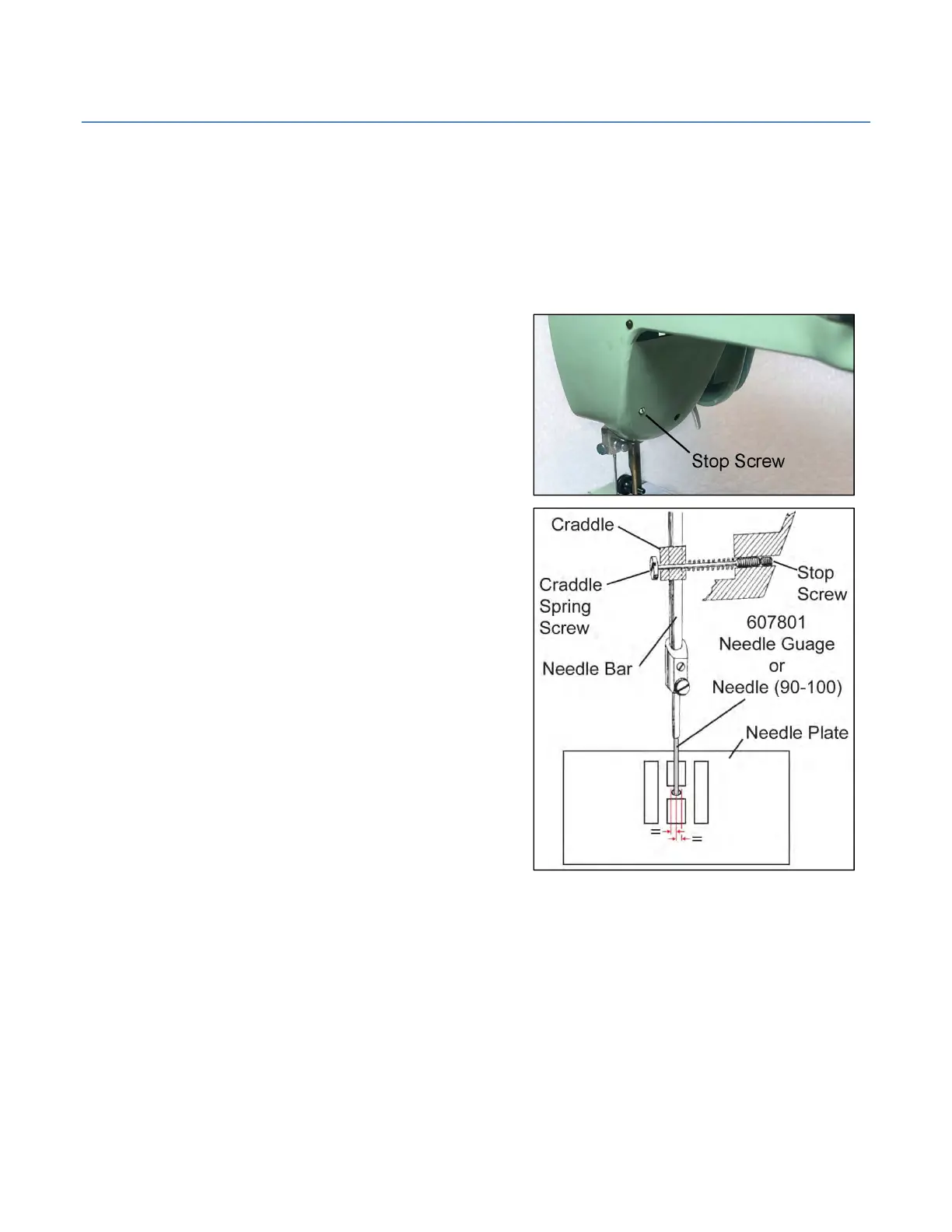

LoosentheStopScrewattherightoftheheadportionofthe
uppercasing.

Openthefrontcover.
TurntheflywheelslowlytowardsyouuntiltheNeedleBaris
initslowestposition.
TurntheCradleSpringScrewclockwiseorcounterclockwise,
toadjusttheNeedleBarsothattheGauge(orNeedle),when
lookedatfromthefront,isexactlyinthecenteroftheholein
theneedleplate.
TightentheStopScrewafteradjustment.



