ELNA Supermatic - 3. Centering of Needle Bar for Zigzag stitch

8


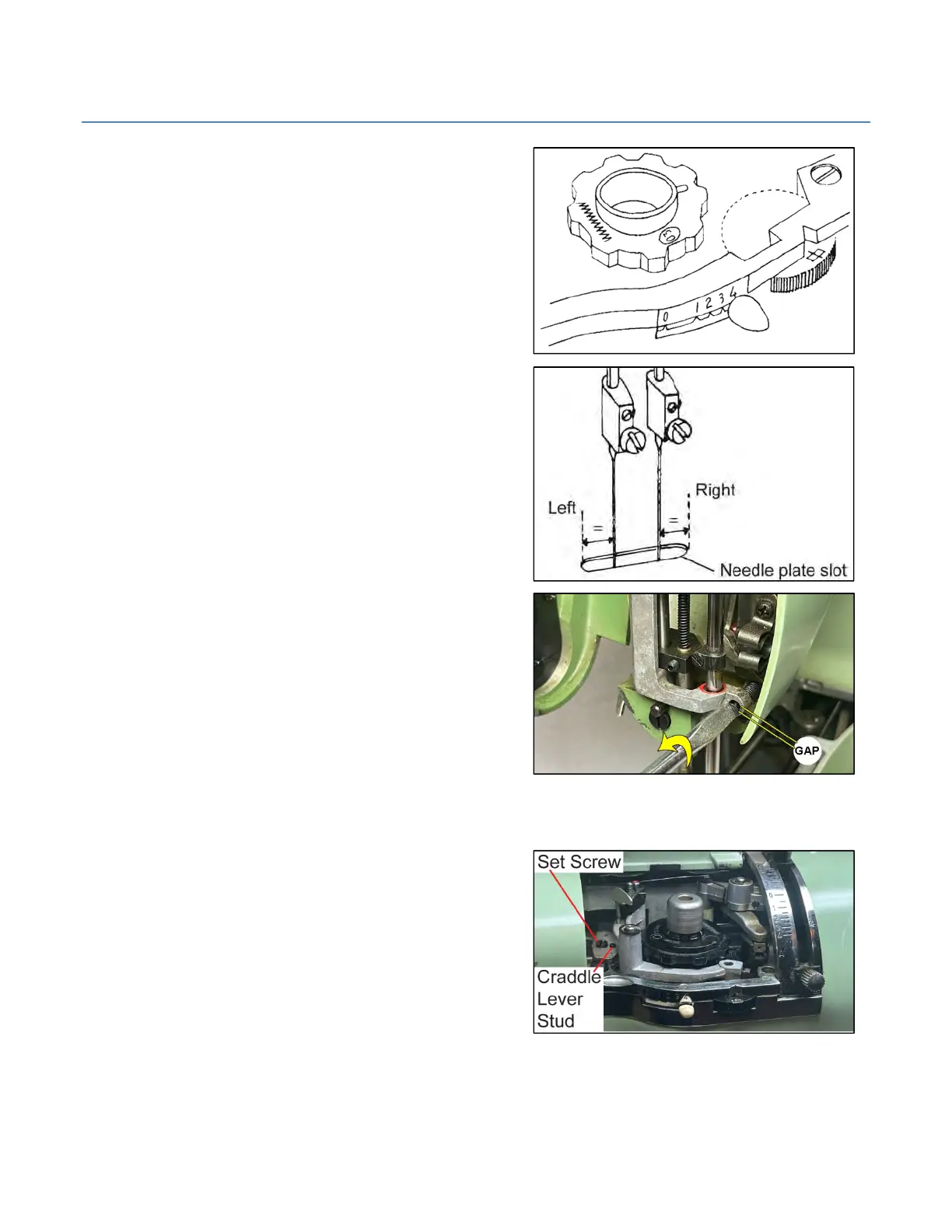

3. Centering of Needle Bar for Zigzag stitch
Removethepresserfoot.
InstallCam"03"(Zigzag)intheELNAGRAPH.
Installasize110/18needle.(Mustbestraight!)
Setstitchwidthknobat"4"andCenteringDialatcenter
position.
Turnflywheeltowardsyouuntiltheneedlereachesitslowest
positionstotheleftandtheright.
Checkwhetherthedistancebetweentheneedleandthe
endsoftheslotinneedleplateareequalonbothsides.
Ifthesedistancesarenotequalonbothsides,proceedas
follows:
Openthefrontcover.
Loosenthecradlespringscrewfarenoughthatthecradleat
itsextremeleftpositiondoesnothittheheadofthecradle
springscrew.
NOTE:Thecradlespringscrewmustbeunscrewedenoughtonotlimitthetravelofthecradleduringthe
adjustment!
OpentheSupermaticcover.
Loosenthesetscrewontopofthecradlelever.
Adjustbyturningthecradleleverstud.
Tightenthesetscrewafterthisadjustment.
ConfirmtheNeedleisnowcenteredintheslot.
Replacethe110/18needle,withastraightsize60/8needle.Thisneedlemustpassthroughtheholeinthe
needleplatewithouttouchingtherearedgewhendeflectedtotheleftandtotheright.
