2-10 IntelliTouch/SecureTouch Guide
Summary of Installation Steps
The CRT installation process consists of the following steps:
1 Incoming inspection
2 Disassembling the monitor
3 Attaching the touchscreen to the CRT
4 Installing the controller
5 Routing the touchscreen cables
6 Reassembling the monitor
7 Sealing the monitor
Specific compatibility may not be confirmed until well into the installation.
1
IntelliTouch touchscreens can be installed on most types of CRT displays.

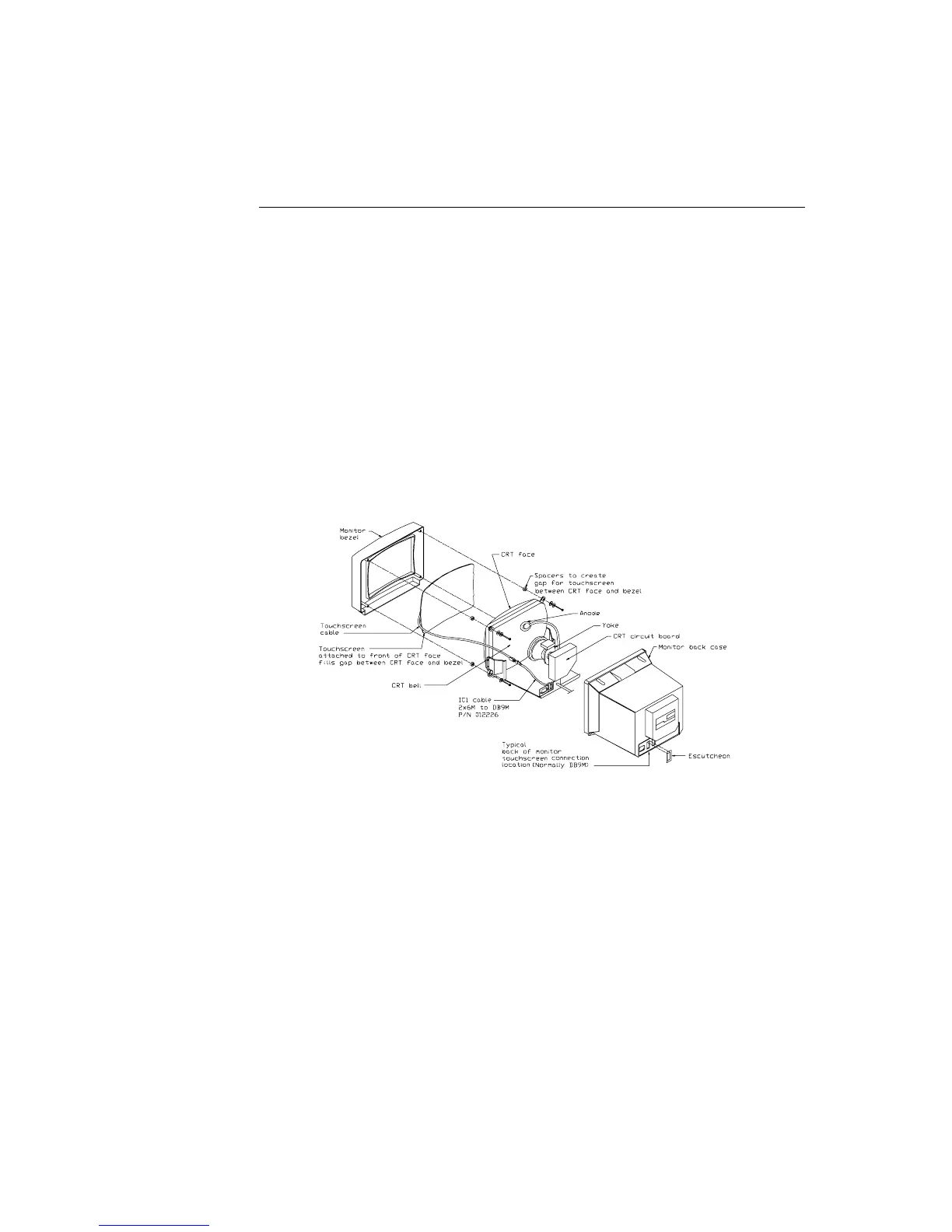

Figure 2.3 shows a typical installation.
Figure 2.3
Typical IntelliTouch Touchscreen Installation
Most displays require complete disassembly, including removal of the CRT, to
install a touchscreen. Disassembling the display can be a dangerous procedure if
done improperly. Any damage to the display or the touchscreen as a result of
improper installation is the installer’s responsibility. Without prior approval of
the display manufacturer, you will probably void the display’s warranty by
disassembling it. Also, it will be necessary to recertify the display and
touchscreen system for regulatory agencies such as FCC, CE and UL/CSA if
those certifications were originally present and need to be maintained for your
intended application.
1. To complete the first integration may take several hours.
