A-60 IntelliTouch/SecureTouch Guide
DB9 and DB25 Connector Pin Positions

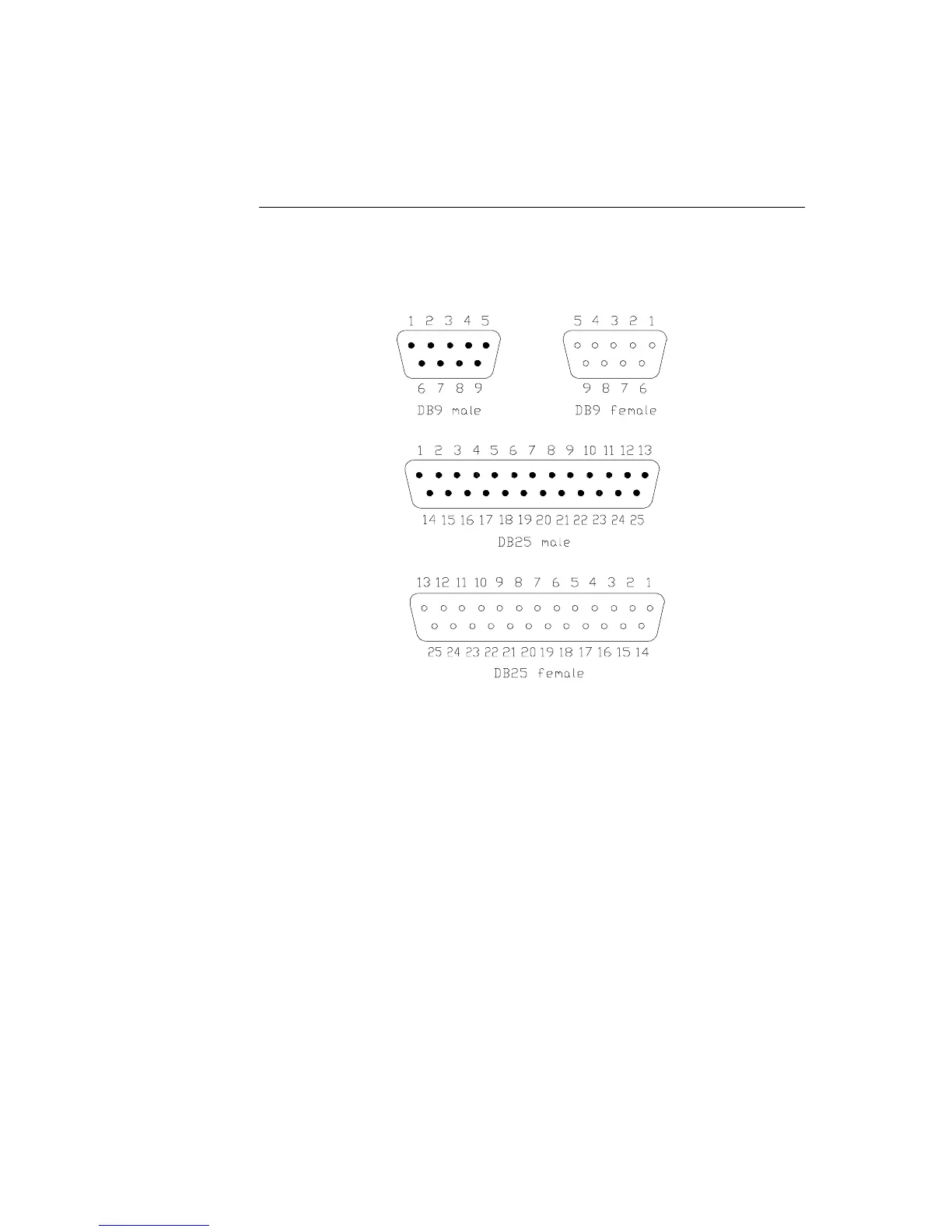

The following figure is useful when locating pin positions on DB9 and DB25
connectors.
Figure A.4
DB9 and DB25 Connector Pin Positions
