6. Operating Levels

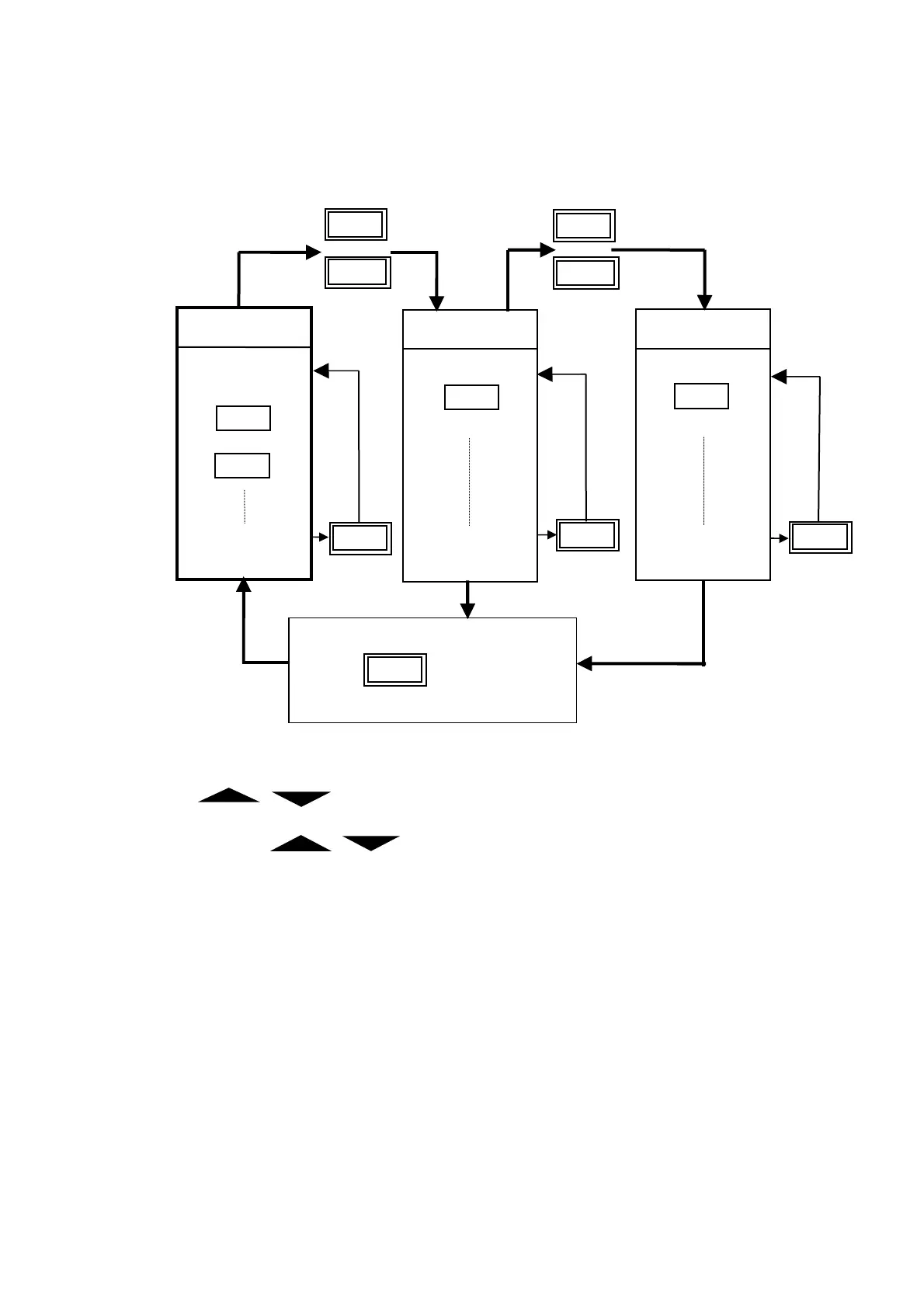

The operation of the controller is divided into three levels.
Appr. two seconds after switching on the unit, the controller will automatically be in the operating level.
press press
and and
appr. 1 sec. appr. 3 sec.
Power: Operating Parameter Configuration
„on“ Level Level Level
Process Value Y (Ratio Output) Cont
Setpoint Value
1 LY Conf
SP2
AL3 OFSt EL .xx
Back into operating level:
- Press appr. 3 sec. or
- after 30sec. automatically
Operating level:
Process- and setpoint value will be displayed simultaneously.
Within the operating level the setpoints and the alarm values can be adjusted
by pressing the " " / " " - keys. Every adjustment has to be quit by pressing the „ E “ - key.
All parameters within the operating level can , in succession, be displayed by pressing the „ P “ - key
and adjusted by pressing the " " / " " - keys.
To switch off the controller function (stand-by operation), the parameter „Cont“ has to be programmed to „OFF“.
After operating the „ P “–key it is possible to preadjust the setpoint „SP1“.
Parameter level:
Enter this level by pressing the „ P “ and „ E “-key appr. 1 sec. simultaneously.
Within the parameter level the values are adjusted to suit the control behaviour to the individual process.
Leave this level by pressing key „ E “ appr. 3 sec..
Configuration level:
Enter this level by pressing the „ P “ and „ E “-key appr. 3 sec. simultaneously.
In the configuration level the controller type, sensor type, the sensor range, the alarm behaviour and the
output type can be pre-selected.
This primary information has to be entered before taking the controller into operation.
The display of each single parameter within the parameter and configuration levels, and their adjustment,
are made in the same way as within the operating level.
After either pressing the „E“ - key for approx. 3 seconds, or waiting for a period of approx. 30 seconds,
the unit will automatically return to the operating level (display of process value and setpoint).
