Manuale istruzioni LAVASCIUGA MOD. ZLA40 – ZLA40C – ZLA40CB
The waste tank contains a float,which, by a led light on the control panel signals that the
waste water level is not at maximum. When the light switches off the waste tank needs
emptying.
NOTE: Maximum waste water capacity = 36 litres
7.5. Battery charging
The state of battery charge can continuously be see by a series of led lights on the control
panel.
• Green led on: battery charged
• Yellow led on: battery will soon need charging
• Red led on: no charge , charge battery immediately.
To re-charge the battery pack proceed as follows:
1. Switch off general ignition
2. take out the Anderson type plug, at the back of the machine.
3. Plug the charger into the domestic mains, assembled at the back of the machine.
Fig 17
Fig 18
NOTE: Only use the battery charger supplied with the machine ,avoid any other charger as
it may not have the same characteristics.
7.6. Adjusting handlebar tilt
The machine has been given a practical tilt adjustment ( height) on the handlebars.
To adjust the handlebar height you need to use the closing screw which is situated on the
stirrup,as shown in the Fig.
• loosen the screws ( on the battery chamber, left and right),
• Position the handlebars to the desired height.,
• Tighten the screws.
05/07/11 Rev .0.0 Lavasciuga Mod.ZLA40 – ZLA40C – ZLA40CB

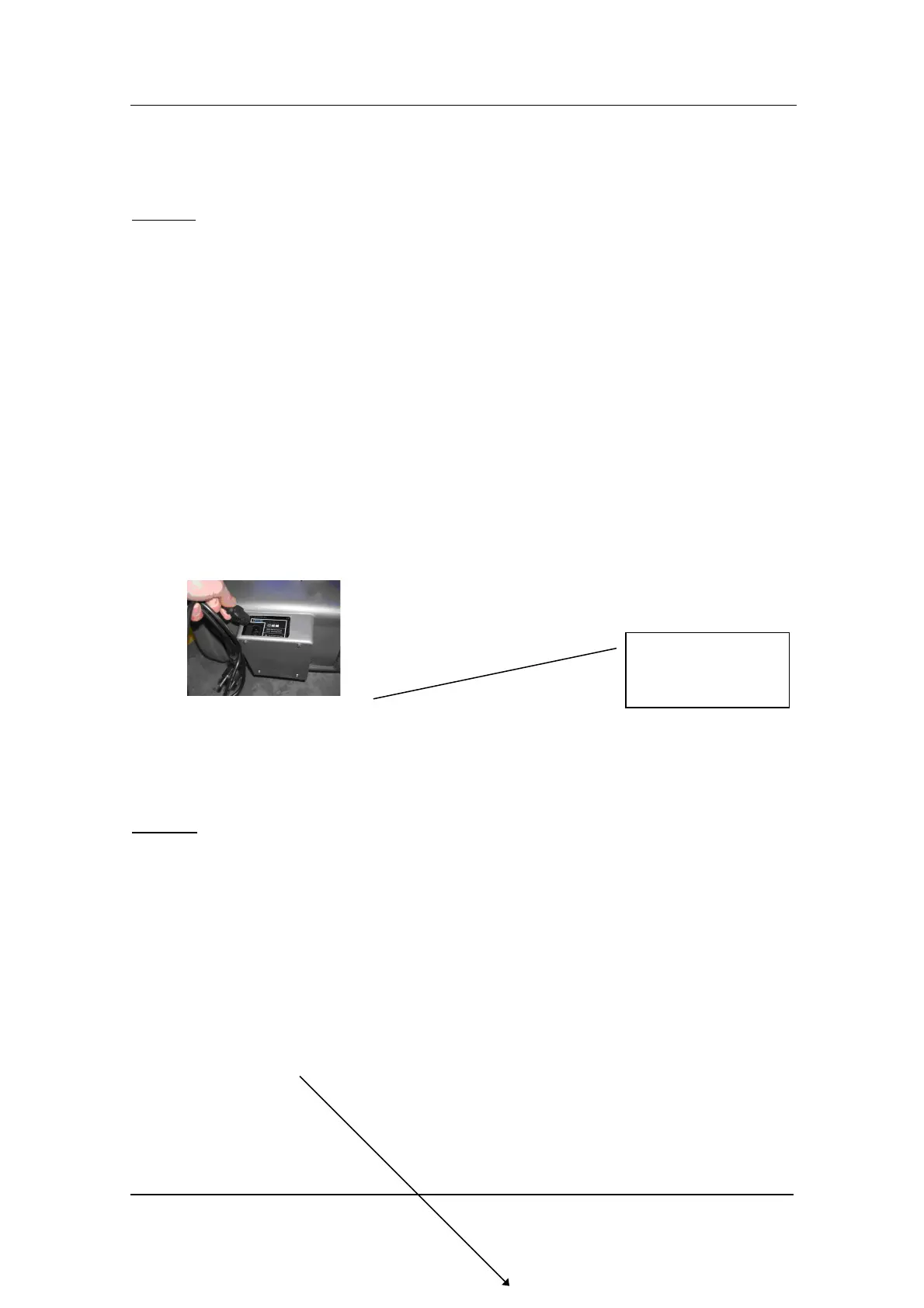

Plug battery charger into
