THURSDAY, 27 FEBRUARY 2014 PAGE 8 OF 31
EMS75VR-ROYAL-VENDING-INSTALLATION AND USER GUIDE-ISS3

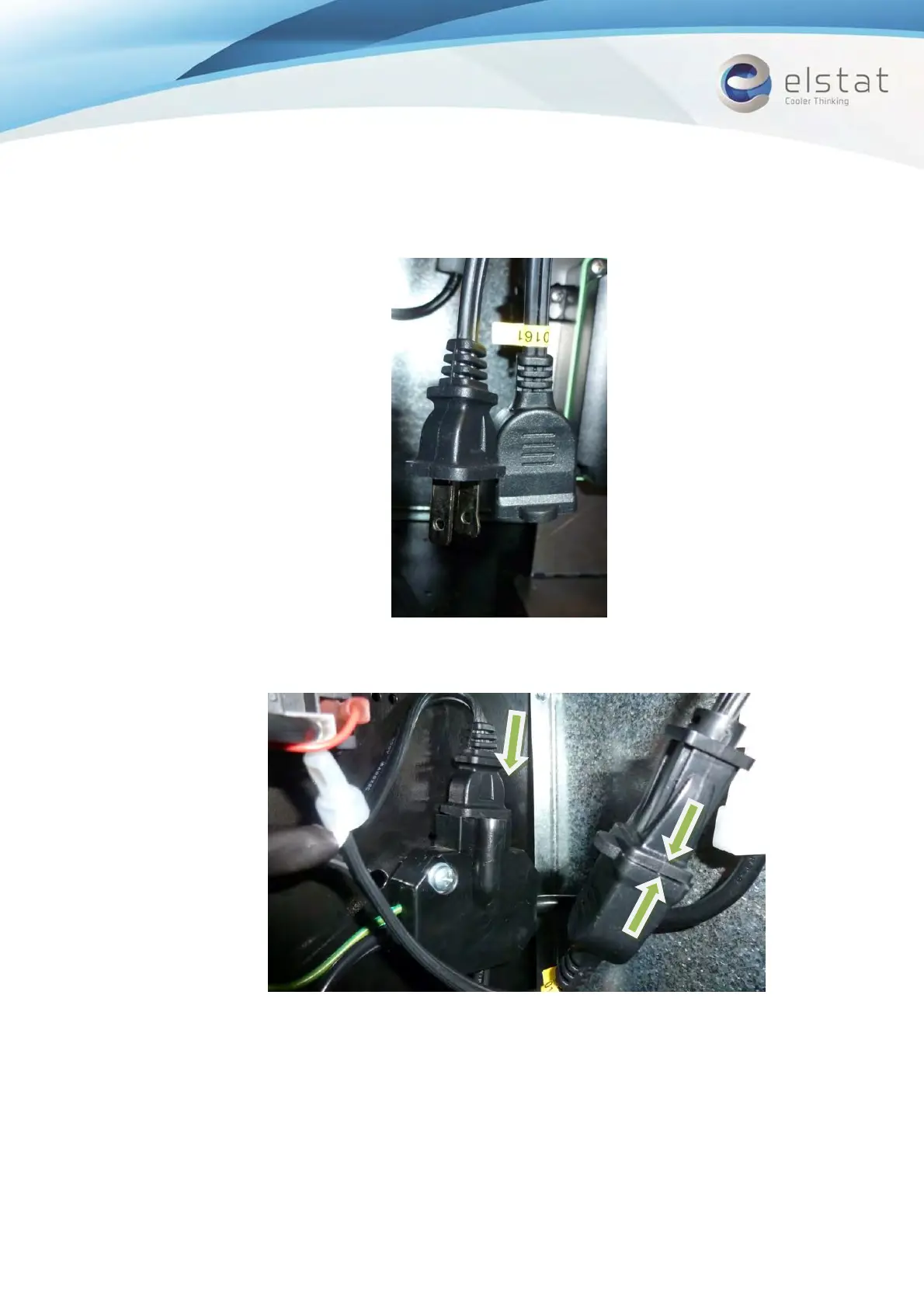

3. Identify the compressor plug and socket on the wiring harness of the ems75vr as shown below.
4. Unplug compressor plug and connect the ems75vr plug to the compressor socket and the ems75vr
socket to the compressor plug as shown below.
To Next Page
