2.4 How to connect to the mains supply
Connect the ems controller to the mains supply as follows:

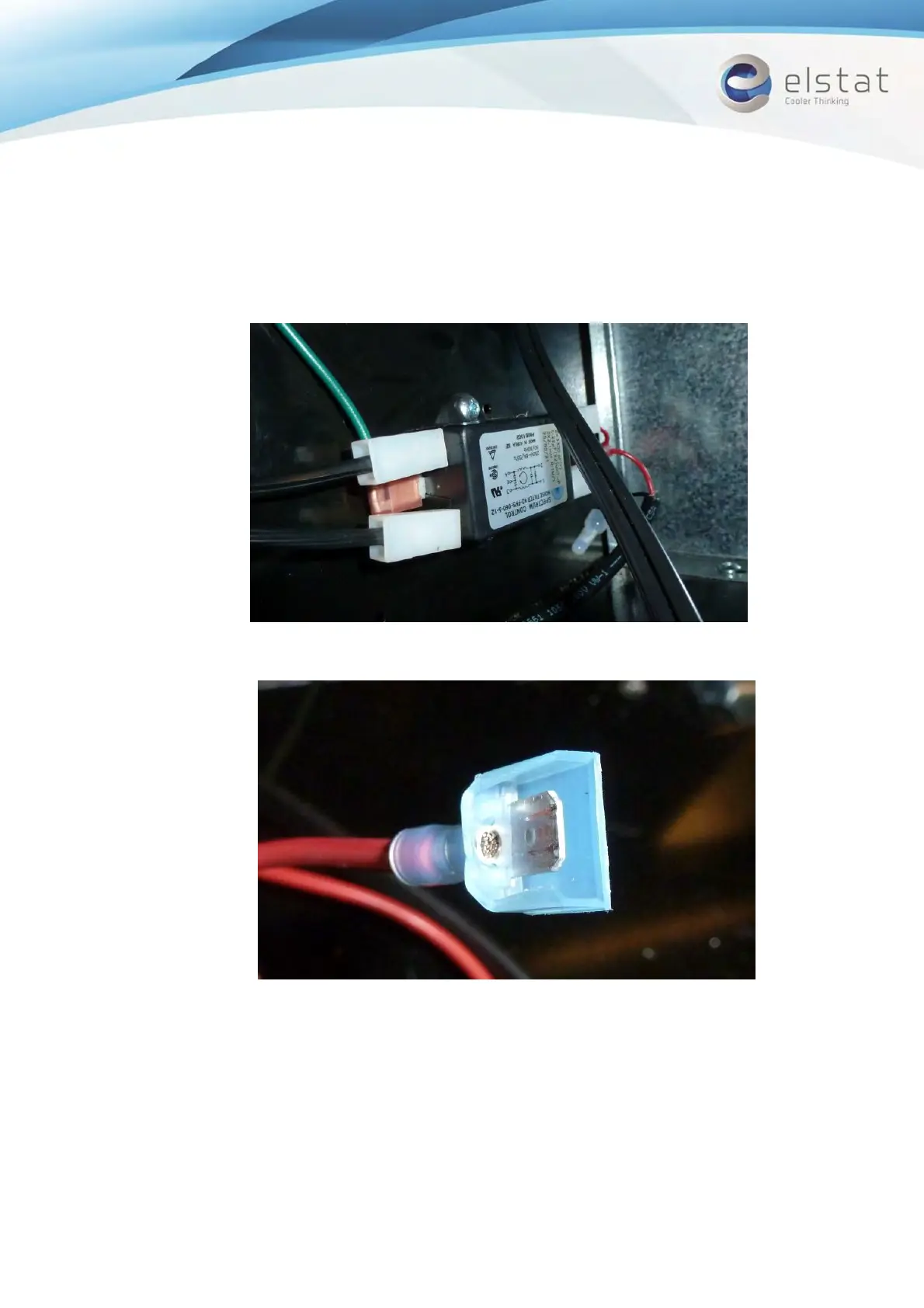

5. Identify the mains filter as shown below.
6. Cut the insulation of the wiring harness live (red) wire as shown below.
