THURSDAY, 27 FEBRUARY 2014 PAGE 7 OF 31
EMS75VR-ROYAL-VENDING-INSTALLATION AND USER GUIDE-ISS3

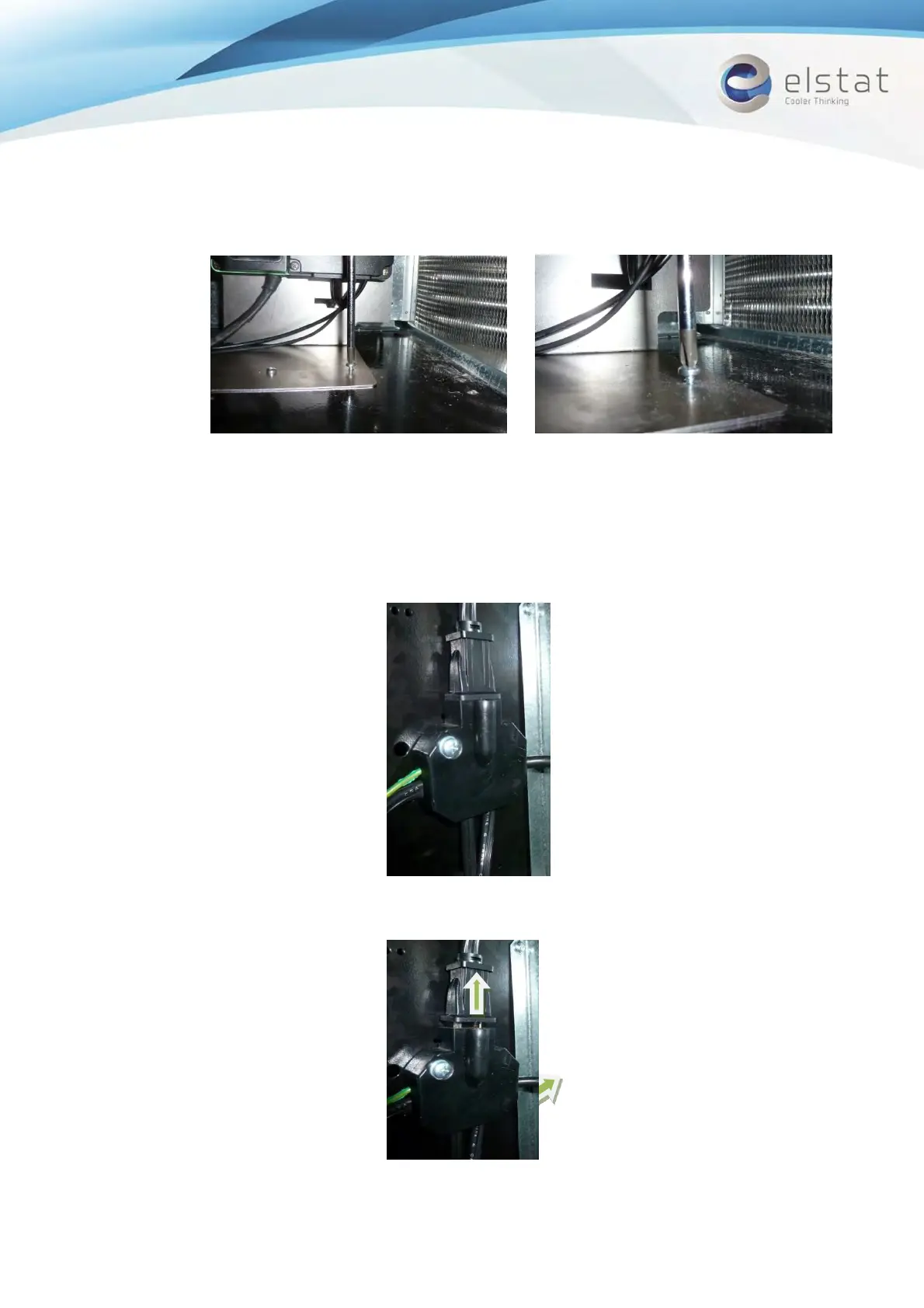

3. Secure the bracket using the two no.8 self-drilling screws (supplied) as shown below.
2.3 How to connect to the compressor
Connect the ems75vr to the compressor as follows:
1. Identify the mains compressor cable and connector as shown below.
2. Disconnect the compressor plug as shown below.
