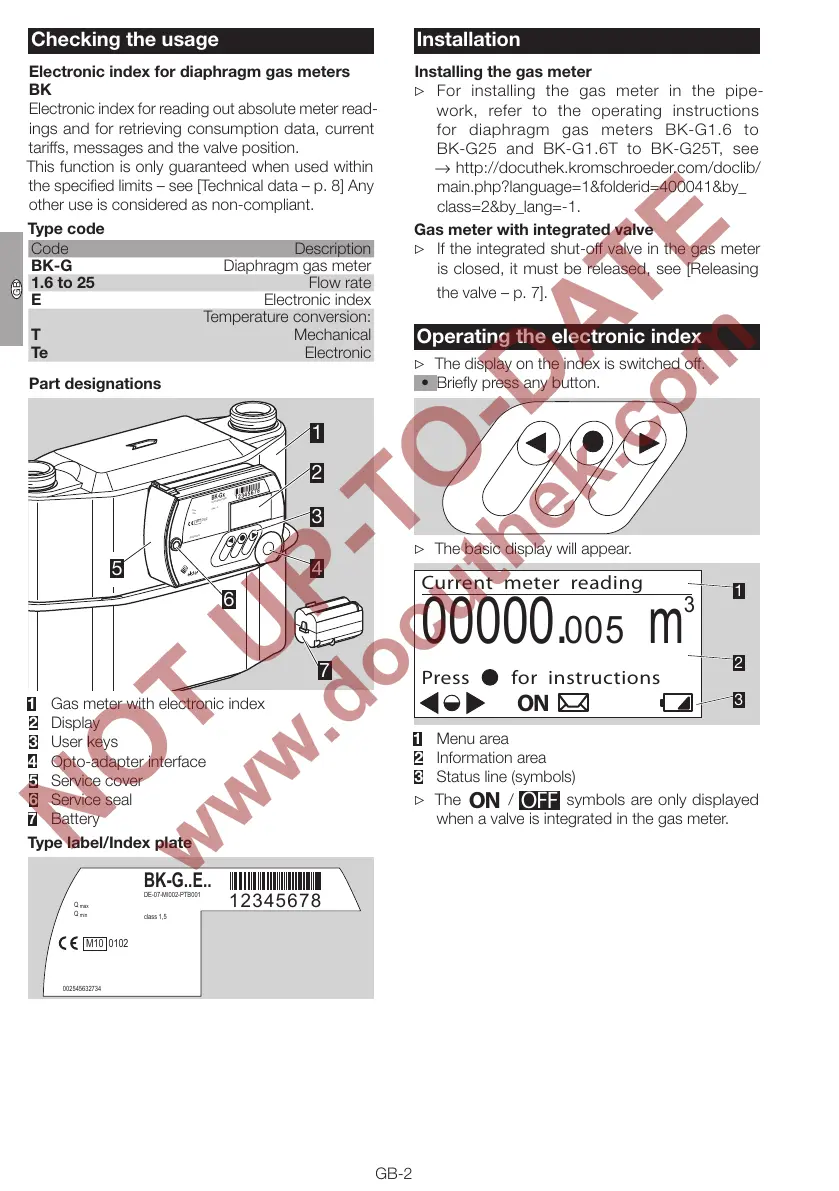

Checking the usage
Electronic index for diaphragm gas meters
BK
Electronic index for reading out absolute meter read-
ings and for retrieving consumption data, current
tariffs, messages and the valve position.
This function is only guaranteed when used within
the specified limits – see [Technical data – p.8] Any
other use is considered as non-compliant.
Type code
Code Description
BK-G Diaphragm gas meter
1.6 to 25 Flow rate
E Electronic index
T
Te
Temperature conversion:
Mechanical
Electronic
Part designations
BK-Gx
DE-07-MI002-PTB001
002545632734
class 1,5
Q
max
Q
min
M07 0102
12 34 56 78
5
2
1
4
3
6
7
1 Gas meter with electronic index
2 Display
User keys
4 Opto-adapter interface
5 Service cover
6 Service seal
7 Battery
Type label/Index plate
BK-G..E..
DE-07-MI002-PTB001
002545632734
class 1,5
Q
max
Q
min
M10 0102
12345678
Installation
Installing the gas meter
For installing the gas meter in the pipe-
work, refer to the operating instructions
for diaphragm gas meters BK-G1.6 to
BK-G25 and BK-G1.6T to BK-G25T, see
→ http://docuthek.kromschroeder.com/doclib/
main.php?language=1&folderid=400041&by_
class=2&by_lang=-1.
Gas meter with integrated valve
If the integrated shut-off valve in the gas meter
is closed, it must be released, see [Releasing
the valve – p.7].
Operating the electronic index
The display on the index is switched off.
• Briefly press any button.
The basic display will appear.
ON
Current meter reading
Press for instructions
00000.
005
m
3
1
2
3
1 Menu area
2 Information area
Status line (symbols)
The
/
symbols are only displayed
when a valve is integrated in the gas meter.
