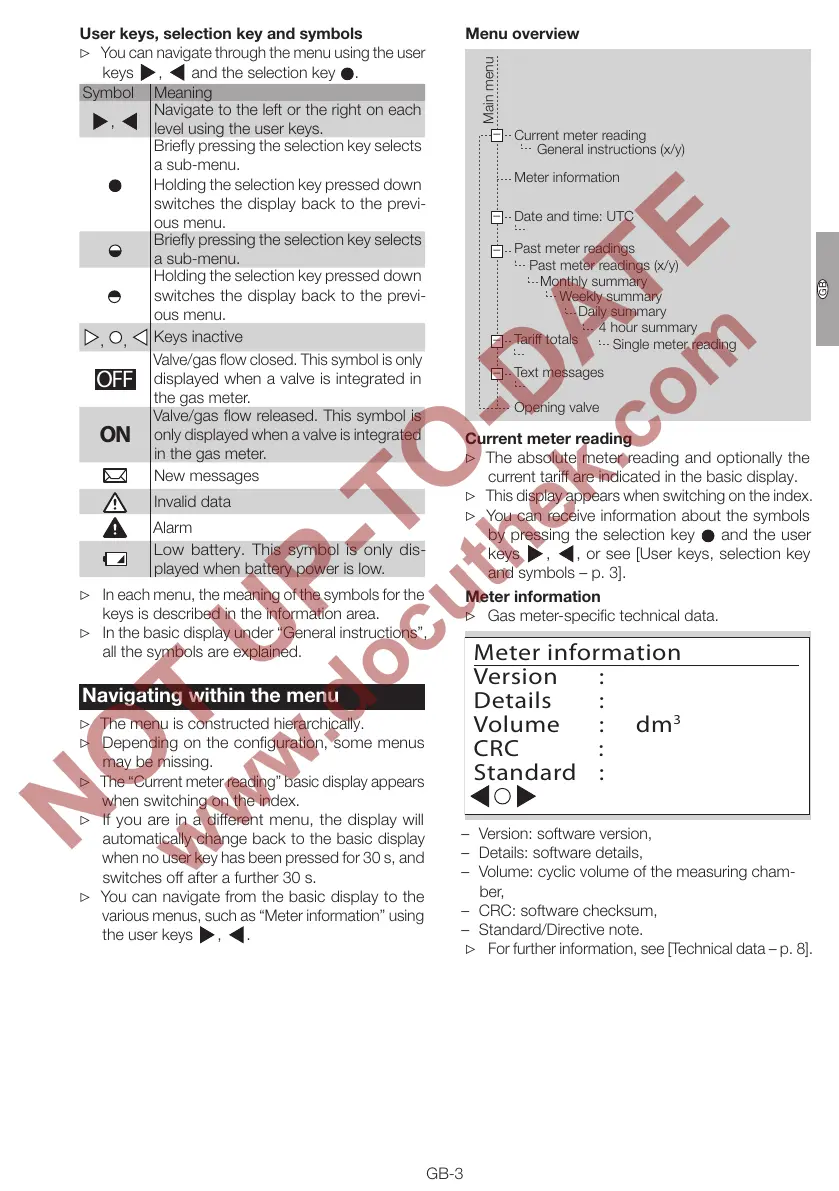

User keys, selection key and symbols
You can navigate through the menu using the user
keys , and the selection key .
Symbol Meaning
,
Navigate to the left or the right on each
level using the user keys.
Briefly pressing the selection key selects
a sub-menu.
Holding the selection key pressed down
switches the display back to the previ-
ous menu.
Briefly pressing the selection key selects
a sub-menu.
Holding the selection key pressed down
switches the display back to the previ-
ous menu.
, ,
Keys inactive
Valve/gas flow closed. This symbol is only
displayed when a valve is integrated in
the gas meter.
Valve/gas flow released. This symbol is
only displayed when a valve is integrated
in the gas meter.
New messages
Invalid data
Alarm
Low battery. This symbol is only dis-
played when battery power is low.
In each menu, the meaning of the symbols for the
keys is described in the information area.
In the basic display under “General instructions”,
all the symbols are explained.
Navigating within the menu
The menu is constructed hierarchically.
Depending on the configuration, some menus
may be missing.
The “Current meter reading” basic display appears
when switching on the index.
If you are in a different menu, the display will
automatically change back to the basic display
when no user key has been pressed for 30 s, and
switches off after a further 30 s.
You can navigate from the basic display to the
various menus, such as “Meter information” using
the user keys , .
Menu overview
–
–
–
–
–
Opening valve
Current meter reading
General instructions (x/y)
Meter information
Date and time: UTC
Past meter readings
Past meter readings (x/y)
Monthly summary
Tariff totals
Text messages
Weekly summary
Daily summary
4 hour summary
Single meter reading
Main menu
Current meter reading
The absolute meter reading and optionally the
current tariff are indicated in the basic display.
This display appears when switching on the index.
You can receive information about the symbols
by pressing the selection key and the user
keys , , or see [User keys, selection key
and symbols – p.3].
Meter information
Gas meter-specific technical data.
Meter information
Version :
Details :
Volume : dm
3
CRC :
Standard :
– Version: software version,
– Details: software details,
– Volume: cyclic volume of the measuring cham-
ber,
– CRC: software checksum,
– Standard/Directive note.
For further information, see [Technical data – p.8].
