Connection
10
Connecting the supplied antennas
Connecting the supplied FM antenna
The supplied FM antenna is for indoor use only.
During use, extend the antenna and move it in various
directions until the clearest signal is received.
Fix it with push pins or similar implements in the position
that will cause the least amount of distortion.
If you experience poor reception quality, an external
antenna may improve the quality.
Connecting an FM external antenna
Notes:
< Keep the antenna away from noise sources (neon signs,
busy roads, etc.)
< Do not put the antenna close to power lines. keep it well
away from power lines, transformers, etc.
< To avoid the risk of lightning and electrical shock,
grounding is necessary.
Connecting an AM external antenna
An external antenna will be more effective if it is stretched
horizontally above a window or outside.
Notes:
< Do not remove the AM loop antenna.
< To avoid the risk of lightning and electrical shock,
grounding is necessary.

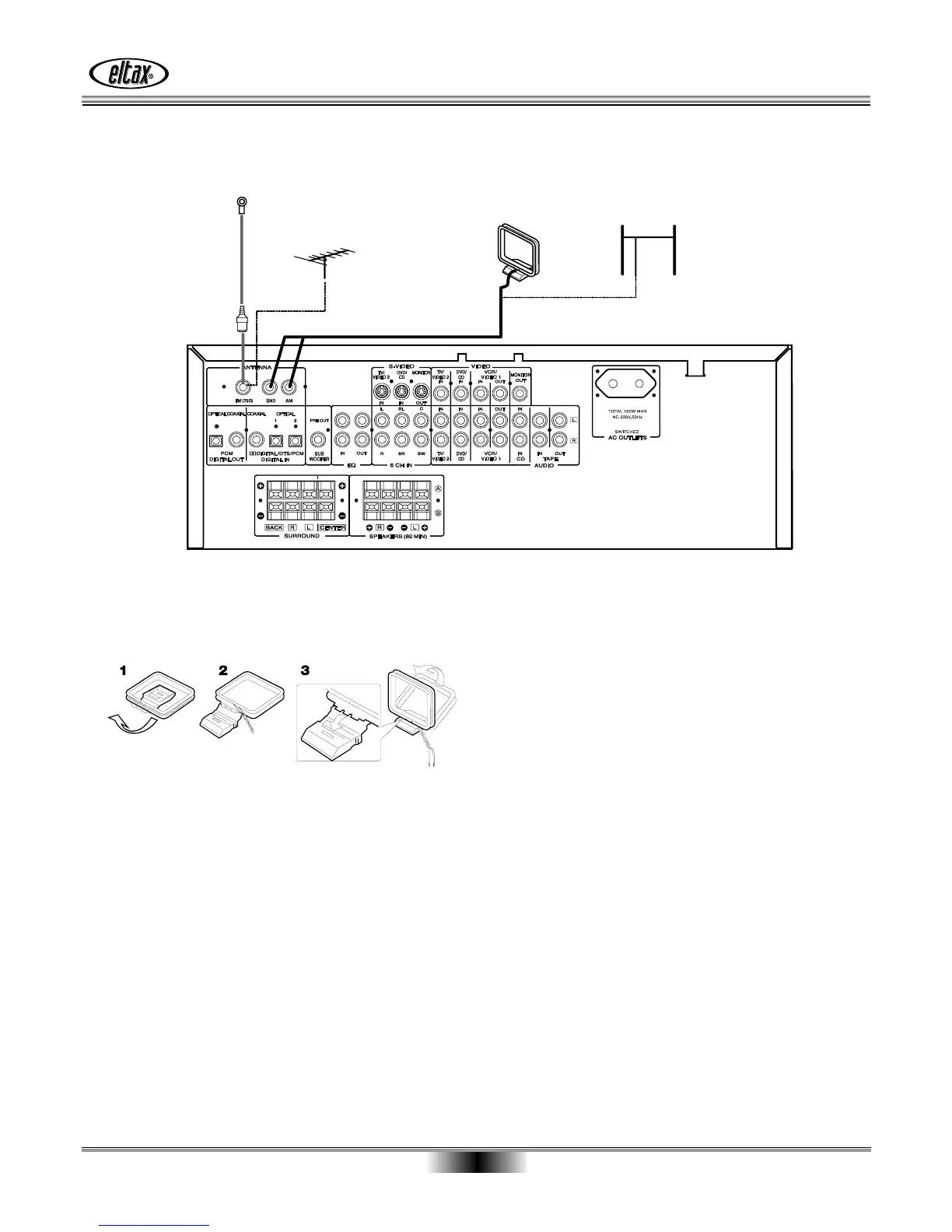

Assembling the AM loop antenna
FM antenna
FM external
antenna
AM external
antenna
AM loop
antenna
1. Release the vinyl tie and take out the connection line.
2. Bend the base part in the reverse direction.
3. Insert the hook at the bottom of the loop part into the slot
at the base par.
4. Place the antenna on stable surface.
