3.2 Available Options and Assembly Equipment
Designation Material Code
DC Power Rack DCR PSR327-8.1 LV (assembly set 19’’ sub rack 3U
incl. backplane for three PSR327/48V or 60V rectifiers and one
UPC3-48/60V DC controller), DCC-CB1 connection board included.
102-327-318.LV01
DC Power Rack DCR PSR327-8.1 HV (assembly set 19’’ sub rack 3U
incl. backplane for three PSR327/110V or 220V rectifiers and one
UPC3-110V or 220V DC controller), DCC-CB1 connection board
included.
102-327-318.HV01
DC Power Rack DCR PSR327-10.8 LV (assembly set 19’’ sub rack 3U
incl. backplane for four PSR327/48V or 60V rectifiers).
102-327-408.LV01
DC Power Rack DCR PSR327-10.8 HV (assembly set 19’’ sub rack 3U
incl. backplane for four PSR327/110V or 220V rectifiers).
102-327-408.HV01
Cover plate (with handle) to cover empty PSR slots, 1/4 x 19’’, 3U;
RAL 7035
881-MEC-BPL.03.21.B
Monitoring, control and signalling unit (DC controller) UPC3-48/60V 301-003-598.02
Monitoring, control and signalling unit (DC controller) UPC3-110V 301-003-798.02
Monitoring, control and signalling unit (DC controller) UPC3-220V 301-003-898.02
DCC-CB1; connection board (with MSTB screw terminals) necessary
to connect all measuring, control and signalling wires over the
backplane of the sub rack to the control unit UPC3 (spare part).
302-DCC-CB1.00
CAN dongle, incl. software; necessary to change the internal default
values of the rectifier (e.g. for NiCd application).
880-CAN-DNG.00

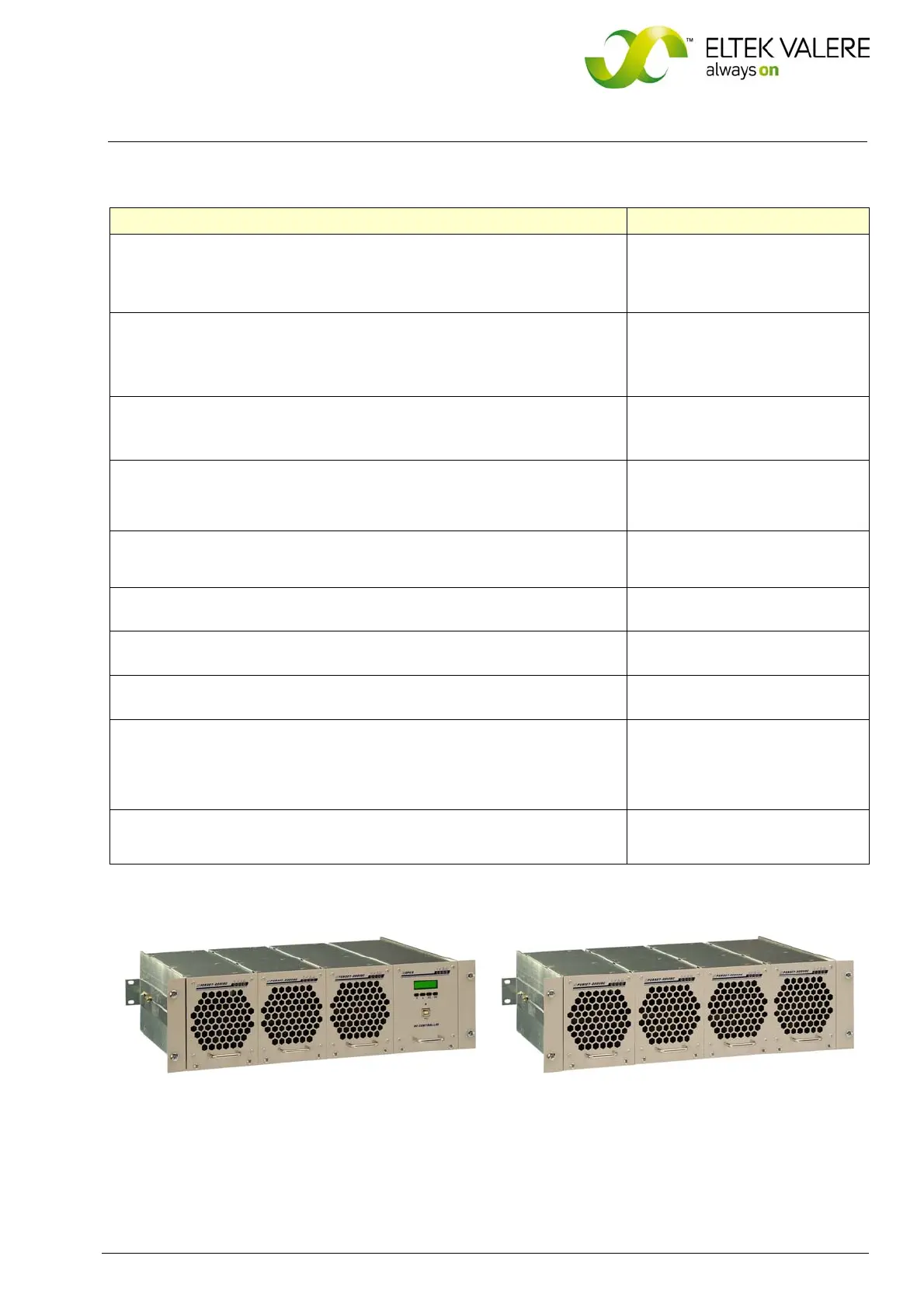

Figure 1) DC Power Rack DCR PSR327-8.1 fully
equipped with three PSR327 rectifiers
and one UPC3 DC controller
Figure 2) DC Power Rack DCR PSR327-10.8 fully
equipped with four PSR327 rectifiers
