NTU-1 Optical Network Terminals 13
– Vendor Name – manufacturing company name of the optical module;
– Part Number – optical module model;
– Temperature – optical module temperature, °C;
– Voltage – supply voltage, V;
– Tx Power – transmitted signal level (1310 nm), dBm;
Rx Power – received signal level (1490 nm), dBm;
– Bias Current – bias current, mA.
Click the Refresh button to refresh the information.

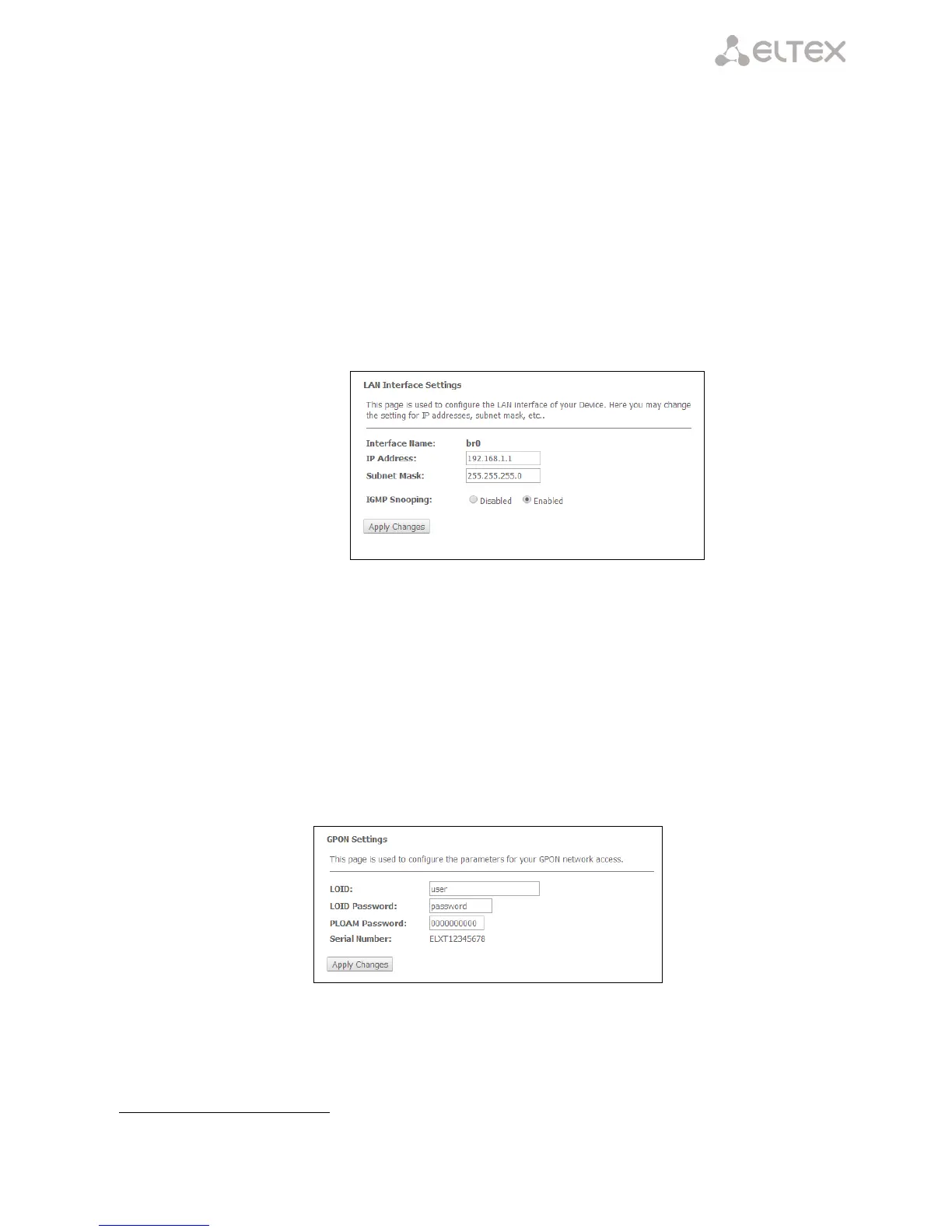

3.2. The LAN menu. LAN Interface Settings
Use the tab shown below to configure basic LAN interface settings (for example, IP-addresses, subnet
mask and other parameters)
– Interface Name;
– IP Address – device address in local network;
– Subnet mask;
– IGMP Snooping – turn on/off (enabled/disabled) IGMP Snooping function to monitor network multicast
traffic.
Click Apply Changes button to accept changes.
3.3. The Admin menu. Administration Settings
3.3.1 The GPON Settings submenu. Settings GPON-network Access
The tab is used to configure the parameters of the GPON network access.
– LOID
1
– logical object identifier (user name in the GPON);
– LOID Password
1
– access password with a logical ID (user password in the GPON network);
– PLOAM Password – access password settings on the physical layer for work, terminal management and
technical terminal services;
– Serial Number –PON serial device number.
1
Not used
