8 NTU-1 Optical Network Terminals
Relative humidity
up to 80 %
Dimensions
112x100x32 mm
Weight
0,25 kg
2.4 Design
NTU-1 devices are designed as a 112×100×32 mm desktop device in a plastic housing.

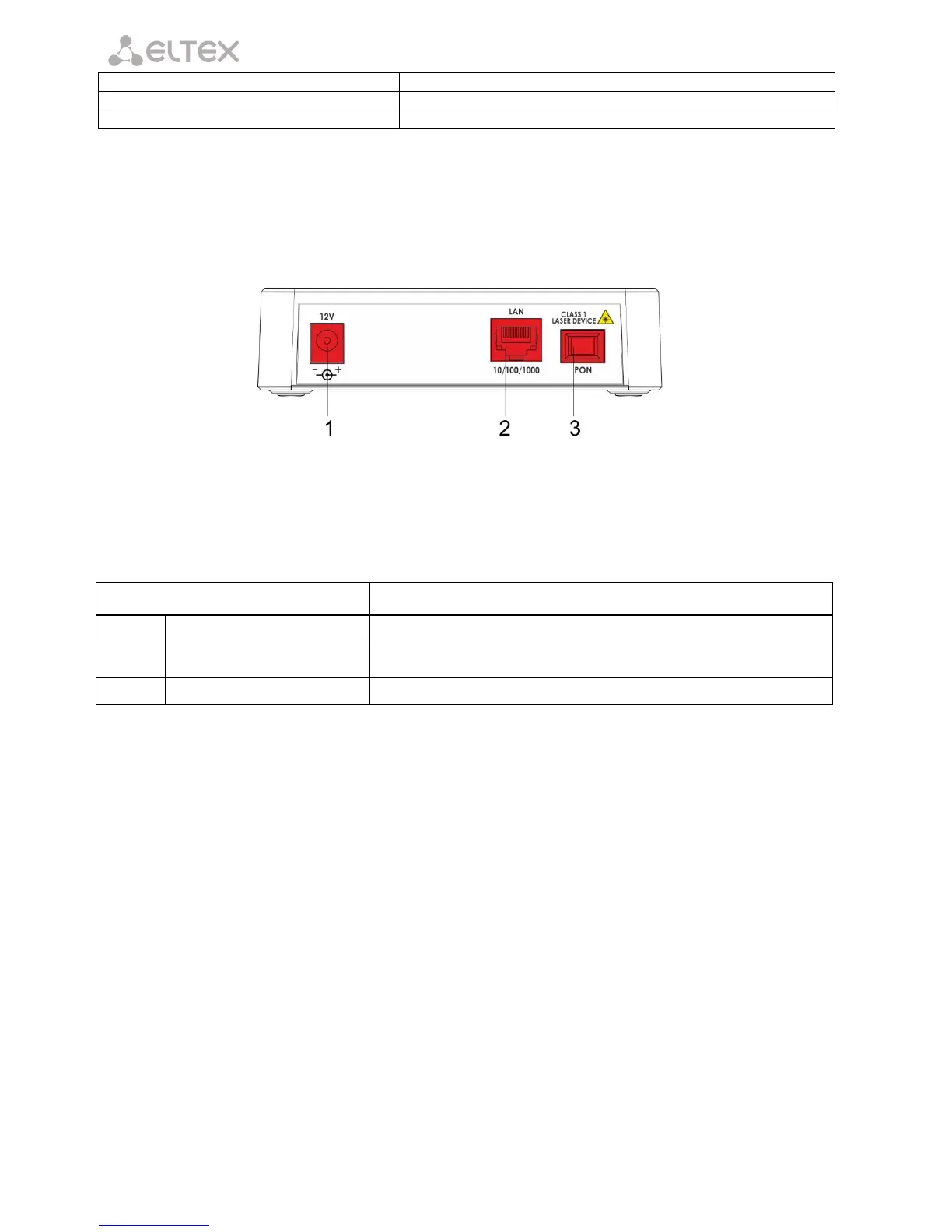

Fig. 2 shows NTU-1 rear panel.
Fig. 2 – NTU-1 Rear Panel
Connectors and controls located on the rear panel of NTU-1 are listed in Table 3.
Table 3 – Description of LEDs and Controls Located on the Rear Panel
Rear Panel Element
Description
1
12V
Power adapter connector
2
10/100/1000
RJ-45 10/100/1000Base-T port for connection of network devices
3
PON
SC port (socket) for connection to PON with GPON interface
