Eltorque QT Series User Manual

Failsafe Option
Page 76 of 86
User Manual QT250 and QT800, ID 2021 2.0 July 2018

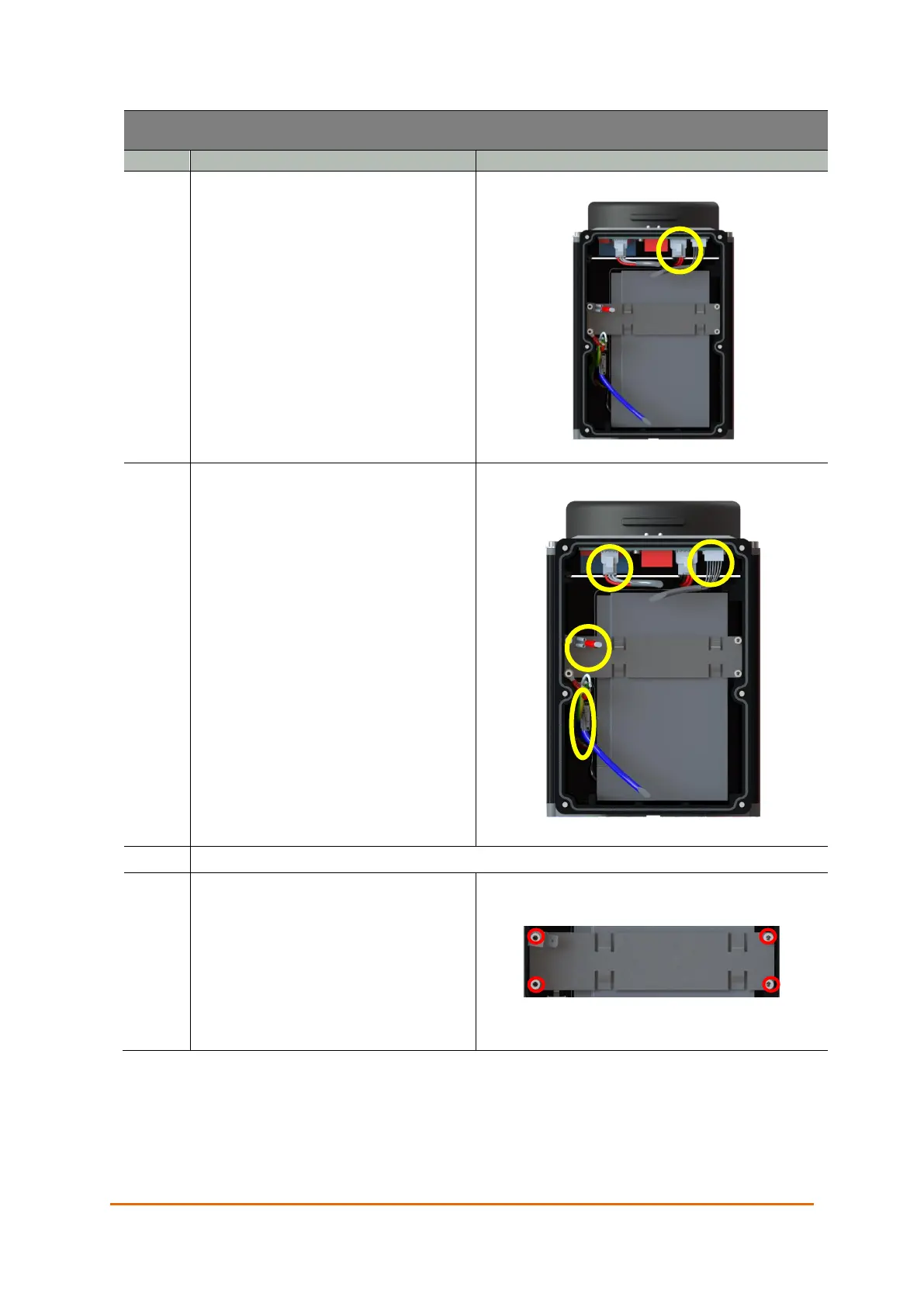

Procedure
Step
Description
Illustration
5
Disconnect the battery cable connector
marked by a yellow circle in the
illustration.
6
Disconnect the rest of the cable
connectors marked by yellow circles in
the illustration.
7
Place the interface in a secure location to avoid any damage to it.
8
Remove the four M3 hex socket head
screws holding the battery bracket by
turning them counterclockwise. The
screws are circled red in the illustration.
Place the screws and connector in a
secure location.
Required equipment:
− 2,5mm Hexagon Key.
