•Anacousticsignalisgenerated,and“A1”isdisplayed.

•Thevalveoperatingmechanismfullyretractsthecontrol

pin to facilitate mounting.

•Now“A2”isdisplayed.

c) Mounting the valve operating mechanism

on the radiator

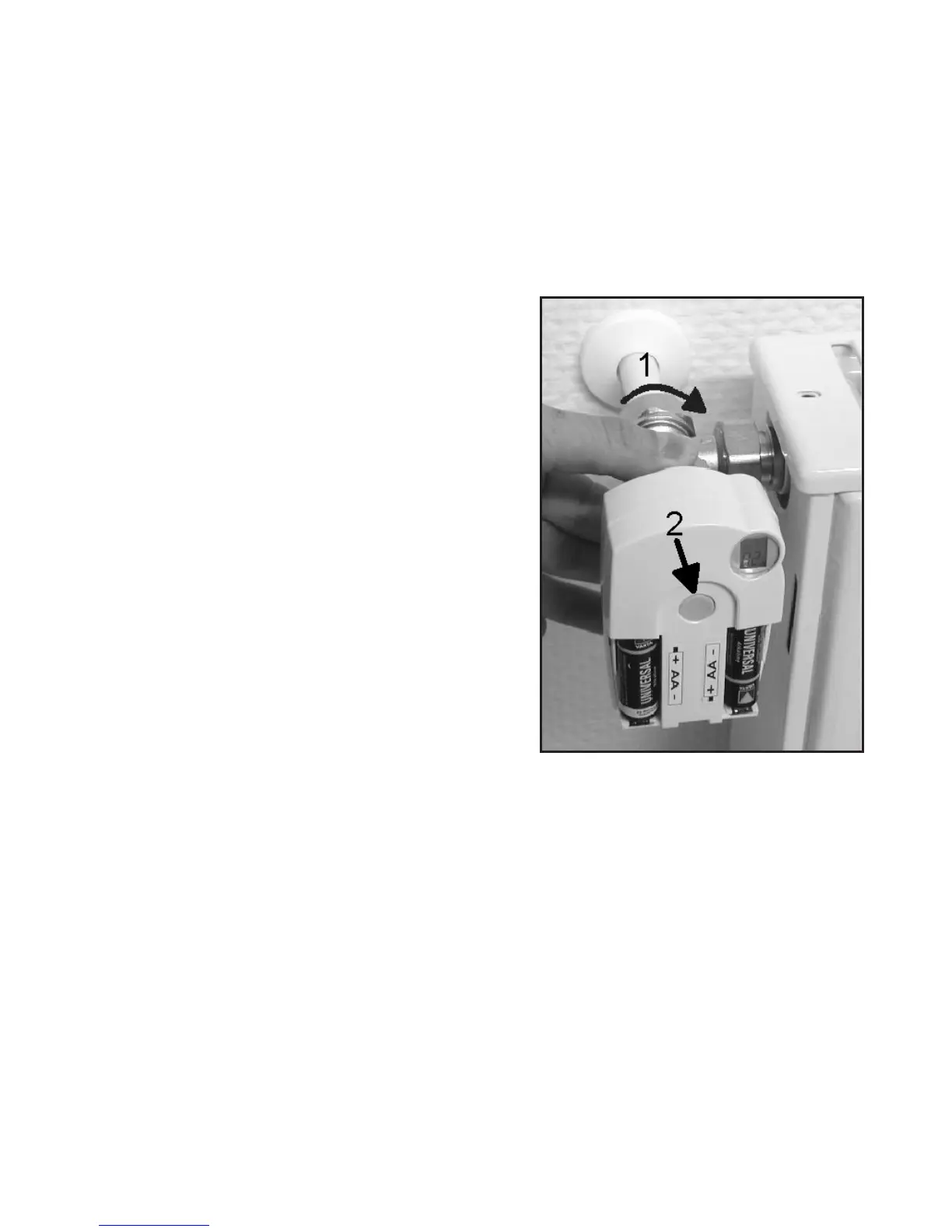

• Manually turn the coupling

nut to fasten the valve oper-

ating mechanism on the valve

(“1” in the ﬁgure on the right

side). When using valves by

“Danfoss” mount one of the

adaptors enclosed on the

valve ﬁrst. The ﬁgures on the

next page show the adaptors

that have to be used for each

valve. Additional adaptors

for other valves may be pur-

chased separately.

• Brieypressthe(2)keyonthe

valve operating mechanism

once (see ﬁgure on the right side).

• “A3”isdisplayedontheLCdisplayofthevalveoperat-

ing mechanism, and the valve is closed.

• Onthedisplay,theantennasymbolashesand“0%”is

displayed.

• Closethebatterycompartment.

Please note:

If you have purchased the valve operating mechanism

separately (e.g. to use a second valve operating mecha-

nism for one heating control), you have to set the num-
