26

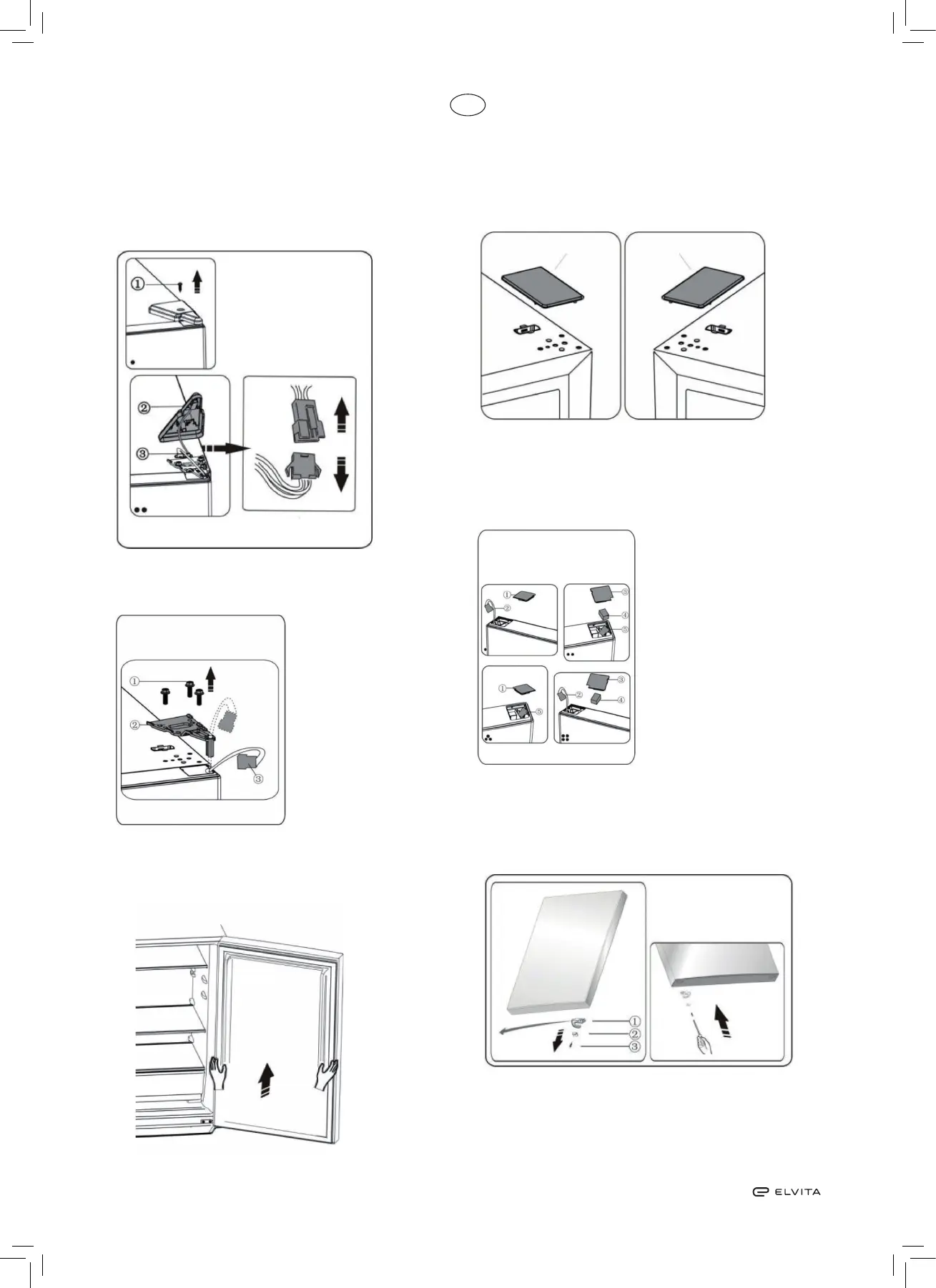

2. Remove part 1, lift up part 2 from the top right of the
appliance, taking care not to pull the wires from electrical
connector 3. Then disconnect electrical connector 3 and
remove part 2.
3. Remove screws 1 and hinge 2. Then pass connector 3
through the hole in hinge 2. (Support the upper door with
your hand while installing it.)
4. Remove the upper door from the middle hinge by
carefully lifting the door straight up. Then stand the upper
door on a smooth surface so that you have access to the
top of the door.
5. Take the screw hole cover (right) from the plastic bag
and install it on the top right of the refrigerator body. Then
remove the screw hole cover (left) from the top left of the
appliance and put it in the plastic bag.
6. Remove part 1 from the top left of the door and lift out
part 2. Then remove part 3 and part 4 from the top right
of the door. Place part 5 in the top right of the upper door.
Referring to the above description, install part 3 and part 4
on the top left of the door. lnstall part 1 on the top right of the
door.
7. Undo screw 3 and remove part 2 and part 1. lnstall the
replacement door stopper 1 (supplied in the plastic bag) and
part 2 (stop block) on the left side of the door using screw 3.
Keep part 1 for future use.
1. Self-tapping screw
2. Upper hinge cover
3. Electrical connector
1. Corner cover (left)
2. Electrical connector (left)
3. Corner cover (right)
4. Magnetic core
5. Electrical connector (right)
1. Special ange screws
2. Upper hinge
3. Electrical connector
Screw hole cover (right) Screw hole cover (left)
1. Door stopper
2. Stop block
3. Self-tapping screw
