27

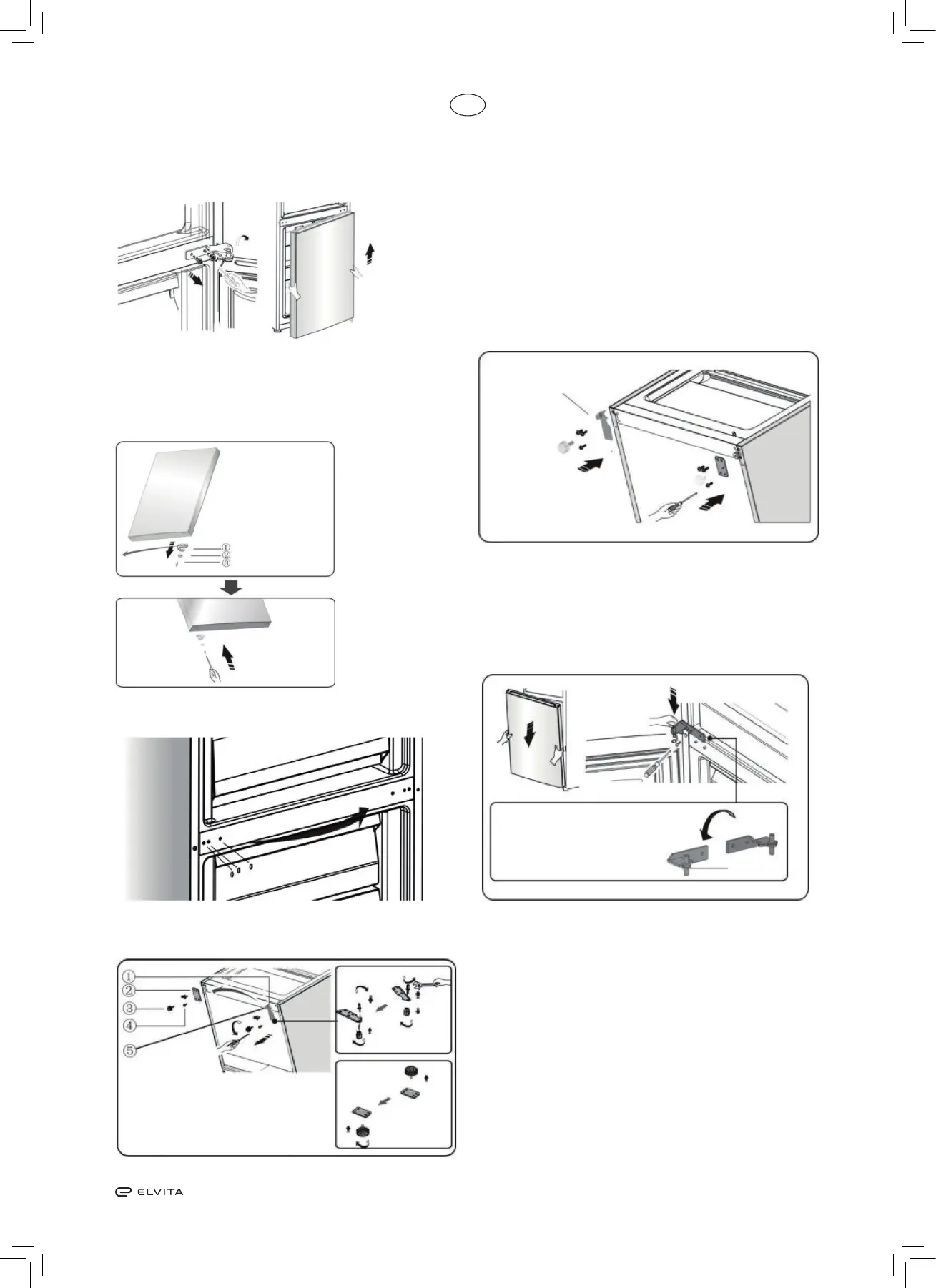

8. Undo the screws that hold the middle hinge and remove
the hinge. Then remove the lower door.
9. Place the lower door on a smooth surface with its panel
upwards. Undo screw 3 and remove part 2 and part 1. lnstall
the replacement door stopper 1 (supplied in the plastic bag)
and part 2 (stop block) on the left side of the door using
screw 3. Keep part 1 with the appliance for future use.
10. Transfer the screw hole covers on the middle cover plate
from left to right (as shown in gure below).
11. Tip the refrigerator backwards, remove part 3 and then
remove screws 4.
12. Remove part 5 from the lower hinge pin, then remove
the lower hinge pin, transfer it to the hole on the opposite
side, x it in this position, then install part 5 on the lower
hinge pin.
13. Remove part 3 from part 2, then remove screws 4.
14. Replace the items that you removed in step 11, transfer
part 1 to the left side and part 2 to the right side and then x
them with screws 4. Finally install part 3.
15. Slot the lower door on to the bottom hinge pin and hold
it in position. Rotate the middle hinge through 180°, transfer
the washer on the pivot to the lower side, adjust the middle
hinge to the appropriate position and then install it ensuring
that the lower door is secured in place.
1. Lower hinge part (right)
2. Front foot xed board
3. Adjustable bottom feet
4. Self-tapping screws
5. Adjustable bottom feet
Lower hinge part (left)
1. Door stopper
2. Stop block
3. Self-tapping screw
Note: washer may stick to lower door
Washer
