Terminal number Description Input type
14-17-20 Control inputs common (permanent GND) -
13 Opening limit switch input (with dip switch 2-1 OFF) Normally closed
15 Closing limit switch input (with dip switch 2-1 OFF) Normally closed
16 Opening-only button input, dedicated for timer or detector for magnetic induction coils Normally open
18 Sequential control input, to govern the complete travel of the gate Normally open
19 Sequential control input, to govern the pedestrian travel of the gate Normally open
21 Input for stopping the gate Normally closed
22 Photocell input, active during gate closing Normally closed
23 Input for edges or internal photocell, active during gate closing and opening Normally closed

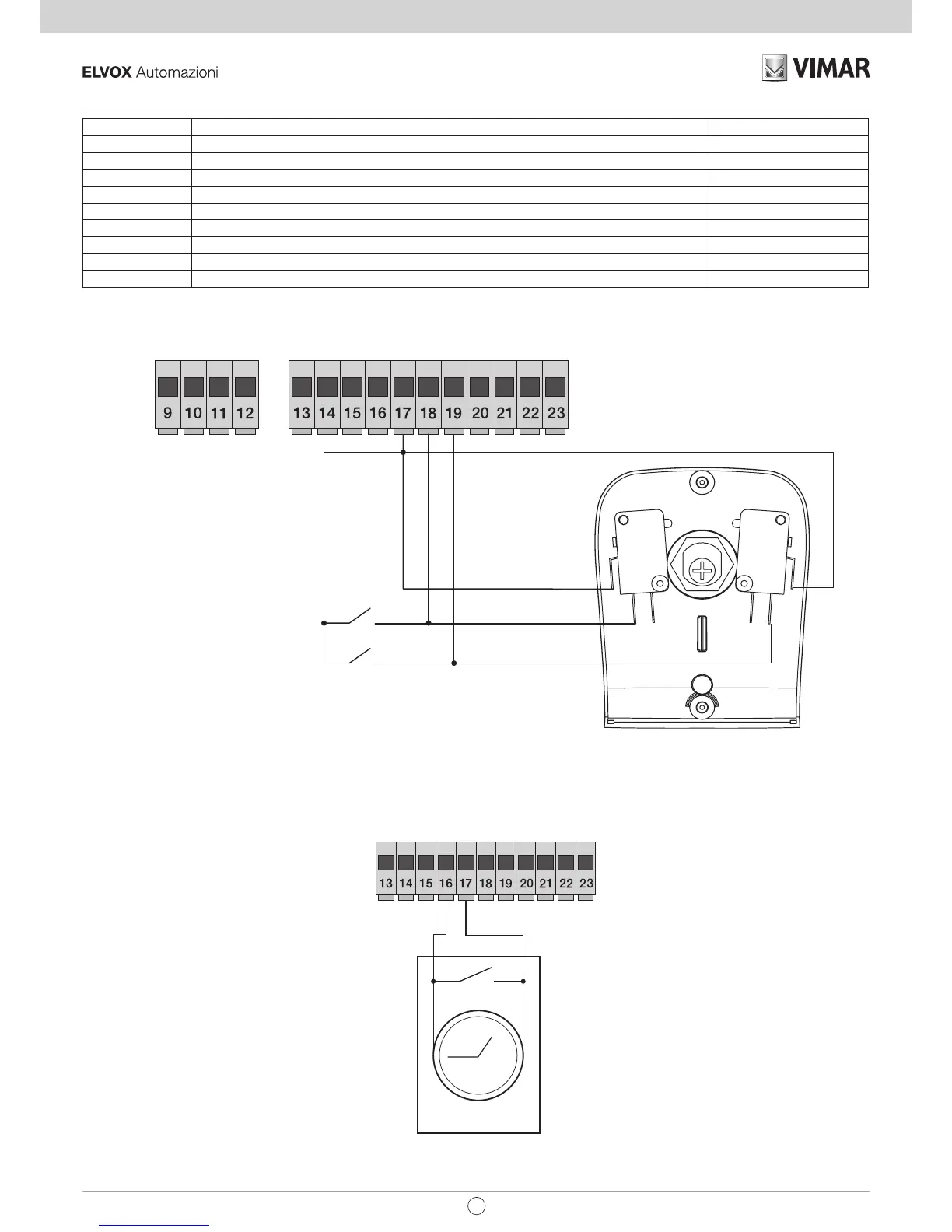

3.4- Connecting control buttons and key switch, normally open contacts (the ap/ch or aped LEDs come on when the selector or the buttons
connected in parallel are operated) the APCH input controls opening or closing the gate completely, the APED input controls partial gate opening or
closing:
3.5- Connection of timer or detector with magnetic induction with normally open contact (the open LED comes on when the timer or magnetic
induction detector are operated) the OPEN input commands full opening of the gate, until the contact is closed, the gate opens and remains in the open
position, the APCH, APED commands and saved remote controls are not active until the contact is reset from closed to open, after the automatic closing
time set with the PAUSE trimmer, the gate closes, this input is used to open and hold open the gate at the times of greatest influx:
Button controlling APED
Fig. 6
Fig. 7
