seat (7) and tip the cover back.
On closing:

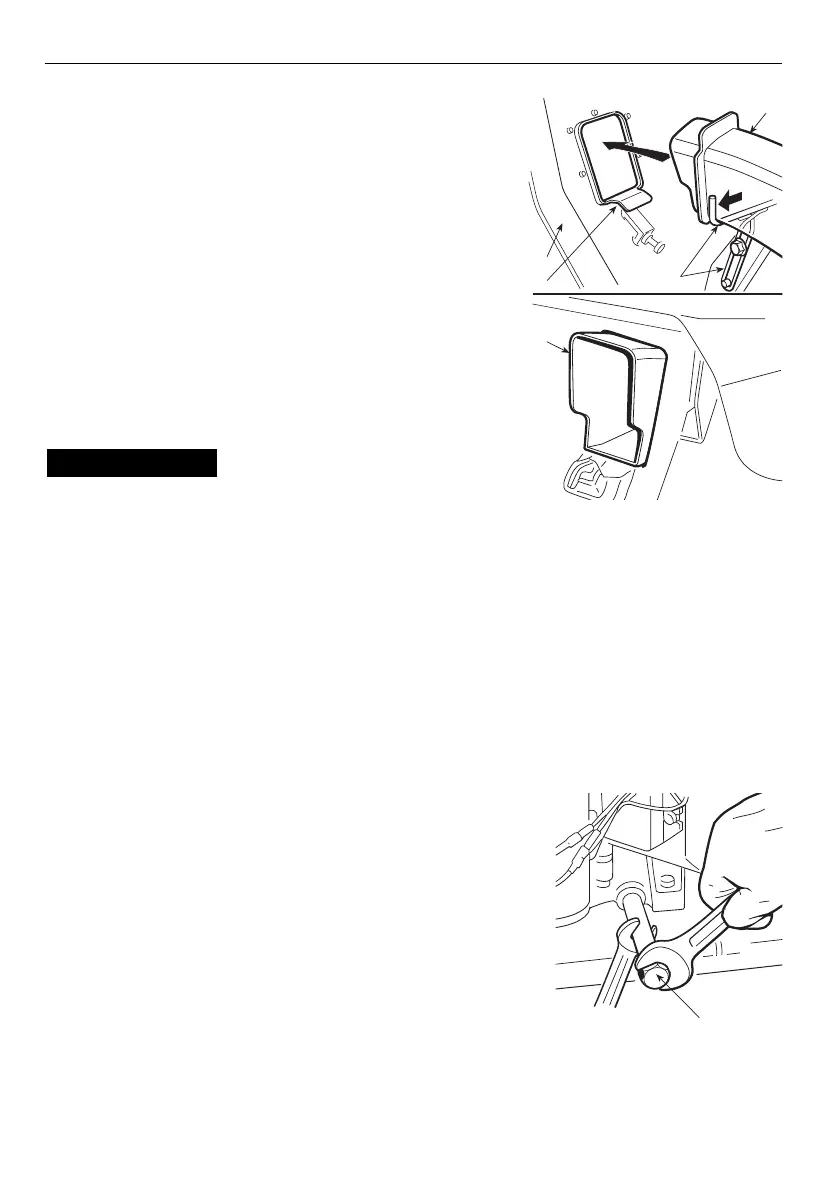

– check that the collector channel (8) is properly fit-
ted onto its support (9) and resting on the right-
hand guide;
– put the lever (3) into the «R» position and lower
the cover (1) to the height of the levers (3) and (6);
– first put the lever (6) into its housing followed by
lever (3). Lower the cover in line with the faste-
ning screw.
When the cover (1) has been
lowered check that:
– he channel exit (8) is correctly lined up with the opening in the rear
plate (10) and that it is resting on the support (11).
Then:
– fully tighten the fixing nut (5);
– put the lever (6) into the notch at position «7»;
– take the blocks (2) away, and reassemble the knob on the lever (3) and the
access hatch (4).
E
NGINE
Follow the instructions in the engine booklet.
To empty the engine oil, unscrew the oil plug (1).
When refitting the plug, carefully re-position the seal.
REAR AXLE
These are permanently lubricated with grease that does not need changing.
!
WARNING!
ENG 30 MAINTENANCE
