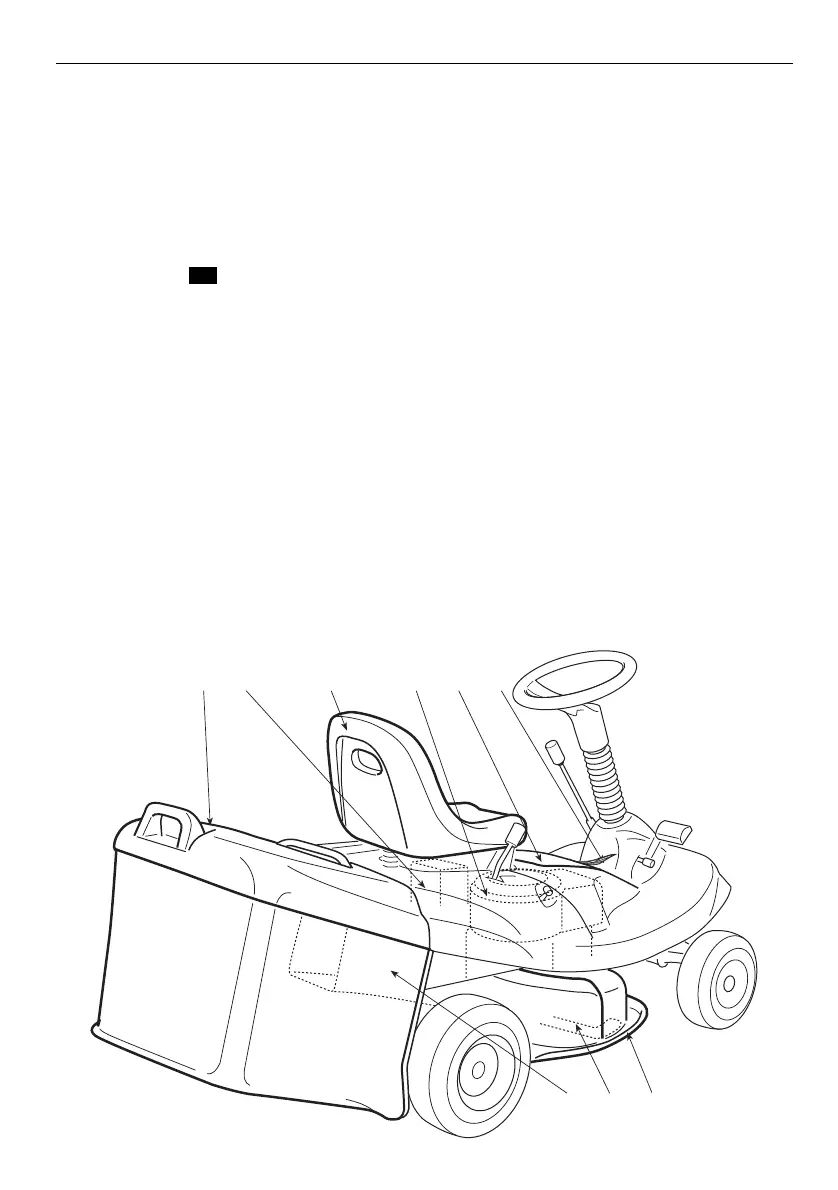

13. Collector channel: this is the part connecting the cutting deck to the grass-
catcher.
14. Grass-catcher: as well as collecting the grass cuttings, this is also a safety
element in that it stops any objects drawn up by the blade from being thrown
outside of the machine.
15. Engine: this moves the blade and drives the wheels. Its specifications and
regulations for use are described in a specific manual.
16. Batteria ( only in the electric start models): provides the energy for
starting the engine. Its specifications and regulations for use are described in
a specific manual.
17. Driver seat: this is where the machine operator sits. It has a sensor which
detects the presence of the operator and acts as a safety device.
18. Labels for regulations and safety: give reminders on the main provisions
for working safely, each of which is explained in chapter 1.
19. Engine cover: for access to the engine
➤
EN 7IDENTIFICATION OF THE MACHINE AND COMPONENTSI
