Hawk 5 PRO VTX Settings

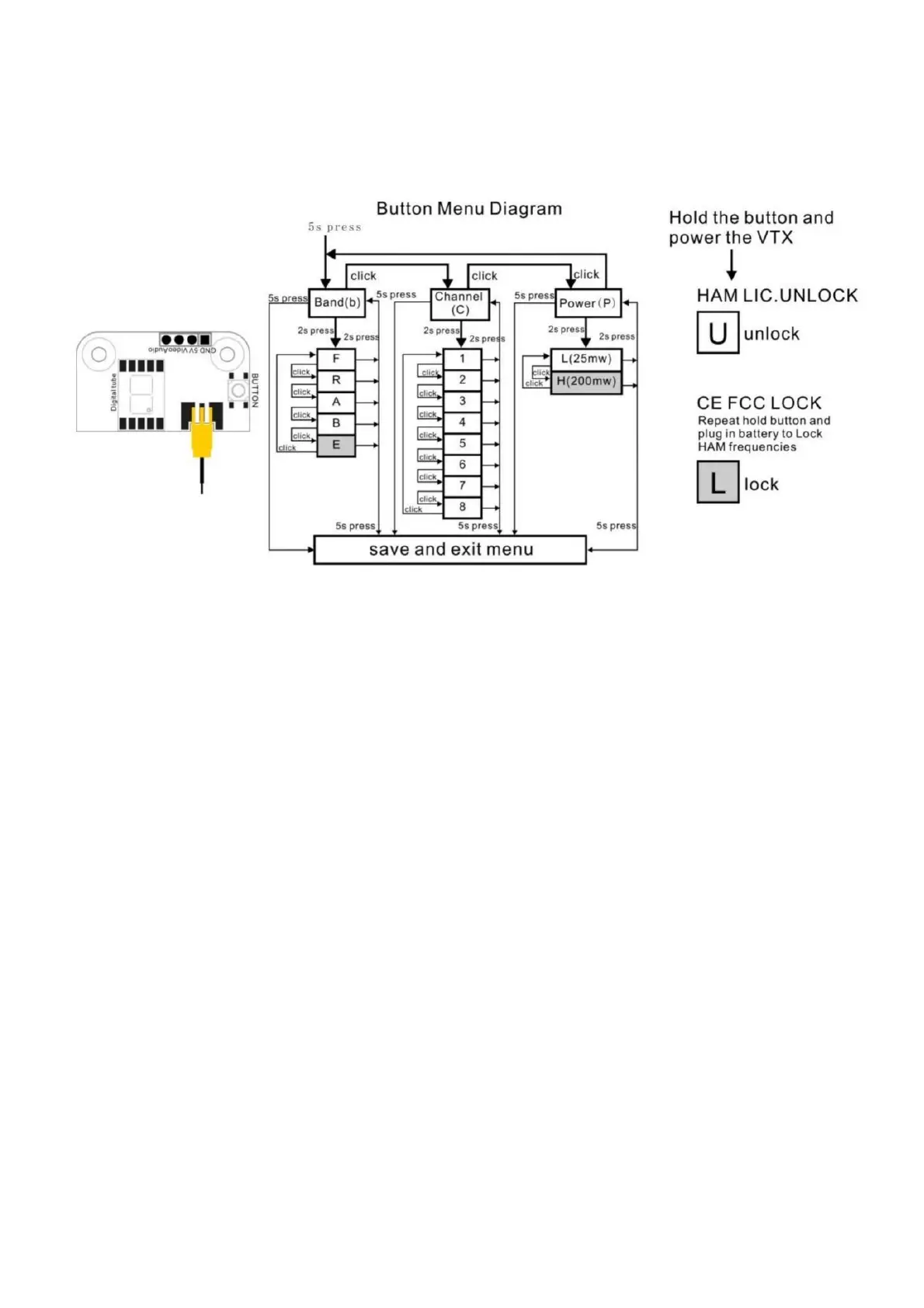

Vtx Schematic and Button Diagram
VTX Channel Settings with the Button
1. Normal display
The display will cycle between showing band and channel. If the red dot is on in the
lower right corner, that means the vtx is in high power mode (200 mW). Otherwise it
is in low power mode (25 mW).
2. Menu Entry / Exit
(1)Press the button and hold for 5s to enter the top level menu.
(2) Press the button and hold for 5s again to save changed parameters.
3. Band, Channel, and Power parameter change
(1) Once entered top level menu, press the button to cycle through the 3 menu
options: band “b” , channel “c”, and power “p”.
(2) Press the button for 2s for one of the 3 top level menu selections to enter sub
menu.
(3) Once in the sub menu, press the button to cycle through the options.
(4) Set the selected option by holding the button again for 2s and will exit to top
menu
(5) Continue cycling through other parameters if desired and press the button for 5s
to save and exit.
