Emax Nanohawk 1S User Manual

Nanohawk
2
emax-usa.com

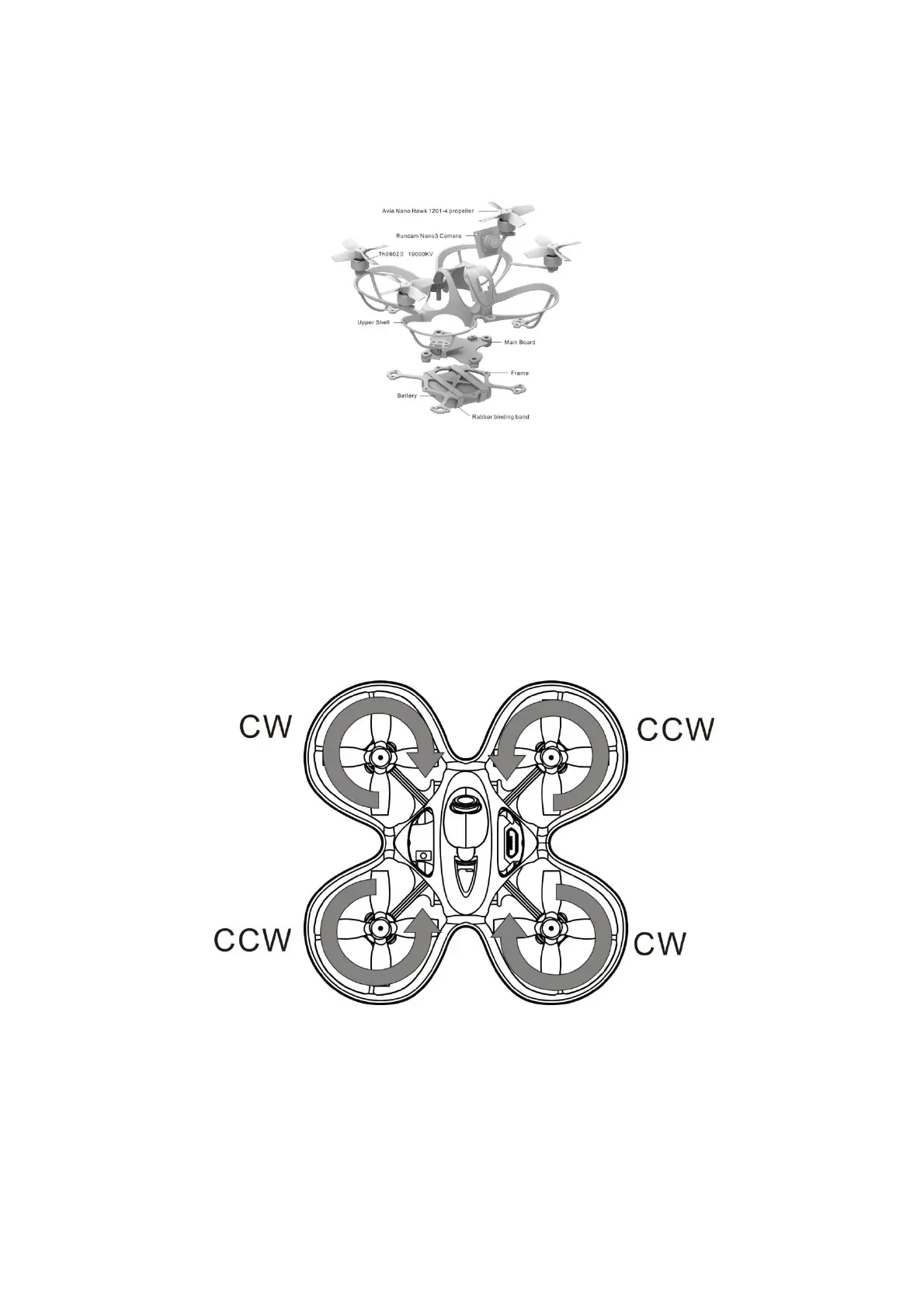

Nanohawk Structure
Nanohawk
Propeller Direction and Mounting
There are 2 spinning directions for Nanohawk propellers, Clockwise (CW) and
Counter-Clockwise (CCW). When Buying a set of propellers, 2 CW and 2 CCW will
be given. The blunt leading edge indicates the direction the propeller is suppose to
rotate as compared to the sharp trailing edge. When mounting propellers please
make sure the correct orientation shown in the diagram below.
Caution: Failure to mount the propellers in the correct orientation will cause
Nanohawk to not fly correctly and with no control. Please double check for the
correct orientation.
1. Line up the 3 struts of the propeller with the 3 struts on the motor bell.
2. Press on the propeller while supporting the backside of the motor with our
fingers.
3. Press on until the motor shaft is flush with the propeller.
