EMC Rails and Enclosures (CX3-10 Class and CX3-20 Class Storage Systems) Field Installation Guide
Installing a 3U disk enclosure (DAE3P) in a cabinet

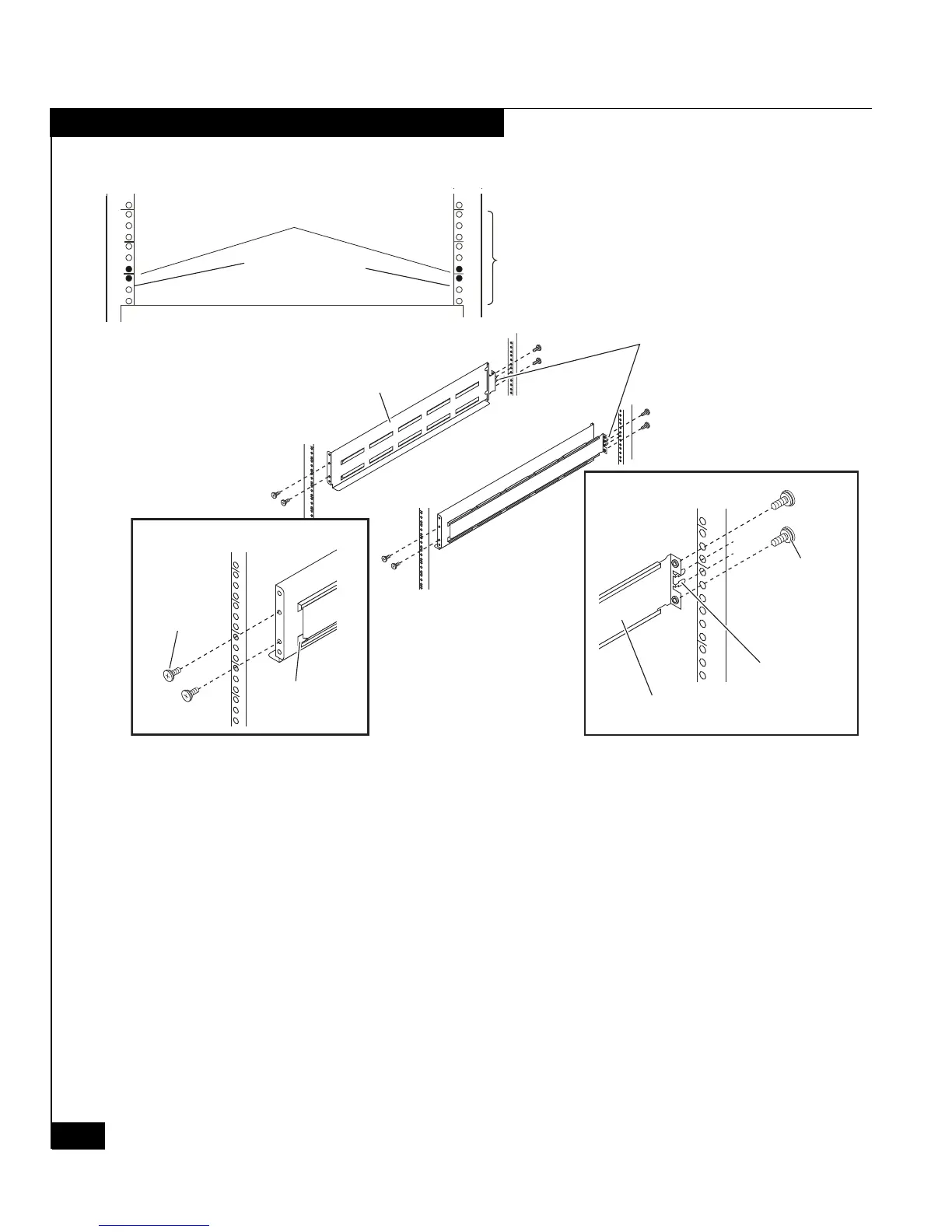

Figure 13 Installing the adjustable mounting rails
Alignment Pins
Here
EMC2892a
3U
Rear Channels
EMC3452
Right rear
Screw (2)
Alignment
pin (2)
Mounting rail
Alignment pins
Adjustable rail
Right front
Mounting rail
Screw (2)
