EMC Rails and Enclosures (CX3-10 Class and CX3-20 Class Storage Systems) Field Installation Guide
Installing a 1U storage processor enclosure (SPE3) in a cabinet
Installing a 1U storage processor enclosure (SPE3) in a cabinet
Follow the steps below to install a 1U SPE3 device in a standard 19"
NEMA cabinet.
Enclosure mounting kit
Before you start, be sure you have all the materials listed in Table 3.
Tools are not part of your purchased enclosure assembly.
Installing the adjustable rails
1. Locate and unpack the rail kit that accompanied your enclosure.
The front edge of each rail is stamped L or R for left and right
sides, when they face the cabinet front.

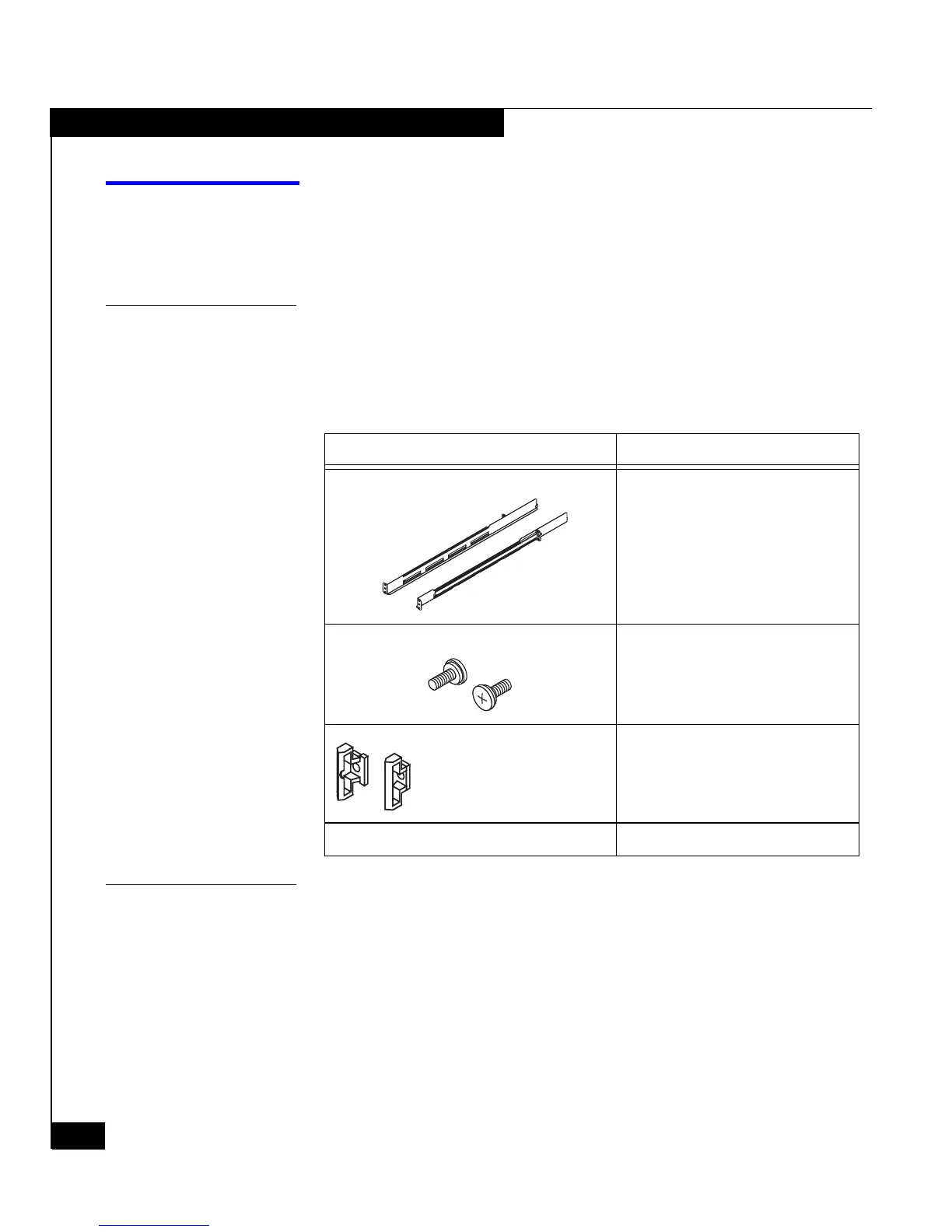

Table 3 Enclosure mounting kit materials
Component Use
2 adjustable rails (20.5-34 inches) Attach front to back on either side
between NEMA channels in a standard
19" cabinet
Ten (10) Phillips M5 12.7 mm screws Attach the rail mounting hardware in a
40U cabinet
2 latch brackets
Secure 1U bezel in 40U cabinets
1U bezel (front rack panel) with keys EMI shielding
EMC3429
(L)
(R)
