26
EMC Rails and Enclosures (CX3-10 Class and CX3-20 Class Storage Systems) Field Installation Guide
Installing a 3U disk enclosure (DAE3P) in a cabinet

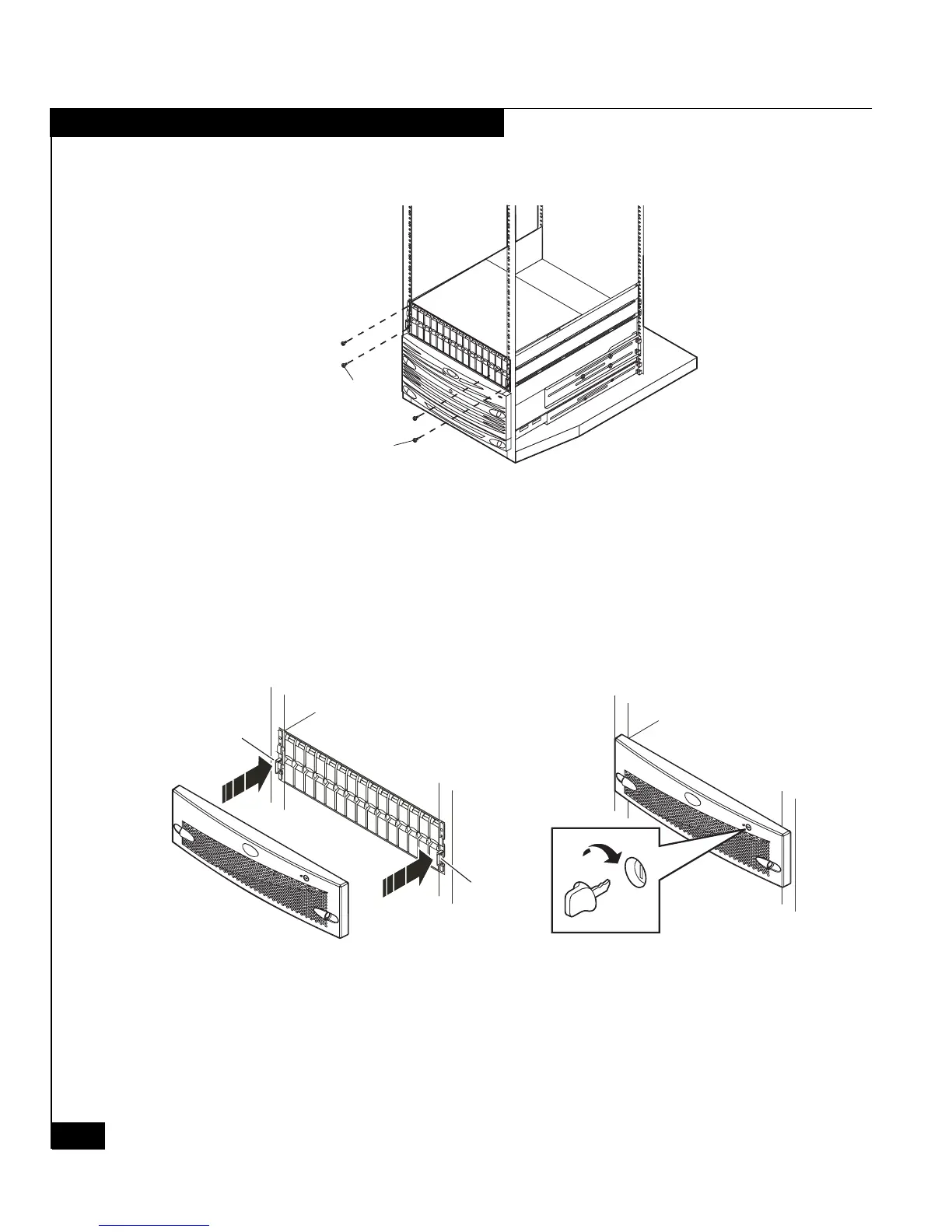

Figure 16 Securing the enclosure to the channels
4. Make certain disk drives or filler panels are installed in every disk
enclosure slot.
5. Press the front bezel onto the latch brackets at the front of the
cabinet until it snaps into place, then lock the bezel with the key.
See Figure 17.
Figure 17 Attaching the enclosure front bezel
6. If you are installing another DAE3P in the cabinet, repeat the
procedure starting on page 20, stacking additional disk
enclosures above the DAE3P-OS.
EMC3491
Screw (2)
Screw (2)
Rear
Front
EMC3457
Bezel
latch
bracket
Bezel
latch
bracket
