Installing a DC-AC inverter
DC-Powered VNX™ Series Enclosures Installation and Operation Guide 17
8. If necessary, use one Phillips M5 x 16-mm screw to secure a latch bracket to each
front channel. The brackets include small alignment bumps to correctly orient
them to the channel.
9. Press the bezel onto the latch brackets until it snaps into place.

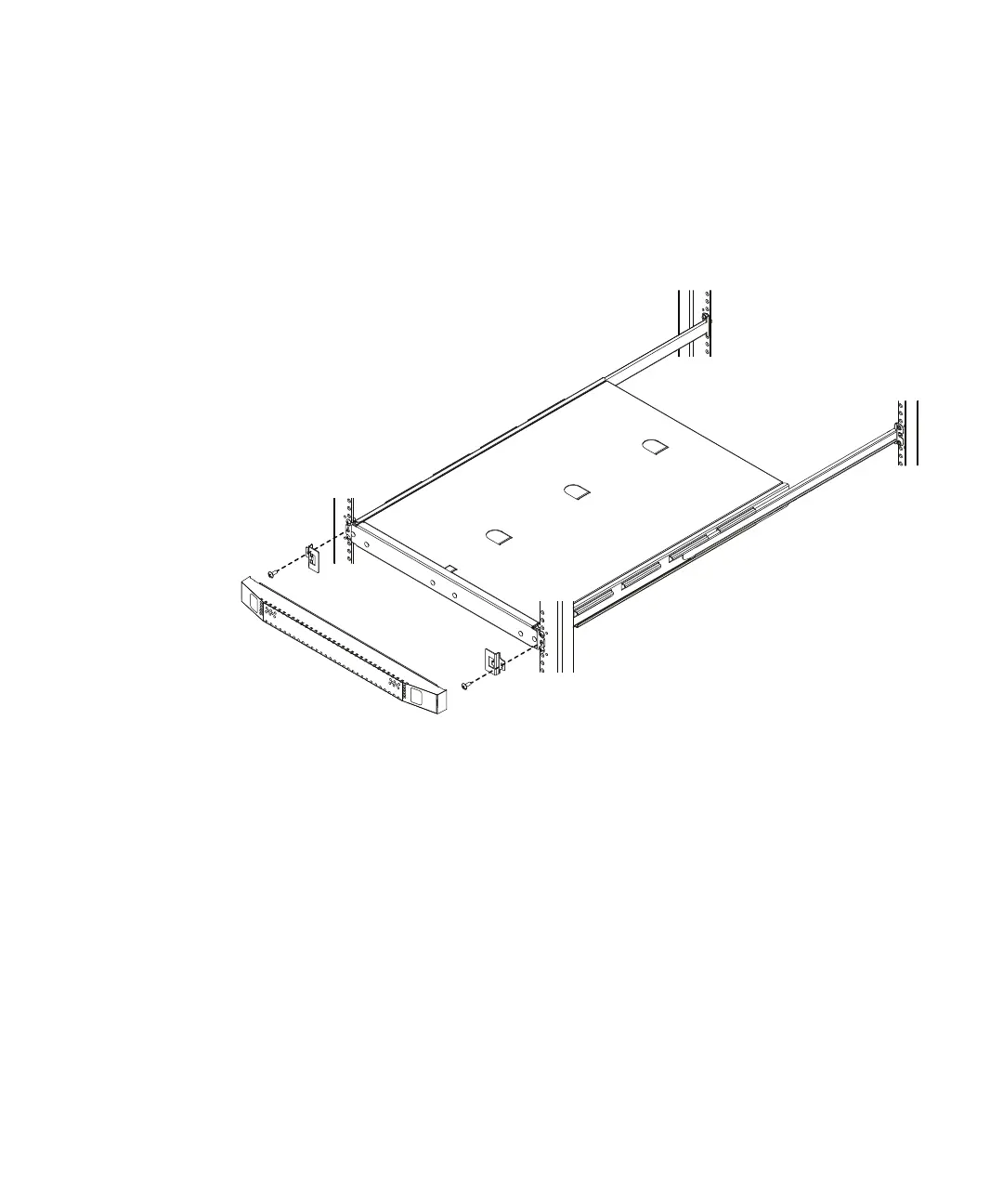

Figure 13 Installing latch brackets and bezel
CL5400
