16 DC-Powered VNX™ Series Enclosures Installation and Operation Guide
Installing a DC-AC inverter
7. When each assembly is fully seated into the rear bracket/notch and flush with the
mounting tray front, secure the inverter unit(s) to the tray by tightening the screws
as shown in Figure 12.

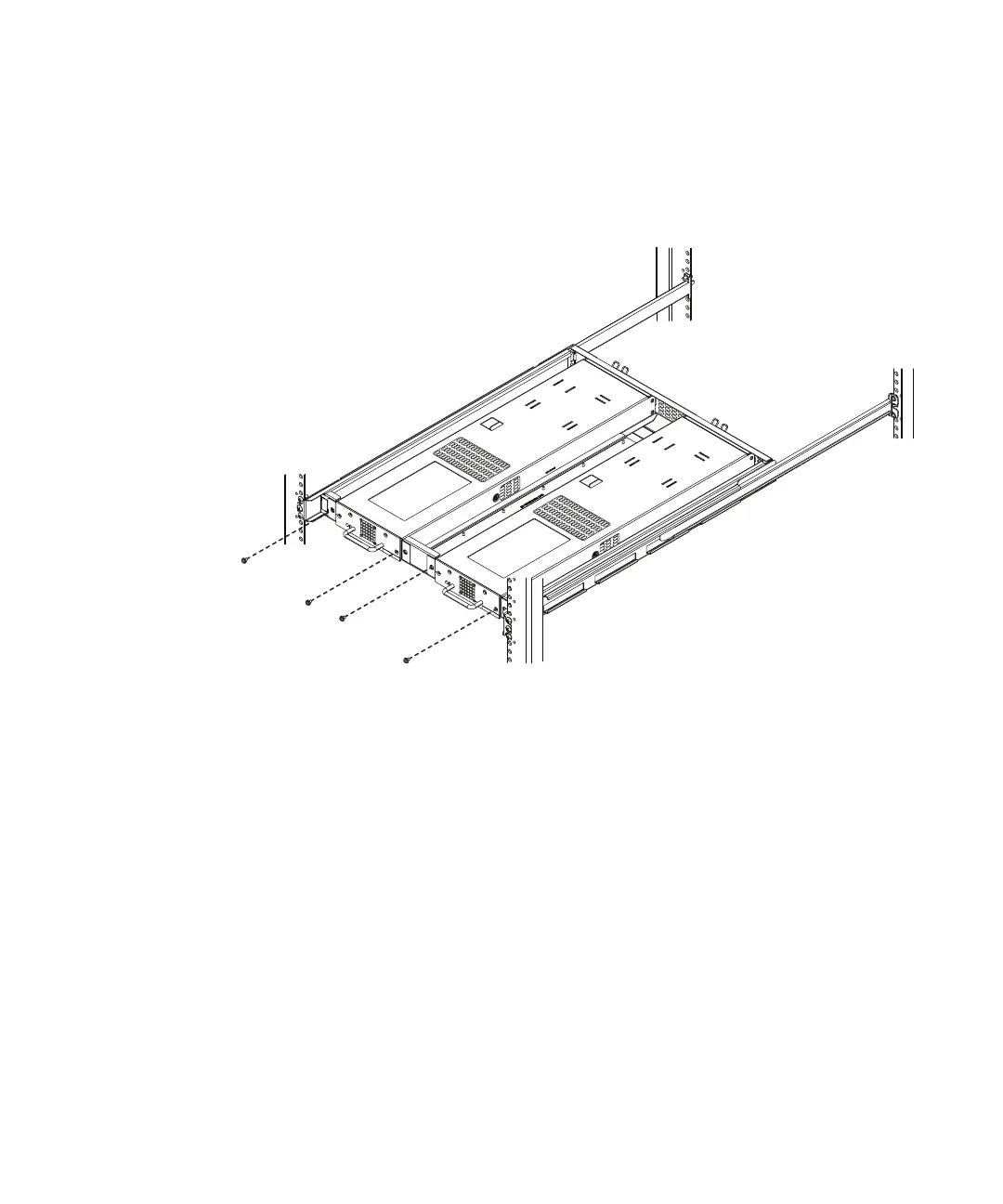

Figure 12 Securing inverters to the mounting tray
