5
9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34
L1 N2 3 4 5 6 7 8
Connections for JAPH / JARH / JACDIND / JACL / JASCL / JATEMP and PRO series

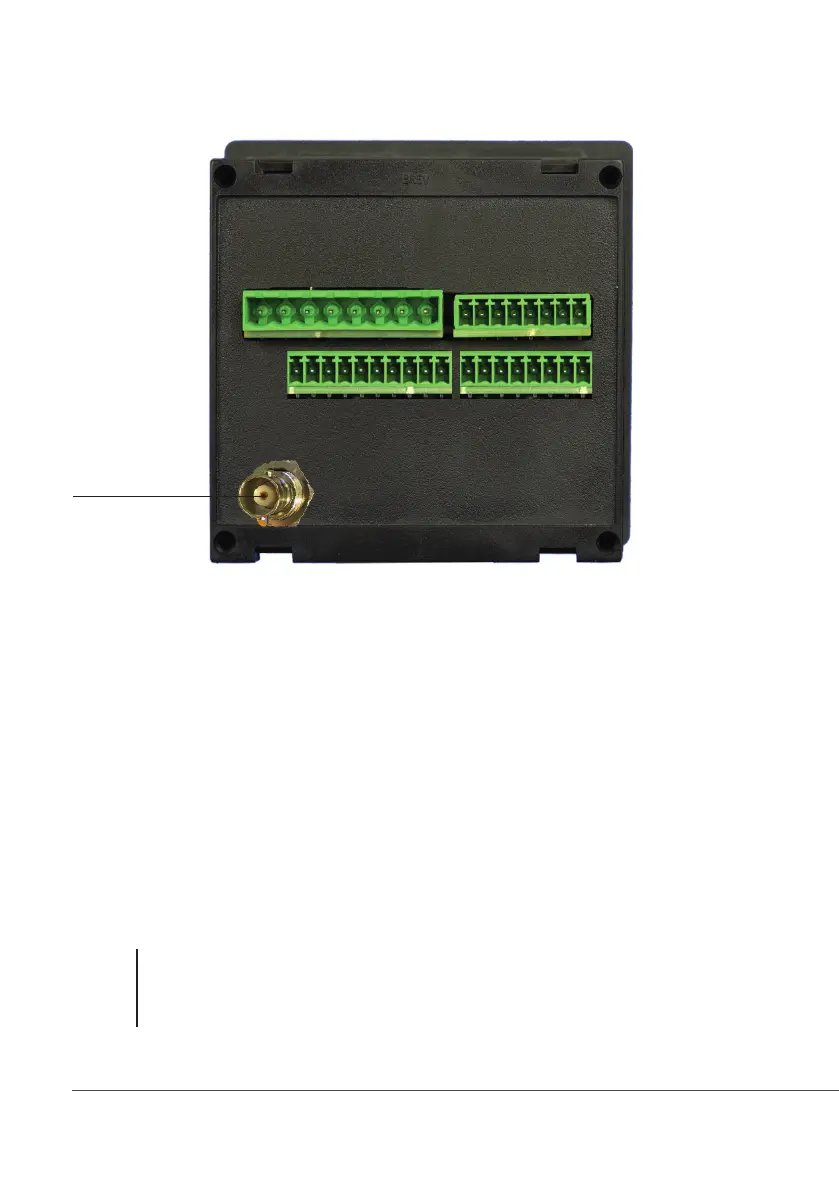

Unplug controller from main power supply then perform connections by following the picture below.
DC Version Model:
1(-) - 2(+): 12 or 24VDC (see controller’s label)
AC Version Model:
L(Live) - N(Neutral): 85÷264VAC or 18÷36VAC 50/60 Hz (see controller’s label)
3(Common) - 4(N.O.): Setpoint 1 Output (free contact output max 2A)
5(Common) - 6(N.O.): Setpoint 2 Output (free contact output max 2A)
7(Common) - 8(N.O.): Alarm Output (free contact output max 2A)*
9(-) - 10(+): Standby contact*
11(-) - 12(+): Opto coupled output NPN PULSE. To use with “IS” , “MF” , “PLUS” series pumps (max 50mA / 24VDC)*
13(GND) - 14(- Blue) - 15(Black) - 16(+ Brown): Proximity sensor mod. “SEPR” (dont’ remove jumper on blocks 13 and 14)
17(-RS485) - 18(+RS485): RS485 (Modbus / Communication)*
20(Black - Blue) - 21(Grey or Green) - 22(Red): Inductivity probe input (JA CDIND models only)
23(-485 Green) - 24(+485 White) - 25(GND Black) - 26(+5V Red): SCL probe input (JA CL models only)
27(+) - 28(-): ECL6 probe input (JA CL models only)
29(Green) - 30(Pink) - 31(White) - 32(Yellow): PT100 temperature probe (remove jumper / resistor when probe is installed)
29/30(White) - 31/32(Black): temperature from inductivity probe
29(Green) - 30(Brown) - 31(White) - 32(Yellow): PT100 temp. probe (remove jumper / resistor when probe is installed)
33(+) - 34(-): mA Current Output (Max resistive load: 500Ohm)
Warning: Connections must be performed by qualified and trained personnel only
*Some functions aren’t available on standard models (see page 25)
Probe connector for
pH or ORP model only
ECDIND PT
ECDSIND PT
PH/RH/CL
