Once verified previous steps proceed as follows:
- check that “BNC” of level probe has been connected as described in “Hydraulic
Installation” chapter.
- connect “BNC” and external signal to pump’s “INPUT” connectors.
This input may be used as follows:
- as pulse sender water meter or
- as startup contact for “BATCH” mode or
- as voltage input for “VOLT” mode or
- as current input for “mA” mode

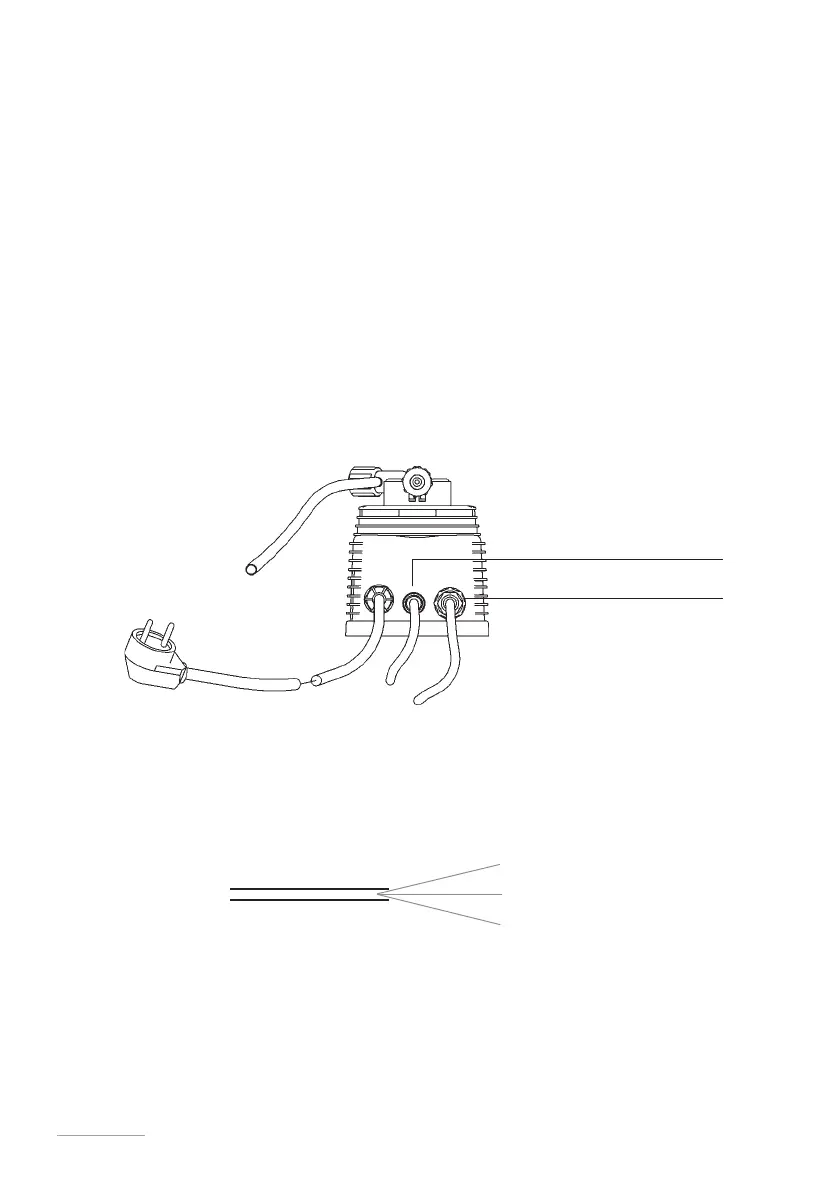

Level probe input
External signal input
PUMPS WITH PULSE EMITTER WATER METER WITH HALL EFFECT
External signal has got a three-wires connection:
If the pulse emitter water meter is supplied with metering pump external signal will be an MPM
connector for water meter connection. For mailn board connection see on page 44.
NOTE: Pumps with pulse emitter water meter with Hall effect exclude BATCH, VOLT and mA working
modes.
white - signal
yellow - ground
brown - + 5V
