5. Installation Draw
Pump must be installed in a wall support at a maximum height (from tank’s bottom) of 1,5 meters.

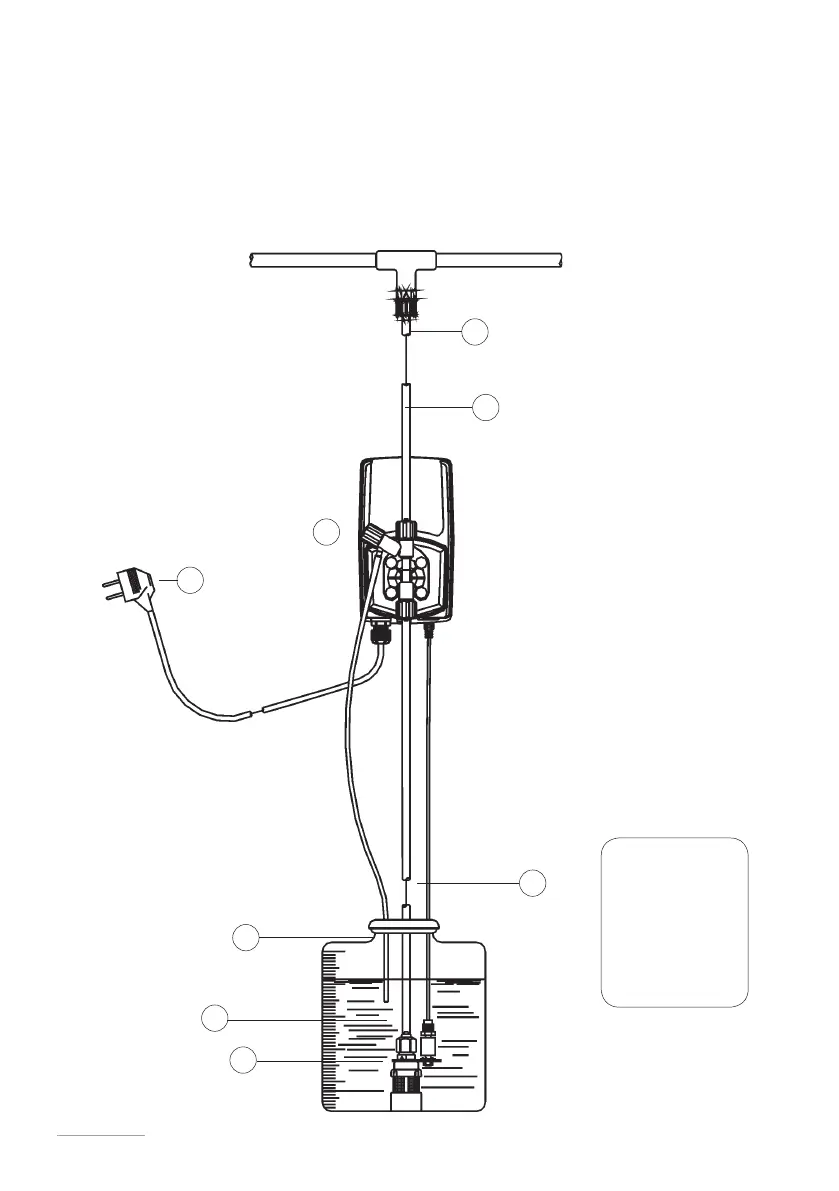

1 - Dosing Pump
2 - Suction Hose
3 - Delivery Hose
4 - Injection Valve
5 - Air discharge
6 - Level Probe
7 - Foot Filter
8 - Power Cable
