Chapter 3 Operation
3.1 Local Controls And Indicators
3.1.1 Front Panel

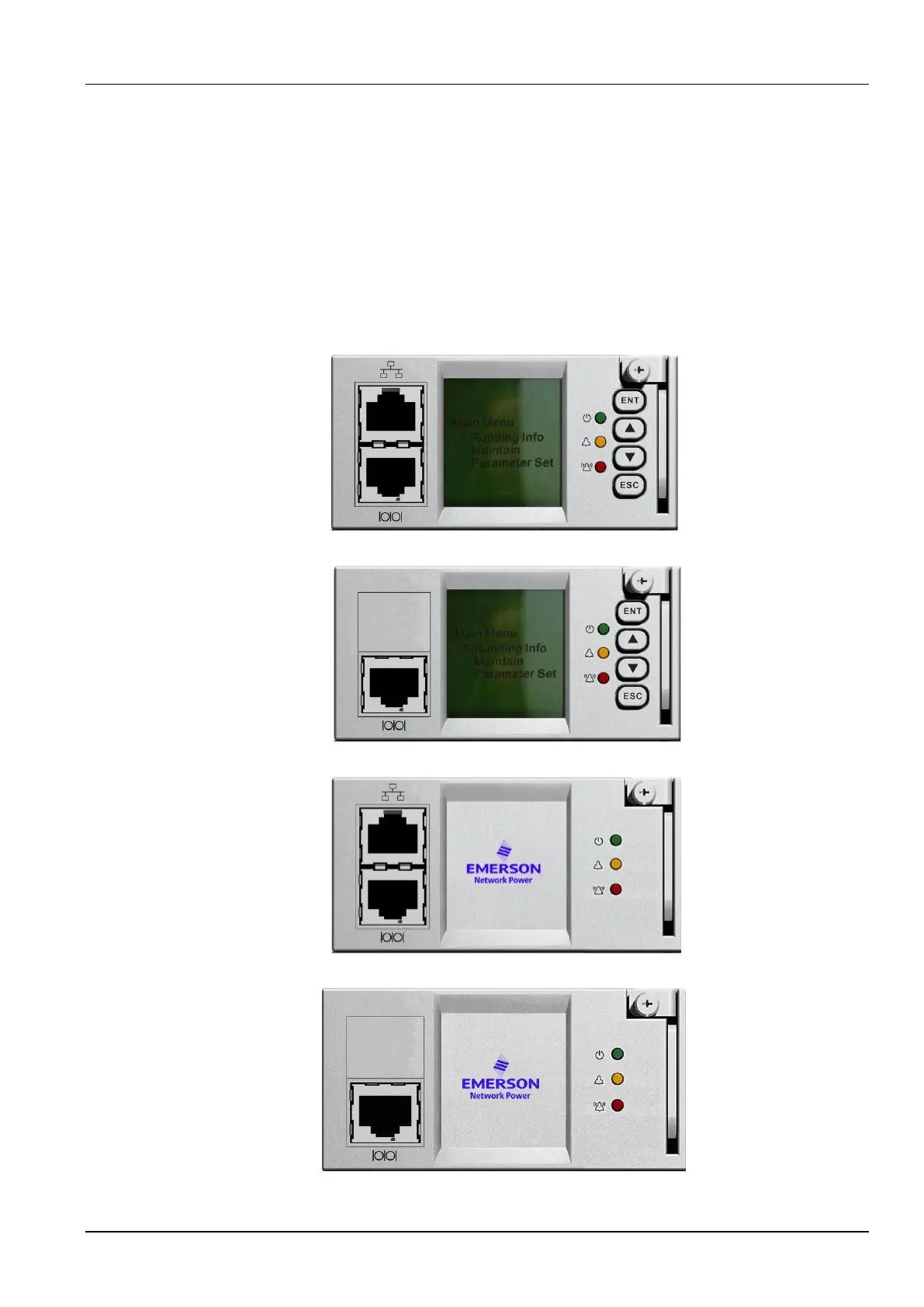

The controller is offered in four different Models. Each Model provides different features. Refer to Figure 3-1 to Figure
3-4 for a front view of each Model.
Figure 3-1 Front Panel of Controller Model M221S
Figure 3-2 Front Panel of Controller Model M222S
Figure 3-3 Front Panel of Controller Model M223S
Figure 3-4 Front Panel of Controller Model M224S
