October 2014
4
Quick Start Guide
Step 1: Initial connection and configuration
To configure the Emerson Smart Wireless Gateway 1410, a local connection
between a PC/Laptop and the Gateway needs to be established. The 1410 and the
1410D are operationally equivalent and the following instructions are applicable
to both models.
Powering the gateway
Bench top power will be needed to power the Gateway by wiring a 24 VDC
(nominal) power source, with at least 250 mA, to the power terminals.

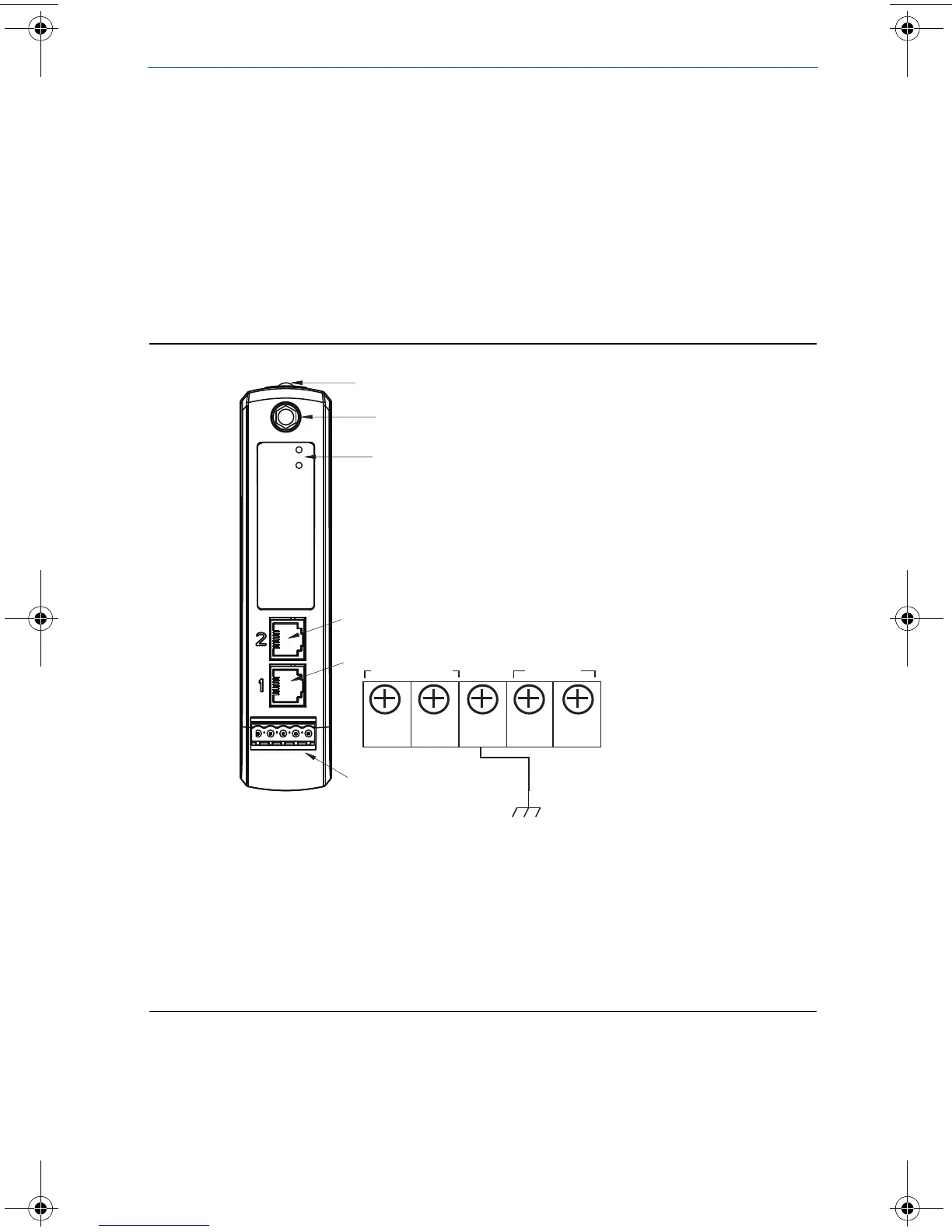

Figure 1. 1410 Housing Diagram
A. DIN Rail clip
B. SMA to N type connection
C. Power and Reset indicator lights. During normal operation the power indicator will be green.
During a reset the reset light will turn red. The reset switch should not be enabled during normal
operation.
D. Ethernet port 2. This secondary port must be enabled when ordering to access the device.
When this port is activated, the factory IP address is 192.168.2.10. See Table 1 on page 6.
E. Ethernet port 1. Use for standard communication to the webserver or other protocols enabled
on the gateway. The factory IP address is 192.168.1.10. See Table 1 on page 6.
F. 5-screw analog terminal block female. Black terminal block included in the box.
+
-AB
24 VDC
(nominal)
Power Input
Serial
Modbus
S
Power
Reset
A
B
C
D
E
F
00825-0200-4410_CA.fm Page 4 Thursday, October 16, 2014 6:44 PM
