6
ETL Model No.: CF717

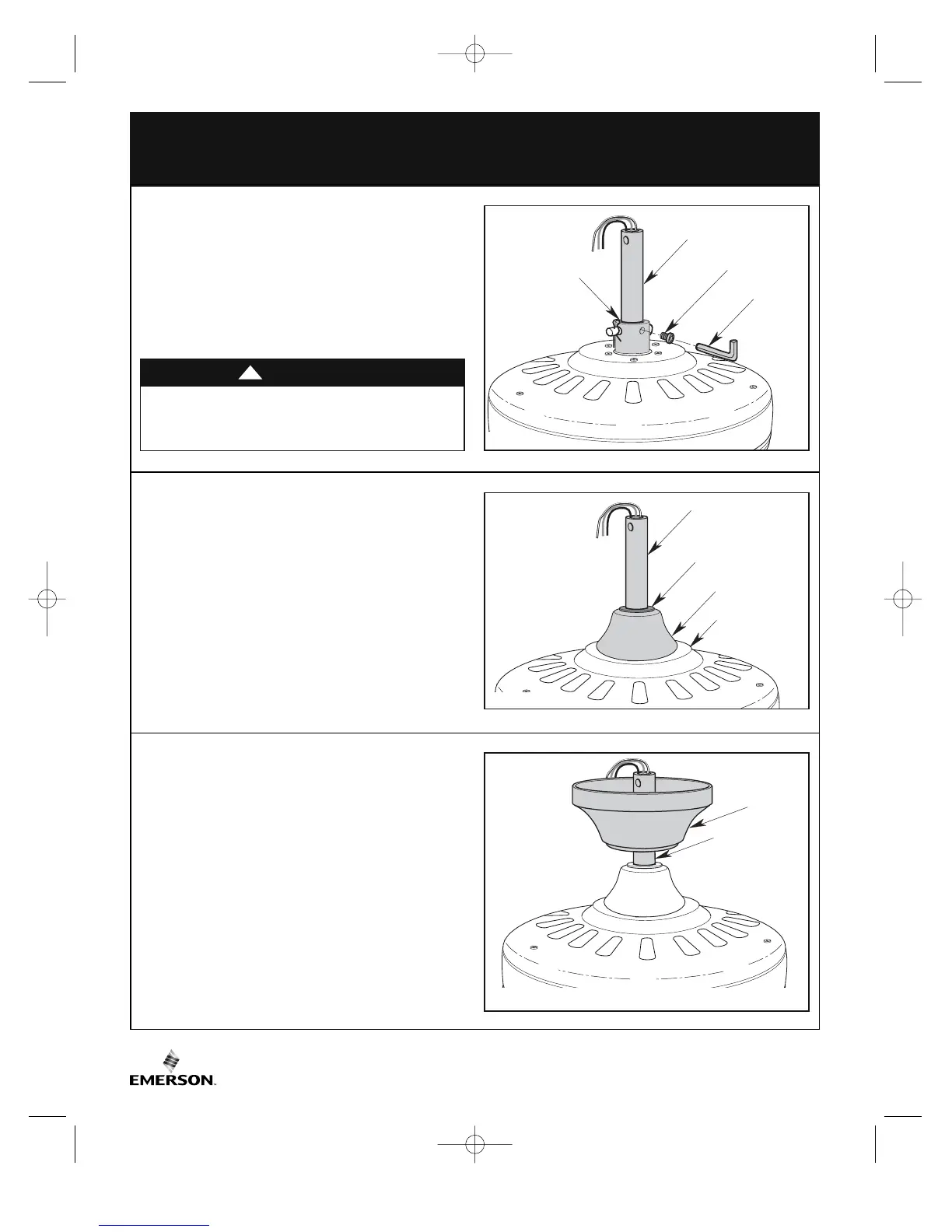

3. Installing Hanger Ball/Downrod Assemby
(For Standard Mounting) (continued)
It is critical that the clevis pin in the motor coupler is
properly installed and the setscrews securely
tightened. Failure to verify that the pin and setscrews
are properly installed could result in the fan falling.
WARNING
!
MOTOR
COUPLER
SETSCREWS (2)
DOWNROD
5/32"
SETSCREW
WRENCH
Figure 3
3.3
Securely tighten the two setscrews into the motor
coupler until they rest against the downrod.
Pull up on the downrod to make sure the setscrews are
firmly installed against the downrod (Figure 3).
NOTE: The setscrew must be properly installed as
described above, or fan wobble could result.
GROMMET
COUPLER COVER
MOTOR HOUSING
DOWNROD
Figure 4
3.4
Make sure the grommet is properly installed in the
motor coupler cover then slide the motor coupler cover
on the downrod until it rests on the motor housing. Be
sure the motor coupler cover is oriented correctly
(Figure 4).
DOWNROD
CEILING
COVER
Figure 5
3.5
Pass the 42-inch long motor leads through the opening
in the ceiling cover.
Place the ceiling cover over the downrod. Be sure the
ceiling cover is oriented correctly (Figure 5).
BP7483 ASHLAND CF717 12/19/13 9:59 AM Page 6
