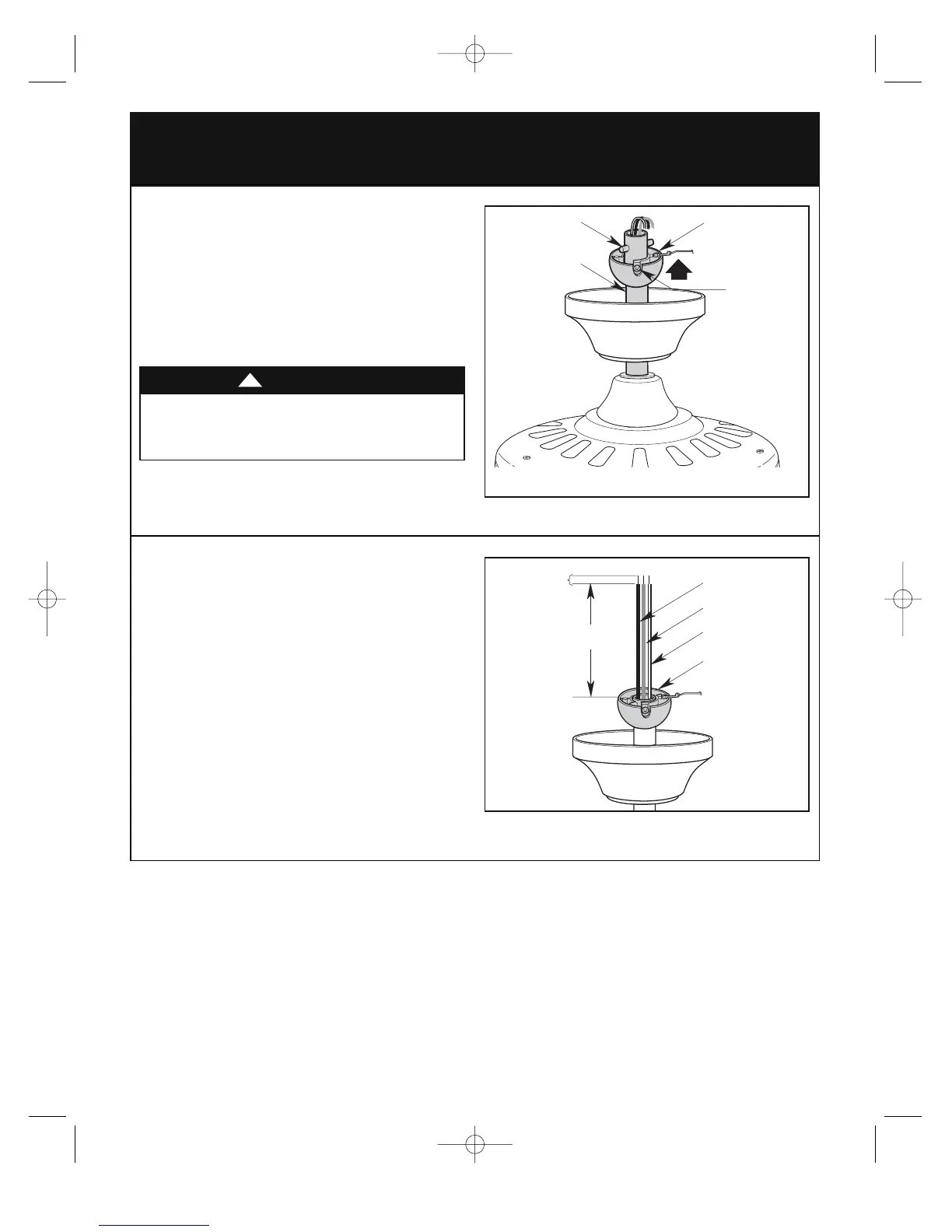

3. Installing Hanger Ball/Downrod Assemby
(For Standard Mounting) (continued)
7
emersonfans.com
Please contact 1-800-654-3545 for further assistance
ETL Model No.: CF717
3.6
Reinstall the hanger ball (Figure 6) on the downrod as
follows. Route the 42-inch motor leads through the
hanger ball. Position the pin through the two holes in
the downrod and align the ball so the pin is captured in
the groove in the top of the hanger ball. Pull the hanger
ball up tight against the pin and securely tighten the
setscrew in the hanger ball. A loose setscrew could
create fan wobble.
It is critical that the pin in the hanger ball is properly
installed and the setscrew securely tightened. Failure
to verify that the pin and setscrew are properly
installed could result in the fan falling.
WARNING
!
3.7
The fan comes with blue, black and white leads that are
42-inches long. Before installing the fan, measure up
approximately 6 to 9-inches above top of hanger
ball/downrod assembly (Figure 7). Cut off excess leads
and strip back insulation 1/2-inch from end of leads.
