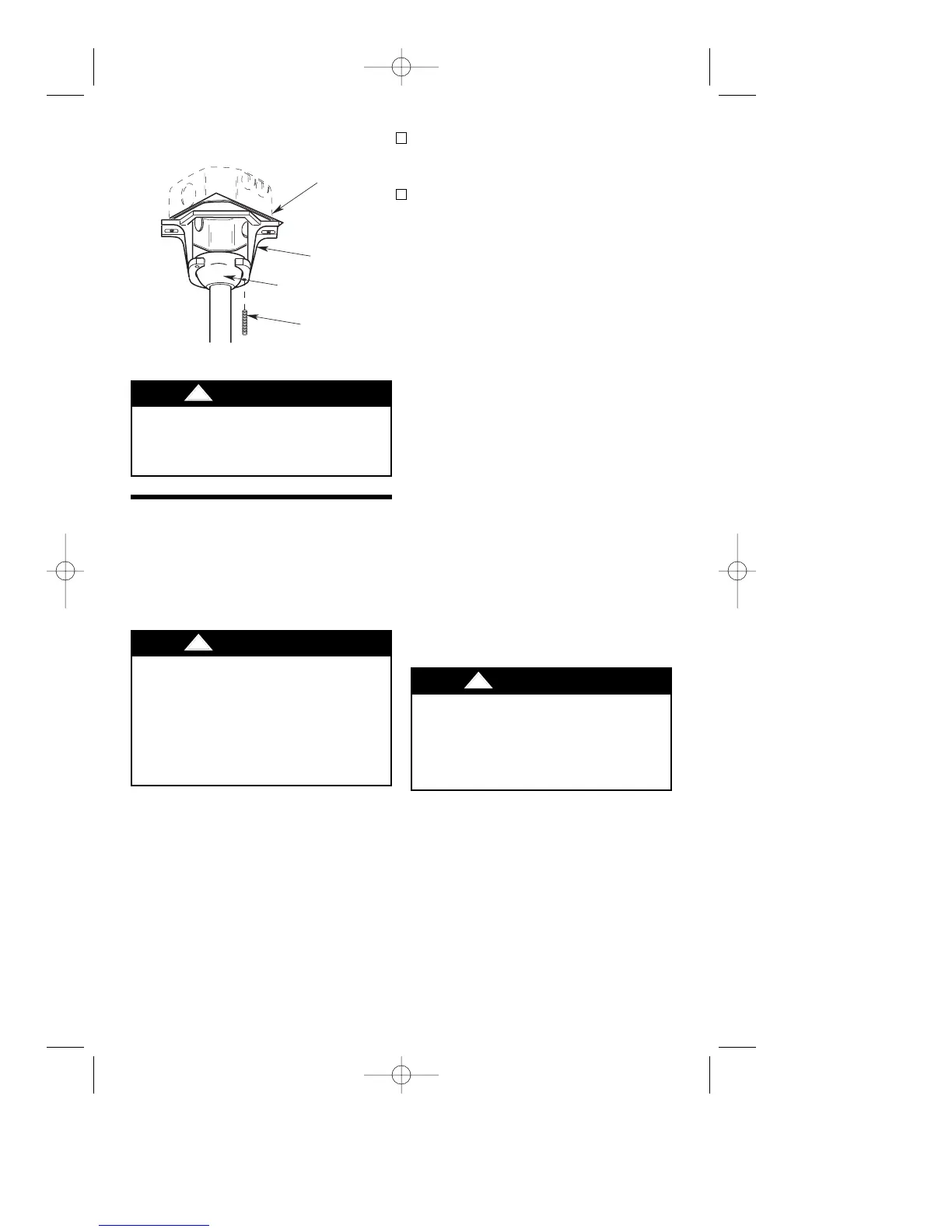

9
emersonfans.com
Please contact 1-800-654-3545 for further assistance
U.L. Model No.: CF144 & CF152

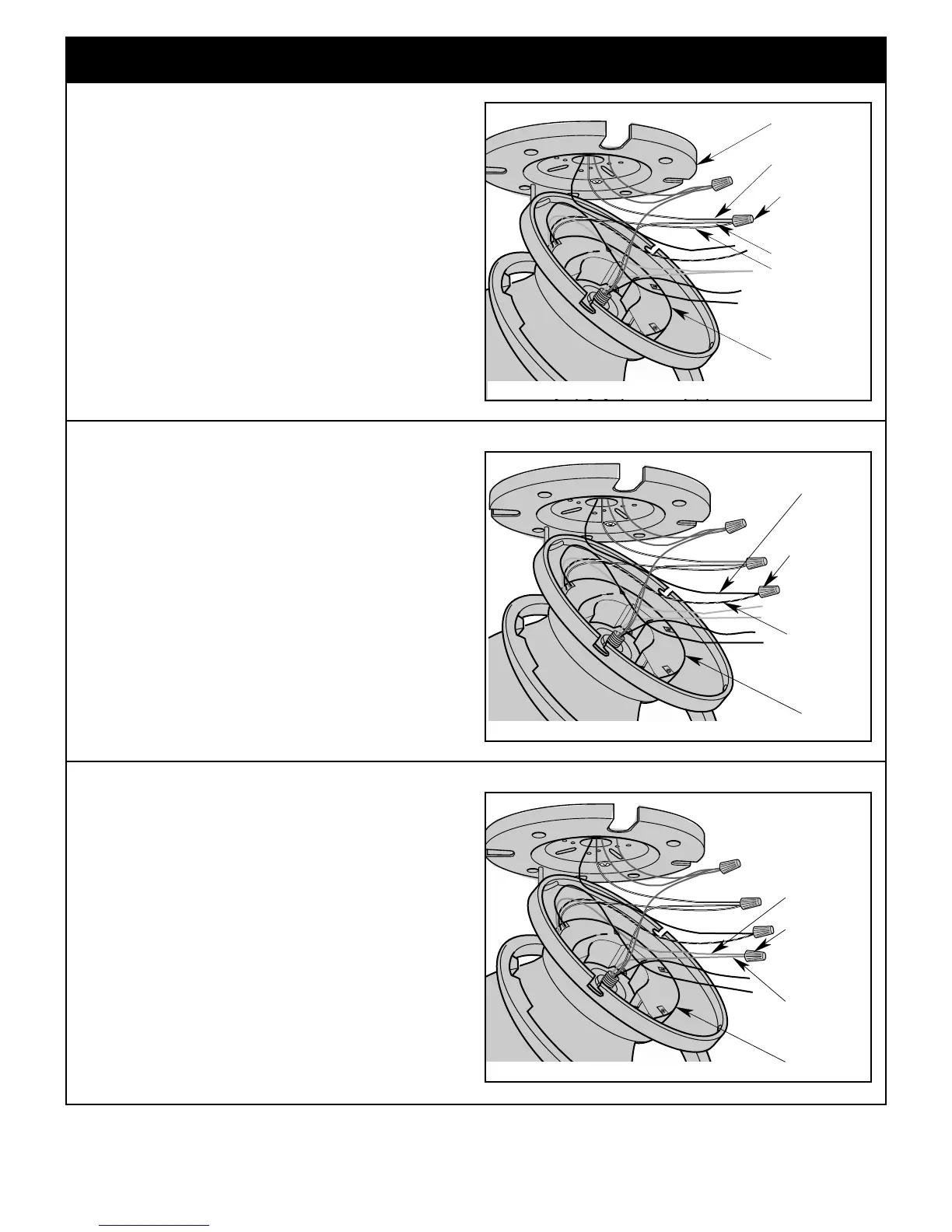

5. How to Wire Your Ceiling Fan (Continued)
5.3
Securely connect the supply white wire (neutral) to the
receiver white wire (AC IN N)/(TO MOTOR N) and white
f
an wire (neutral) using a wire connector (Figure 11).
S
UPPLY
WHITE WIRE
RECEIVER
RECEIVER
W
HITE WIRE
FAN WHITE
WIRE
WIRE
C
ONNECTOR
MOUNTING
PLATE
Figure 11
5.4
Securely connect the supply black wire to the receiver
black/white wire (AC IN L) using a wire connector
(Figure 12).
SUPPLY
BLACK
WIRE
RECEIVER
RECEIVER
BLACK/
WHITE WIRE
WIRE
CONNECTOR
Figure 12
5.5
Securely connect the fan motor blue wire to the receiver
blue wire (FOR BOTTOM LIGHT) using a wire connector
(Figure 13).
RECEIVER
BLUE WIRE
RECEIVER
FAN BLUE
WIRE
WIRE
CONNECTOR
Figure 13
