U.L. Model No.: CF144 & CF152
5. How to Wire Your Ceiling Fan
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring. All
wiring must be in accordance with National and
Local codes and the ceiling fan must be properly
grounded as a precaution against possible
electrical shock.
WARNING
!
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
CAUTION: To reduce the risk of electrical shock,
disconnect the electrical supply circuit before
installing the fan, light kit or receiver.
NOTE: Make all wiring connections using wire
connectors (supplied). Make sure that all connections
are tight, including ground, and that no bare wire is
visible at the wire connectors, except for the ground
wire.

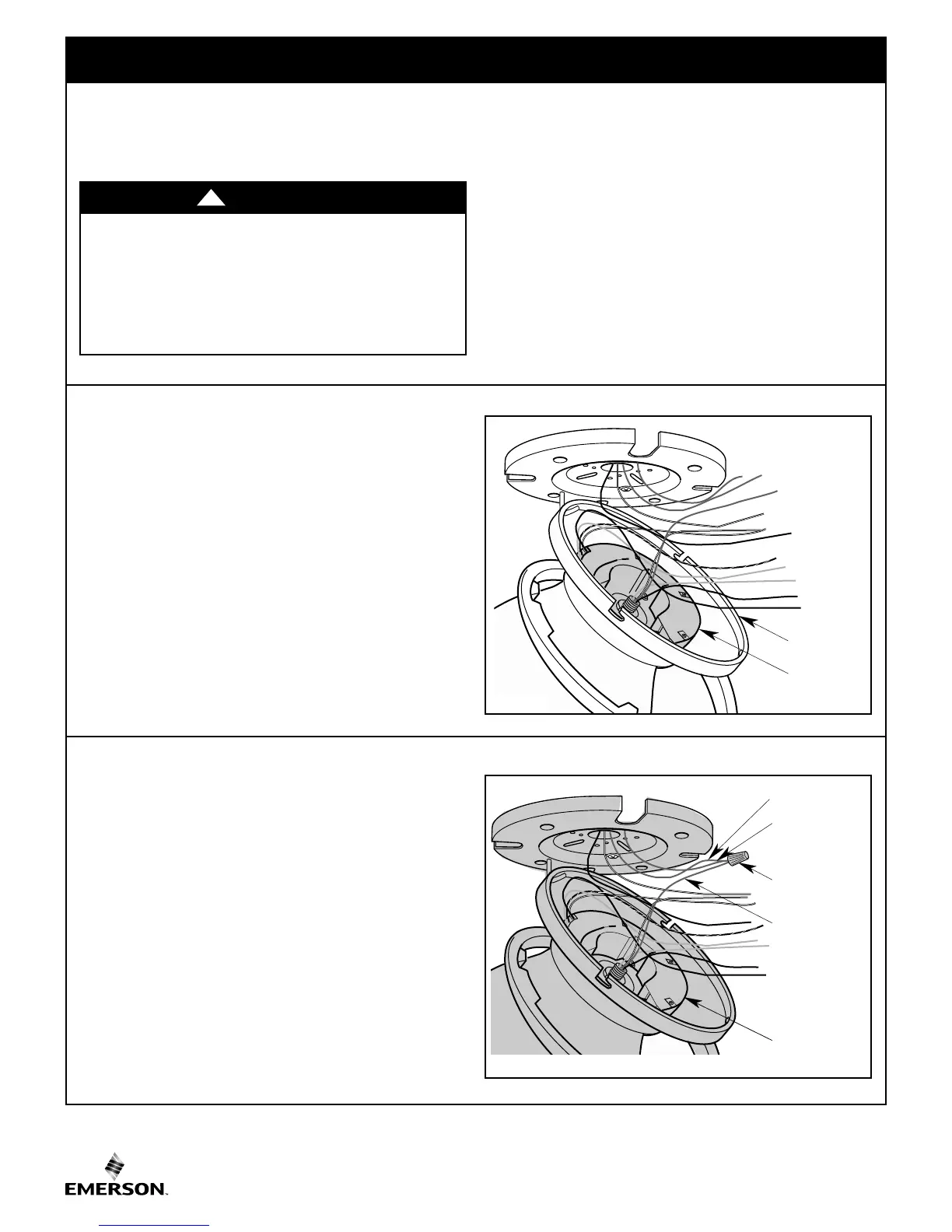

5.1
Position the receiver into the fan motor housing as shown
in Figure 9.
Refer to Figures 9 and 15 to connect the receiver wires to
the supply wires and the fan motor wires using the wire
connectors supplied with the fan as follows:
RECEIVER
FAN MOTOR
HOUSING
Figure 9
5.2
Securely connect the ceiling mounting plate green wire
and the supply green grounding wire (this may be a bare
wire or a wire with green insulation) to the fan assembly
green wire using a wire connector (Figure 10).
RECEIVER
SUPPLY GREEN
WIRE
FAN ASSEMBLY
GREEN WIRE
WIRE
CONNECTOR
CEILING
MOUNTING
PLATE GREEN
WIRE
Figure 10
To Next Page
