U.L. Model No.: CF144 & CF152
The outlet box and joist must be securely mounted and
capable of supporting at least 50 lbs. Use only a U.L.
outlet box listed as “Acceptable for Fan Support of
22.7 kg. (50 lbs.) or less”.
WARNING
!
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked “Acceptable for
F
an Support of 22.7 kg. (50 lbs.) or less”, and use screws
supplied with outlet box. Most outlet boxes commonly
used for support of light fixtures are not acceptable for
fan support and may need to be replaced. Consult a
qualified electrician if in doubt.
WARNING
!

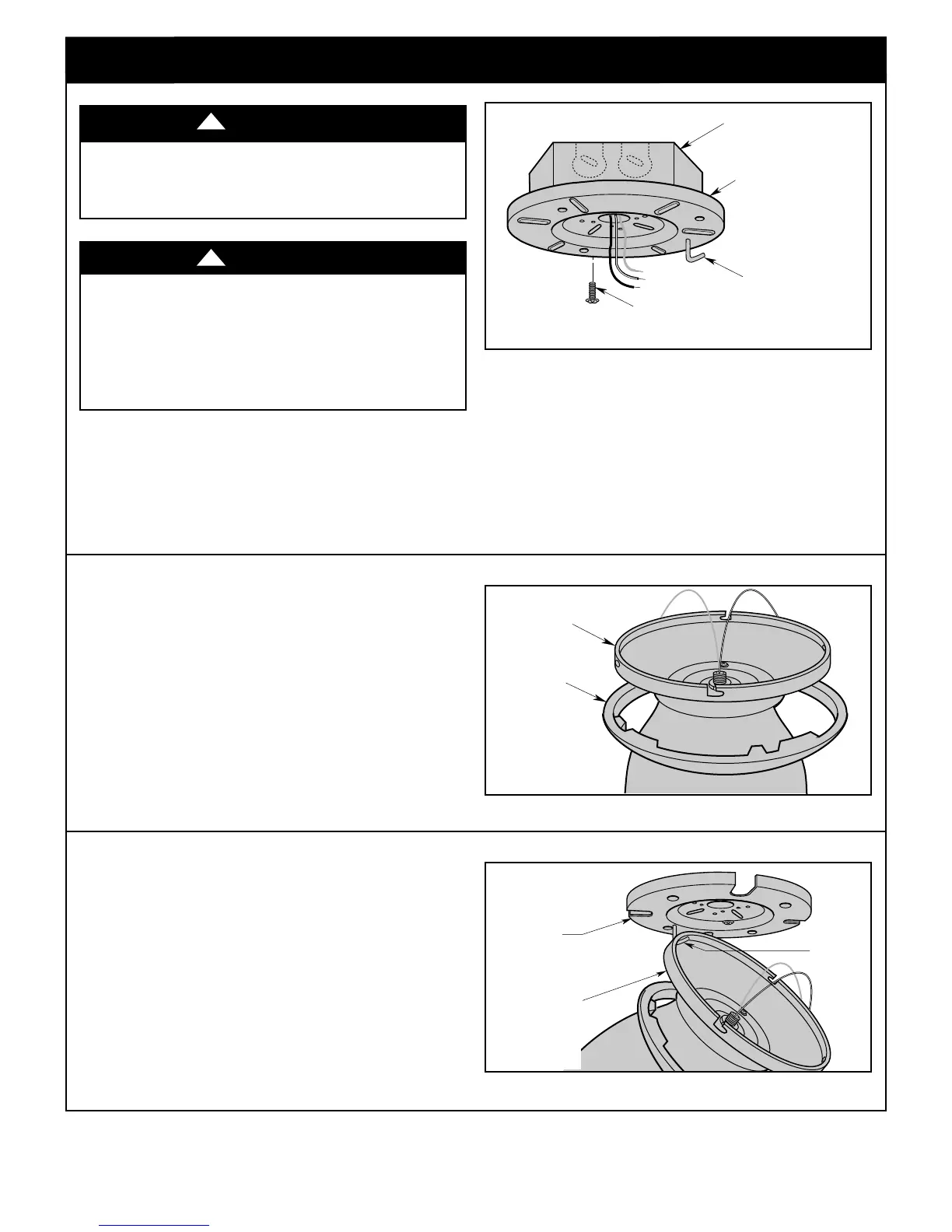

4.1
Disconnect electrical power to the branch circuit at the
circuit breaker or fuse box before attempting to install the
ceiling fan mounting plate on the outlet box.
4.2
Pull the electrical supply black, white and ground wires
through the center opening of the ceiling mounting plate
before securing the plate to the outlet box (Figure 6).
Position the ceiling mounting plate onto the outlet box and
secure using the two outlet box screws, supplied with
outlet box (Figure 6).
4.3
Slide the ceiling trim ring over the fan motor assembly and
let it rest on the motor assembly (Figure 7).
OUTLET BOX SCREWS (2)
CEILING MOUNTING
PLATE HOOK
CEILING MOUNTING
PLATE
OUTLET BOX
Figure 6
4.
How
to
Hang
Your
Cei
l
i
ng
Fan
(
C
o
n
t
in
u
ed
)
CEILING
TRIM RING
FAN MOTOR
ASSEMBLY
Figure 7
4.4
Place the motor assembly onto the ceiling mounting plate
hook during wiring fan motor assembly to outlet box
(Figure 8).
FAN MOTOR
ASSEMBLY
HOOK
CEILING
MOUNTING PLATE
Figure 8
