U.L. Model No.: CF144 & CF152
3. Ceiling Fan Assembly (Continued)
M4 x 10mm PAN HEAD
S
CREW
KEY HOLE SLOT (2)
L
OWER HOUSING
LIGHT KIT PLATE
DIMPLES
CUT OUT
NOTCHES

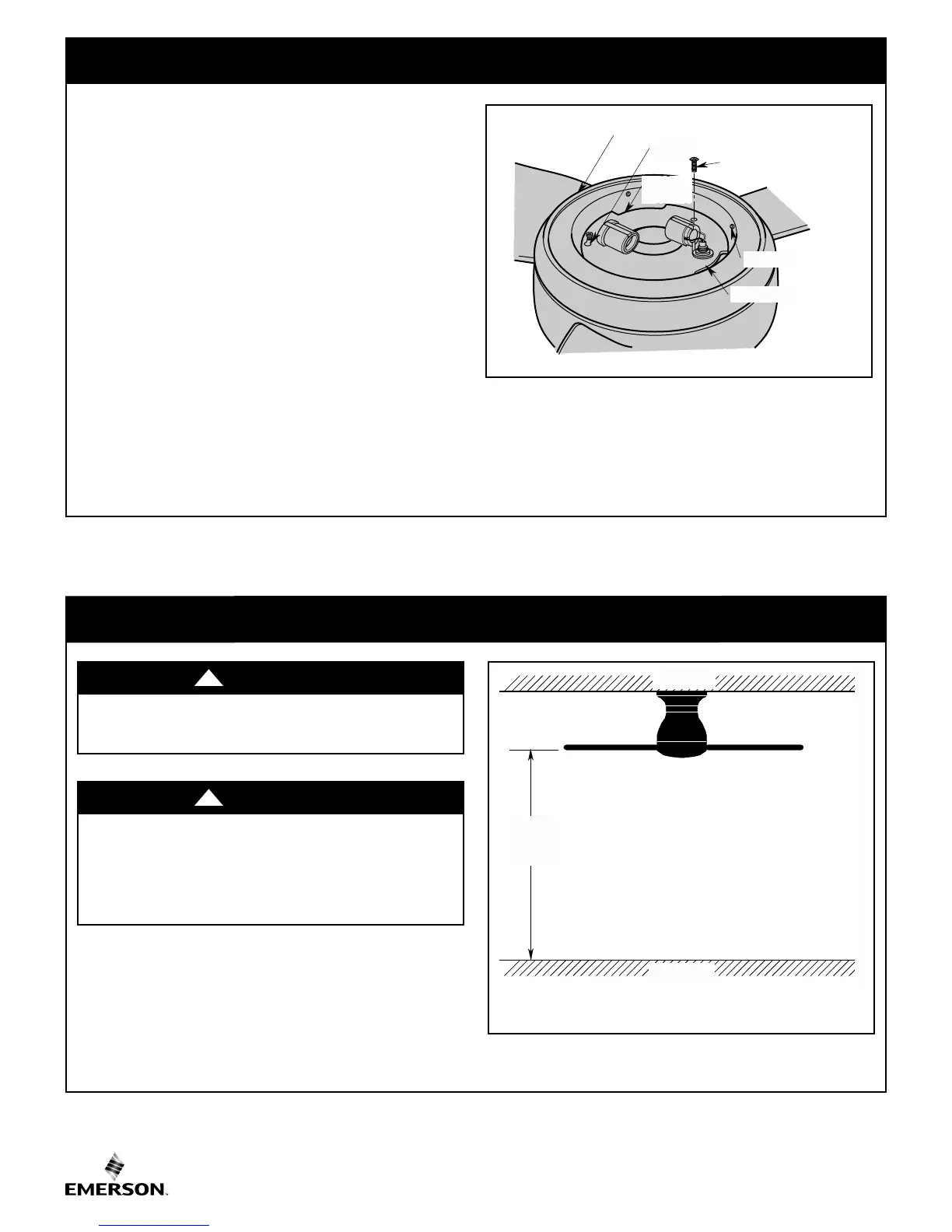

Figure 4
3.4
T
uck the wires and connectors into the fan housing.
Position the light kit plate into the fan housing by placing
the cut out notches over the fan housing dimples
(Figure 4).
N
OTE: Make sure all wires and connectors are tucked
under the light kit plate and not pinched between light
kit plate and fan housing.
Attach the light kit plate assembly to the lower housing by
aligning the two key slot holes of the light kit plate onto the
lower housing loosened screws (Figure 4).
Secure the light kit plate assembly by tightening the two
screws.
Reinstall the M4 x 10 mm pan head screw that was
previously removed.
A spare M4 x 10 mm pan head screw supplied in parts bag,
if needed.
Figure 5
4. How to Hang Your Ceiling Fan
The fan must be hung with at least 7' of clearance from
floor to blades (Figure 5).
WARNING
!
Turning off wall switch is not sufficient. To avoid possible
electrical shock, be sure electricity is turned off at the
main fuse box before wiring. All wiring must be in
accordance with National and Local codes and the ceiling
fan must be properly grounded as a precaution against
possible electrical shock.
WARNING
!
To Next Page
