CI-ControlWave EFM Installation & Operation / 2-57
Once the ControlWave EFM running its application load, status codes are posted to the
six Status LEDs on the PSSM. These Status LED (Hex) Codes are listed in Table 2-15 (see
Figure 2-47.

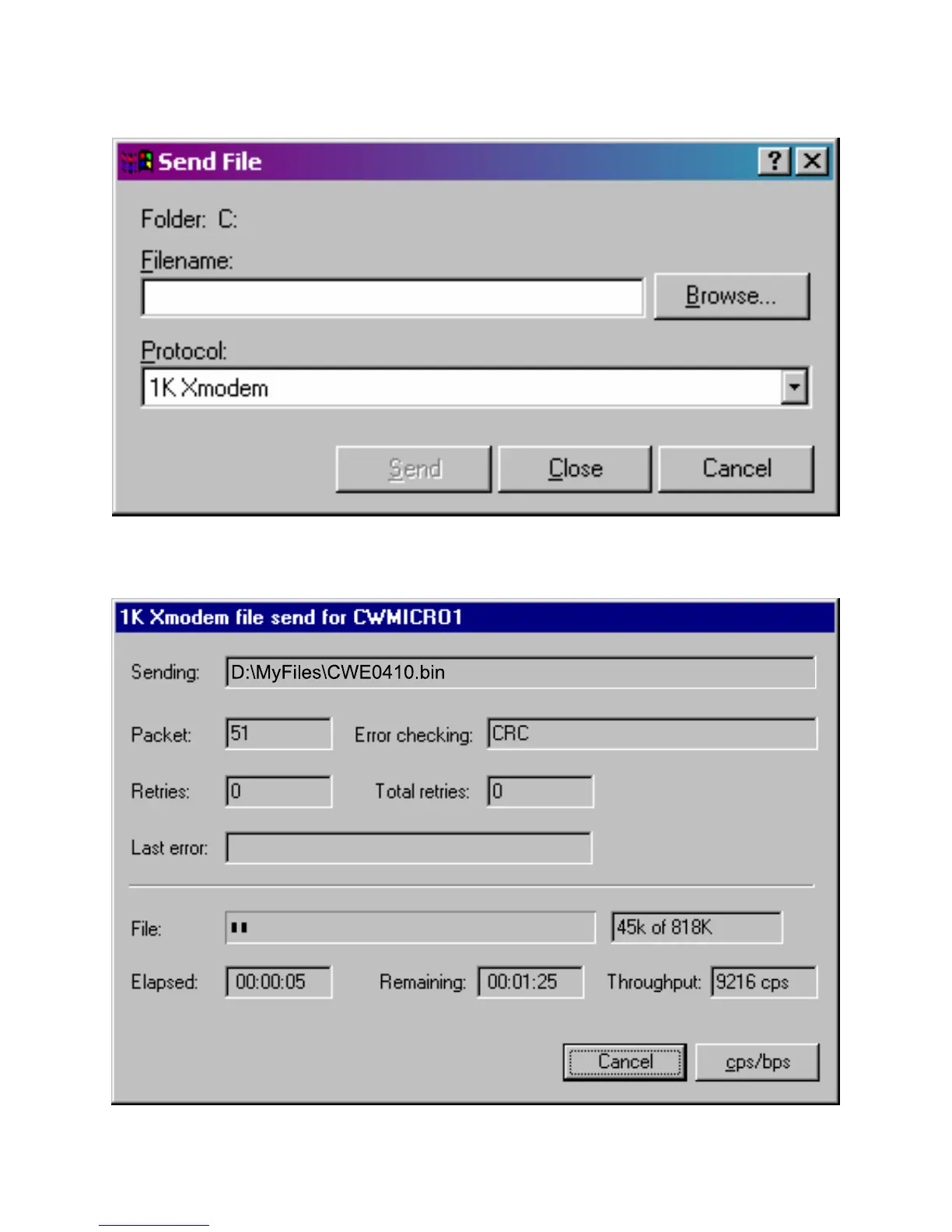

Figure 2-45 - HyperTerminal Flash Download
(Send File Dialog Box - Enter Filename)
Figure 2-46 - HyperTerminal FLASH Download (Download in Process)
