1592001440 XC645CX GB r3.4 31.10.2017.docx XC645CX 7/54

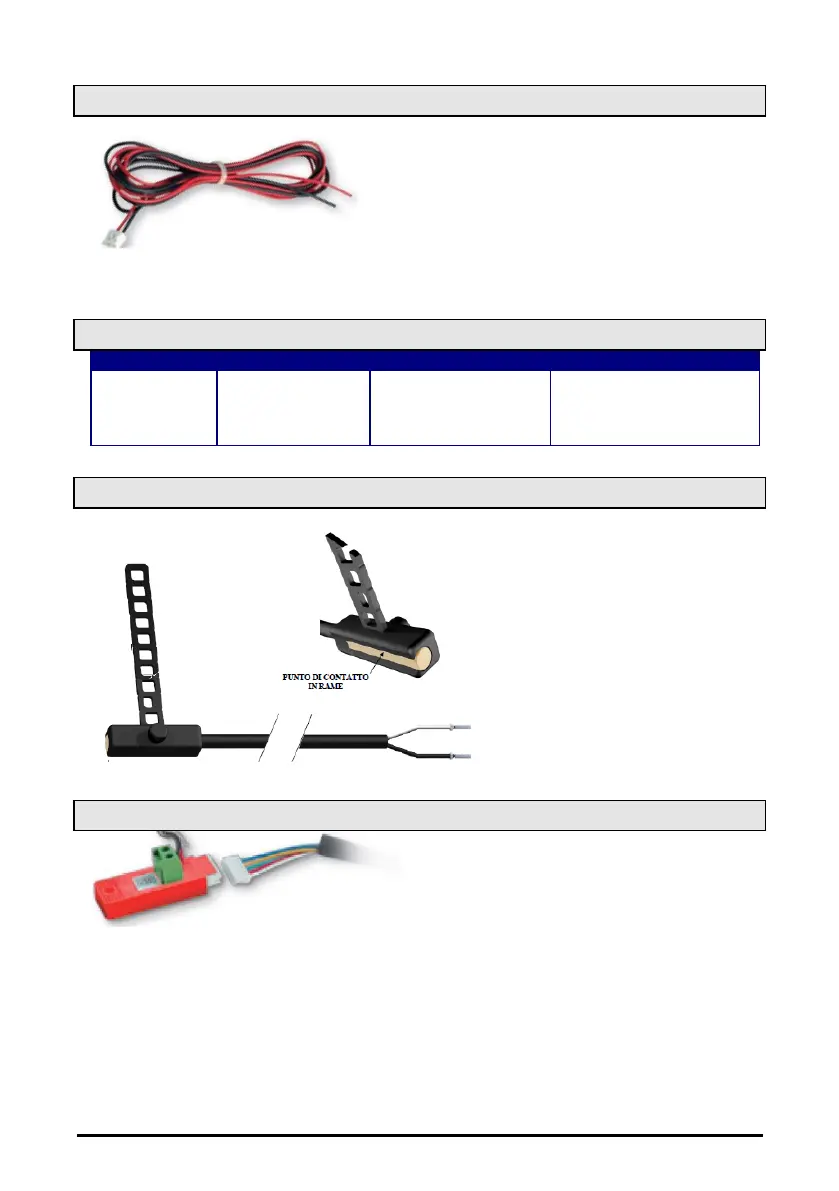

4.2 CABCJ15 or CABCJ30: 2 PIN connectors
NOTE:
Use the connection cable CABCJ15 (1.5m
lenght) or the CABCJ30 (3.0m lenght) for the:
- HP digital input (25-26),
- i2F configurable digital input (27-
28),
- 0-10Vdc or 4-20mA analogue
output (23-24)
- oA6, 12Vdc/40mA digital output (21-
22) :
4.3 PP07, PP11, PP30 PP50: 4÷20mA pressure transducers
NAME
CABLE LENGTH
RANGE
DIXELL CODE
PP07
2,0MT
-0,5+7 bar rel FE
BE009302 00
PP11
2,0MT
-0,5+11 bar rel FE
BE009302 07
PP30
2,0MT
0+30 bar rel FE
BE009302 04
PP50
2,0MT
0+50 bar rel FE
BE009302 05
4.4 NP4-67: pipe mounting temperature probe
The NP4-67 temperature probe
can be used on the discharge line
to monitor the discharge
temperature of the Digital Scroll
compressor.
NP4-67 1.5MT NTC probe
Measurement range: -40+110°C,
Cable 1,5mt
Code BN609001 52
4.5 XJ485CX: TTL / RS485 serial converter
The XJ485CX is a TTL/RS485 external
converter. Insert it into the TTL receptacle to
convert the TTL output into a RS485 (+) and (-)
signal for the monitoring system MODBUS_RTU
compatible. (XWEB).
