Emerson E2 Quick Start Guide

Document Part # 026-4950 Rev 0 08-OCT-2014 Page 9 of 14
©2014 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use.
Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.
3. After setting and saving the device address, press  to go to the Status screen.
4. Press
, ,to shift over to the Setpoints tab. Set values for Motor Voltage, Motor RPM
and Motor FLA from the motor plate of the device.

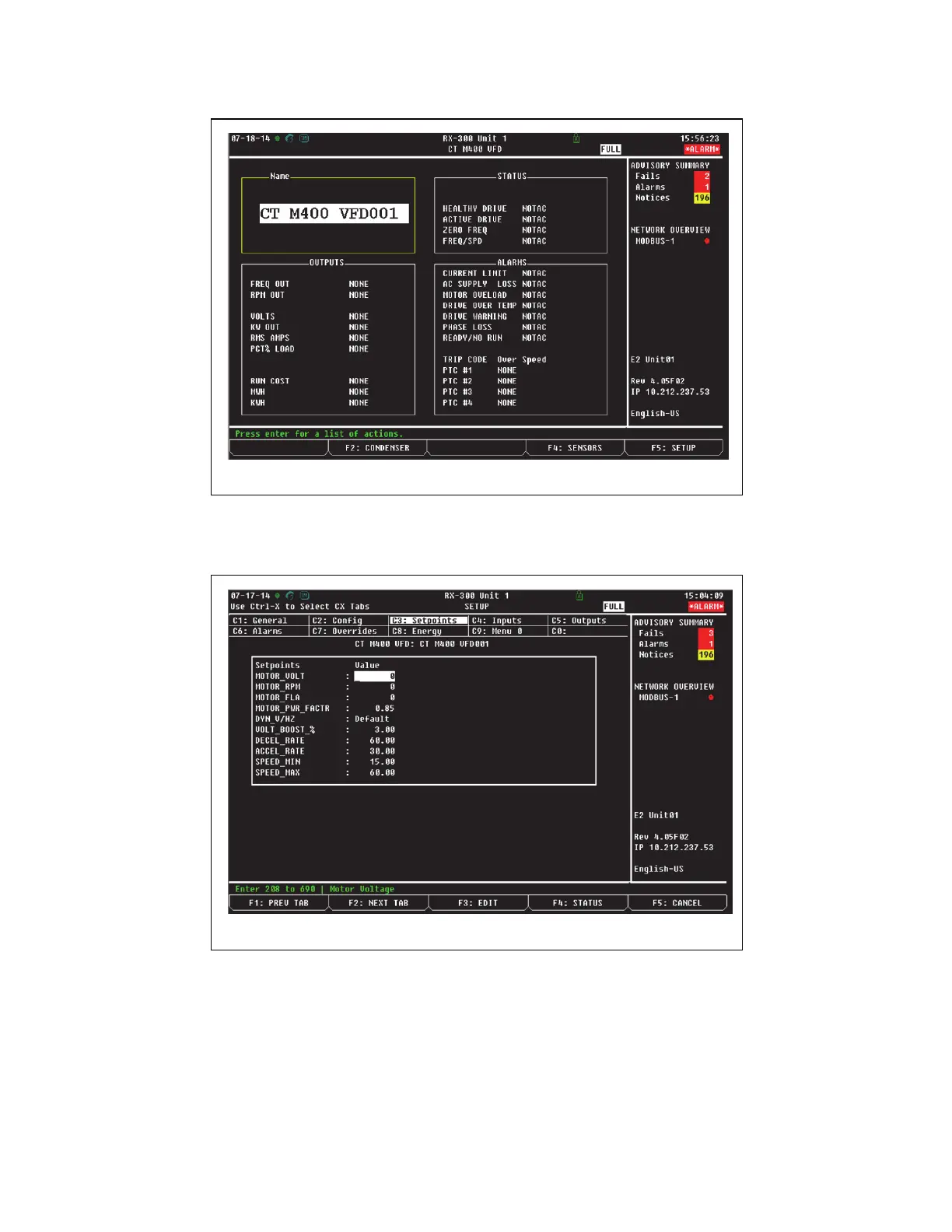

Figure 9 - Device Status Screen
Figure 10 - Setpoints Tab

Emerson E2 Specifications

General

Model	E2
Manufacturer	Emerson
Category	Controller
Power Supply	24 VAC/VDC
Communication Protocols	Ethernet
Output Type	Relay, Analog
Communication Protocol	Ethernet
Application	Refrigeration and HVAC system control
