Emerson E2 - 2.2.2.3 MultiFlex CUB; 2.2.2.4 MultiFlex RTU (BX and CX Only); 2.2.2.5 MultiFlex Rooftop Control Board (RCB) (BX and CX Only); 2.2.2.6 MultiFlex PAK Board

Document Part # 026-4950 Rev 0 08-OCT-2014 Page 10 of 14
©2014 Emerson Climate Technologies Retail Solutions, Inc. This document may be photocopied for personal use.
Visit our website at http://www.emersonclimate.com/ for the latest technical documentation and updates.
5. Press to go back to the Status screen. Connect device communications to the E2 controller,
then the device will appear Online.
6. Press
 to go to the Actions menu, then select  (Application Commands).

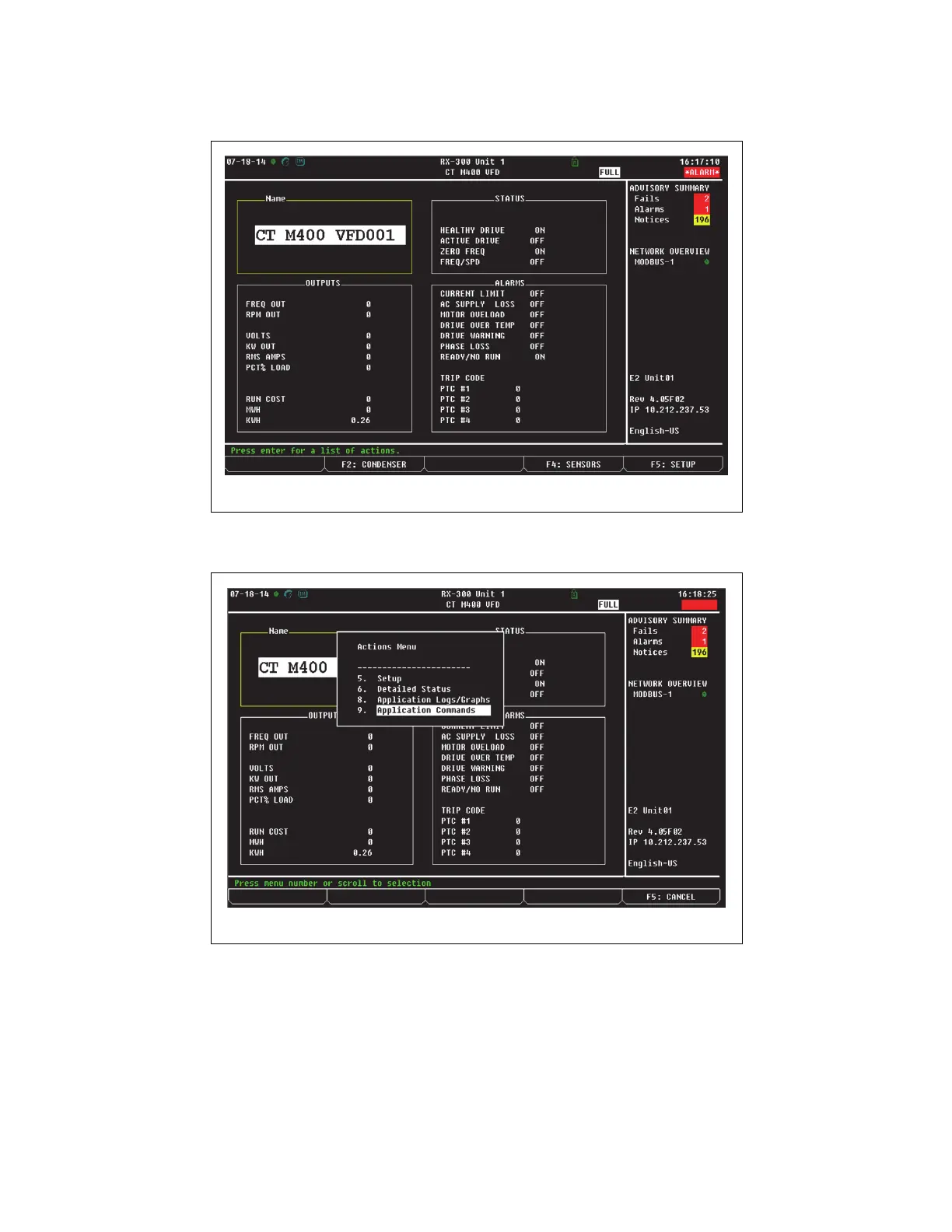

Figure 11 - M400 VFD Device Status
Figure 12 - Actions Menu
