7. Select  (Send E2 Cfg to Device), to send all information to the drive.
8. Press
 to go to the Actions menu, then select  (Application Commands),  (NUM_SAVE).
All parameter values are now saved in NVM (Memory).

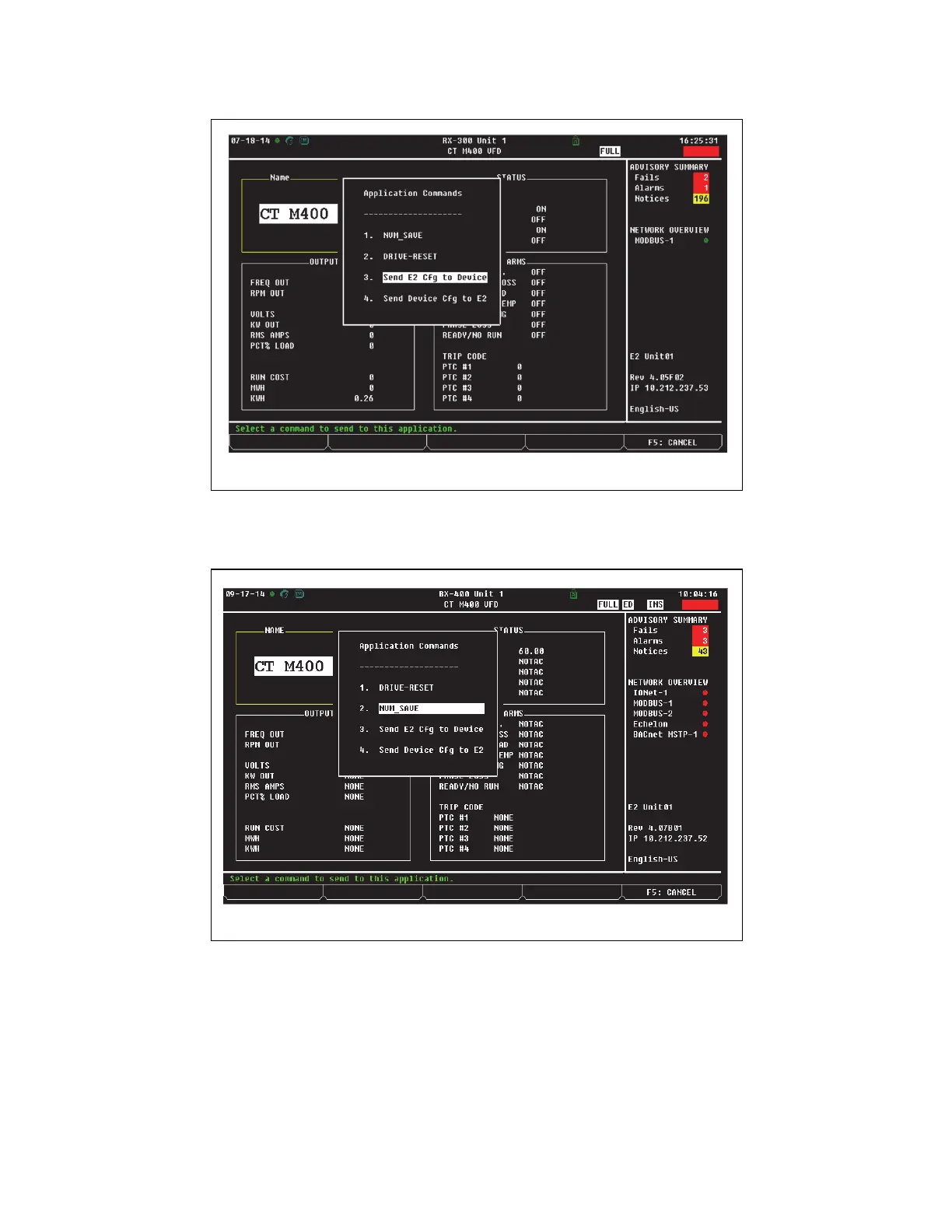

Figure 13 - Application Commands
Figure 14 - Application Commands - NUM_SAVE

Emerson E2 Specifications

General

Model	E2
Manufacturer	Emerson
Category	Controller
Power Supply	24 VAC/VDC
Communication Protocols	Ethernet
Output Type	Relay, Analog
Communication Protocol	Ethernet
Application	Refrigeration and HVAC system control
