9. Press to go to the Actions menu, then select (Application Commands),
(DRIVE-RESET). The drive is now reset with the needed configuration.
STEP 8: Verification of Settings
1. After commissioning the new device, verify that the following values are set in the drive:
• 0.009 (MOTOR_PWR_FACTOR) = 0.85 or the value that you set
• 6.004 (Start/Stop Logic) = 6
• 8.023 (Digital input 3) = 0.000
The following parameters must be set up in the Inputs tab to run the drive.
• DRIVE_SW_ENABLE (ON)
• DR_RUN_FWD (ON)
• REF_SPEED (The speed you want the motor to run)
Press , ,, to shift over to the Inputs tab.
Note: To enter values, press
(EDIT), (Alternate I/O Format).

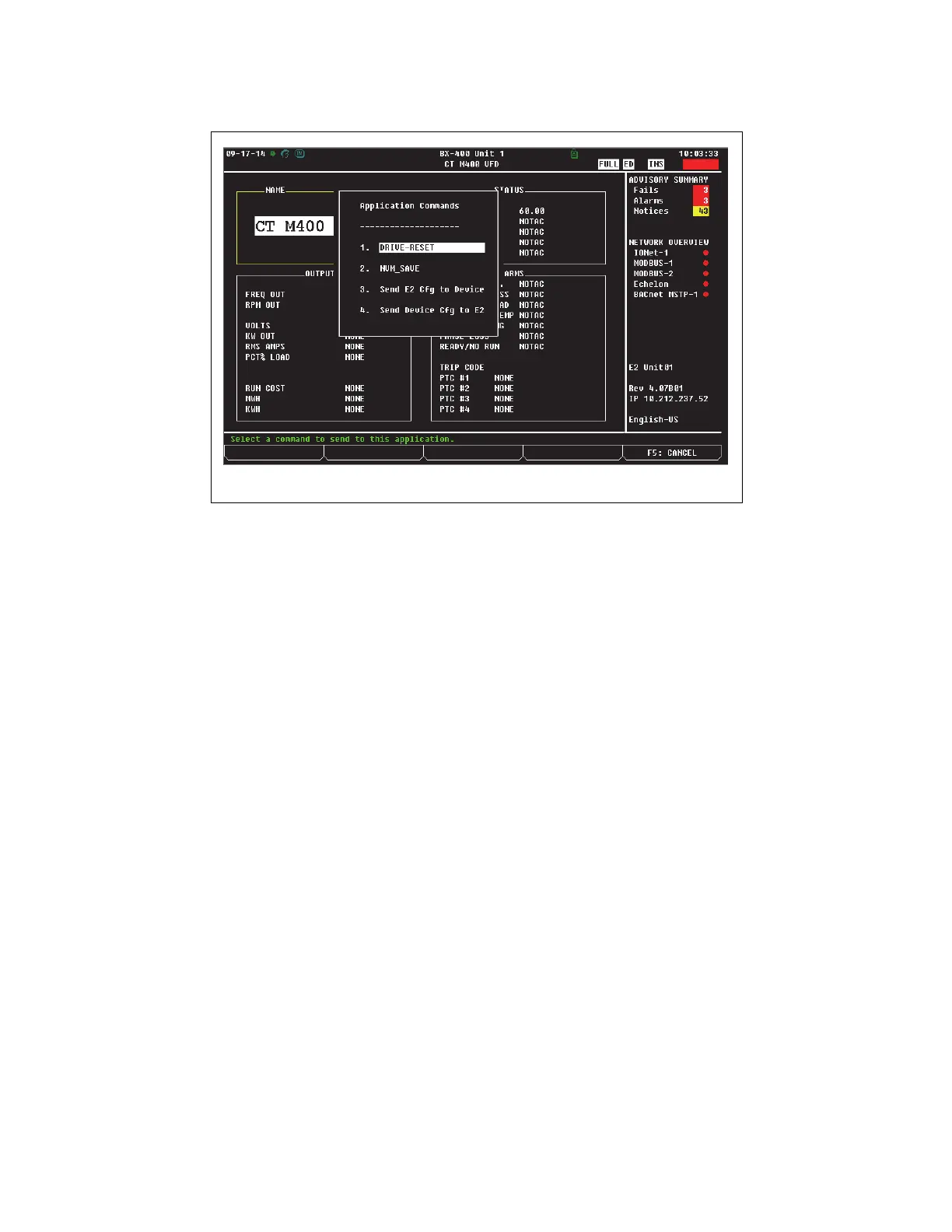

Figure 15 - Application Commands - DRIVE-RESET
