Emerson EWD2004OM Supplement Service Manual
4
of 1
of 1 rating
82 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
M1
M2
M3
N1
N2
N3
O1
O2
O3
P1
P2
P3
Q1
Q2
Q3
R1
R2
R3
M4
N4
O4
P
4
Q4
R4
PB A
UDIO SIGNAL
PB VIDEO SIGNAL
D
VD
VIDEO + PB VIDEO SIGNAL
REC A
UDIO SIGNAL
REC VIDEO SIGNAL

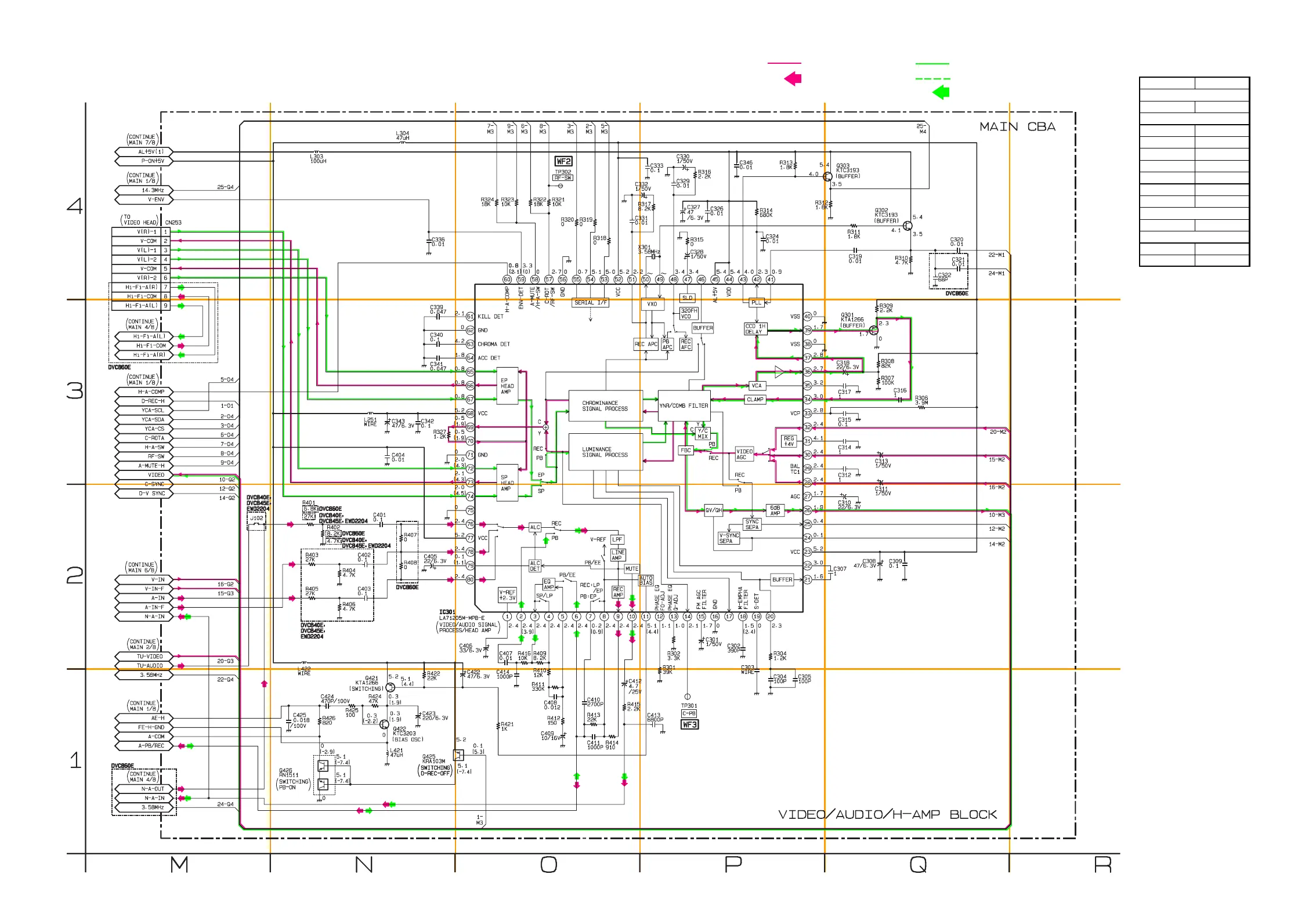

Main 3/8 Schematic Dia
gram <
VCR Section >
1-10-7
1-10-8
H9600SCM3
MA
IN 3
/8
Ref No.
P
os
i
t
i
on
IC3
01
O-
2
Q301
Q
-
3
Q302
Q
-
4
Q303
Q
-
4
Q421
N-
1
Q422
N-
1
Q425
N-
1
Q426
N-
1
CN253
M
-
4
TP
301
P
-
1
TP
302
O-
4
IC
CONNE
CT
OR
TR
AN
SIST
OR
S
TES
T P
OIN
TS
38
40
Table of Contents
Table of Contents
5
Specifications
6
Laser Beam Safety Precautions
8
Important Safety Precautions
9
Standard Notes for Servicing
11
Preparation for Servicing
15
Cabinet Disassembly Instructions
16
Electrical Adjustment Instructions
21
FIRMWARE Renewal Mode
22
Block Diagrams
24
Function Indicator Symbols
34
Schematic Diagrams / Cba's and Test Points
35
Waveforms
52
Wiring Diagram < VCR Section
54
Wiring Diagram < DVD Section
55
System Control Timing Charts
56
IC Pin Function Descriptions
62
Lead Identifications
65
Exploded Views
66
Mechanical Parts List
68
Electrical Parts List
69
